Missing Luci and WAN config

Installing and Using OpenWrt
1

Device: Linksys WHW01 v1 (Velop)
Flashiing way: 192.168.1.1/fwupdate.html
Firmware: openwrt-ipq40xx-generic-linksys_whw01-squashfs-factory.bin
SNAPSHOT (r28921-ce68f61cb6)

Problem: missing luci and WAN config

2

You have installed a snapshot image. Read the link for instructions how to install Luci, which is not installed by default in snapshots.
https://openwrt.org/faq/can_not_connect_via_webbrowser

Install 24.10.0 and that should fix the issue, unless you have a reason to use snapshot

This is expected because your device only has a single Ethernet port. You can change it to be a wan port after you've setup WiFi.

EDIT: actually, maybe it has 2 ports? If so, wan should be setup by default, but first install the release build and then we can check the status.

1 Like
3

Thanks, now accessing the Luci.

1 Like
4

Yes, there are two ports. Could you tell me how should I do to create wan?

root@OpenWrt:~# ifconfig
br-lan    Link encap:Ethernet
          inet addr:192.168.26.1  Bcast:192.168.26.255  Mask:255.255.255.0
          inet6 addr: fe80::ea9f:80ff:fef5:36d6/64 Scope:Link
          inet6 addr: fd5c:30eb:3d9e::1/60 Scope:Global
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

eth0      Link encap:Ethernet
          inet6 addr: fe80::ea9f:80ff:fef5:36d6/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

eth1      Link encap:Ethernet
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

eth2      Link encap:Ethernet
          UP BROADCAST MULTICAST  MTU:1500  Metric:1

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1

phy1-ap0  Link encap:Ethernet
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

1
11213×518 25 KB

5
  • Remove preferred PHY from br-lan
  • Create an interface named WAN as DHCP Client
  • Add PHY
  • Add to WAN firewall zone (create)
  • In firewall, Allow forwarding from LAN to WAN zone
  • Set WAN zone as Input and Forwarding Reject - Output Accept

I believe that covers the basics.

(Additionally, you can create a WAN6 as DHCPv6 Client as well - added to the same firewall zone.)

6

Or simply reset ?

2 Likes
7

There is no WAN interface when I first flashed the openwrt firmware. I'm not sure if WAN will appear after reset?

8

It should.
If there's more than one ethernet port, one will be WAN, the other LAN.

9

Pardon, I don't understand, does it mean to delete the original LAN interface?

10

Move the wan port from br-lan to wan firewall zone.

11

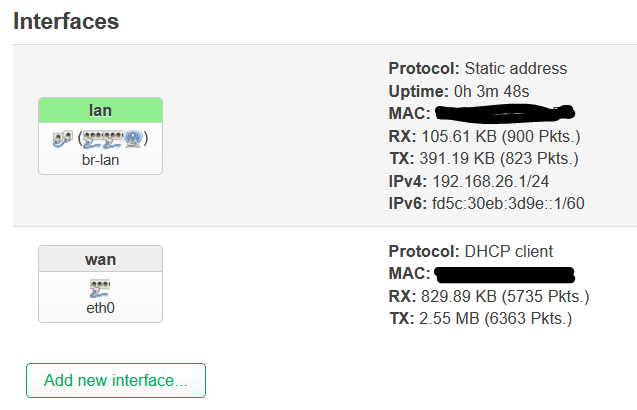

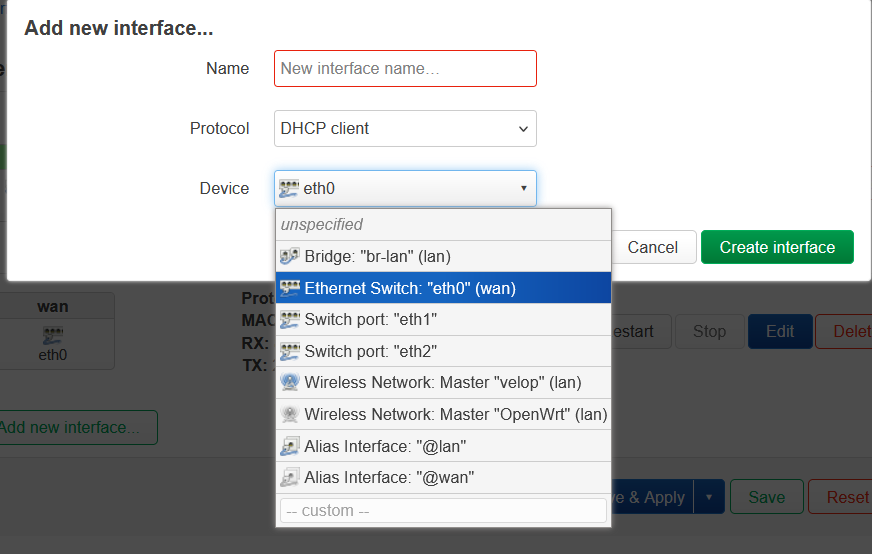

Before I remove and add PHY, just add wan, it did not get IPv4

1
1872×554 37.1 KB

12

2
2637×410 16.3 KB

13

You had wan in both wan and br-lan ?

That's also a no go.

Now your wan is in the wrong firewall zone.

1 Like
14

Did you do this?

15

Velop has two ports. By default, eth1 and eth2 are included in br-lan, so openwrt does not allocate the wan interface. Maybe what I have to do now is to adjust br-lan and specify a port?

16

That would be very non-standard, but I'm not going do dig into the PR to find out how the image is set up.

1 Like
