ME909s-120 modemmanager persistent device path and sleep

stretch · November 19, 2024, 7:03pm

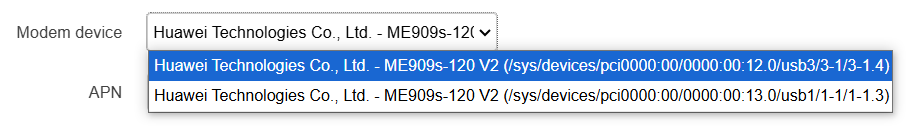

I have a PCengines APU with 2 ME909s-120 cards on the trouble is after nearly every reboot i have to change the "modem device" in the interfaces section. Is there a way to make them persistent?

Also i understand these modems need a sleep to initialise fully/correctly before everything else starts does anyone have any experience of this and where to set it?

AndrewZ · November 19, 2024, 7:35pm

Please show the output of cat /sys/kernel/debug/usb/devices

stretch · November 19, 2024, 7:48pm

T:  Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 2
B:  Alloc=  0/800 us ( 0%), #Int=  2, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 6.06
S:  Manufacturer=Linux 6.6.50 ehci_hcd
S:  Product=EHCI Host Controller
S:  SerialNumber=0000:00:13.0
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=480  MxCh= 4
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=0438 ProdID=7900 Rev= 0.18
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=100mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   1 Ivl=256ms

T:  Bus=01 Lev=02 Prnt=02 Port=02 Cnt=01 Dev#=  3 Spd=480  MxCh= 0
D:  Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=ff MxPS=64 #Cfgs=  3
P:  Vendor=12d1 ProdID=15c1 Rev= 1.02
S:  Manufacturer=Huawei Technologies Co., Ltd.
S:  Product=HUAWEI Mobile V7R11
S:  SerialNumber=0123456789ABCDEF
C:  #Ifs= 6 Cfg#= 1 Atr=a0 MxPwr=  2mA
I:  If#= 0 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=06 Prot=10 Driver=
E:  Ad=82(I) Atr=03(Int.) MxPS=  10 Ivl=32ms
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 1 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=13 Driver=
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 2 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=12 Driver=
E:  Ad=84(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 3 Alt= 0 #EPs= 1 Cls=ff(vend.) Sub=06 Prot=16 Driver=
E:  Ad=86(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
I:  If#= 3 Alt= 1 #EPs= 3 Cls=ff(vend.) Sub=06 Prot=16 Driver=
E:  Ad=86(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 4 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=06 Driver=
E:  Ad=87(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=1b Driver=
E:  Ad=88(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=06(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
C:* #Ifs= 7 Cfg#= 2 Atr=a0 MxPwr=  2mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=06 Prot=00 Driver=(none)
E:  Ad=82(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
I:* If#= 1 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=06 Prot=00 Driver=(none)
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 2 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=06 Prot=10 Driver=option
E:  Ad=84(I) Atr=03(Int.) MxPS=  10 Ivl=32ms
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 3 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=13 Driver=option
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 4 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=12 Driver=option
E:  Ad=86(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=06 Driver=option
E:  Ad=87(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 6 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=1b Driver=option
E:  Ad=88(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=06(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
C:  #Ifs= 2 Cfg#= 3 Atr=a0 MxPwr=  2mA
A:  FirstIf#= 0 IfCount= 2 Cls=02(comm.) Sub=0e Prot=00
I:  If#= 0 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=0e Prot=00 Driver=
E:  Ad=82(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
I:  If#= 1 Alt= 0 #EPs= 0 Cls=0a(data ) Sub=00 Prot=02 Driver=
I:  If#= 1 Alt= 1 #EPs= 2 Cls=0a(data ) Sub=00 Prot=02 Driver=
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms

T:  Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 2
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 6.06
S:  Manufacturer=Linux 6.6.50 xhci-hcd
S:  Product=xHCI Host Controller
S:  SerialNumber=0000:00:10.0
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=03 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 2
B:  Alloc=  0/800 us ( 0%), #Int=  2, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 6.06
S:  Manufacturer=Linux 6.6.50 ehci_hcd
S:  Product=EHCI Host Controller
S:  SerialNumber=0000:00:12.0
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=03 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=480  MxCh= 4
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=0438 ProdID=7900 Rev= 0.18
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=100mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   1 Ivl=256ms

T:  Bus=03 Lev=02 Prnt=02 Port=03 Cnt=01 Dev#=  3 Spd=480  MxCh= 0
D:  Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=ff MxPS=64 #Cfgs=  3
P:  Vendor=12d1 ProdID=15c1 Rev= 1.02
S:  Manufacturer=Huawei Technologies Co., Ltd.
S:  Product=HUAWEI Mobile V7R11
S:  SerialNumber=0123456789ABCDEF
C:  #Ifs= 6 Cfg#= 1 Atr=a0 MxPwr=  2mA
I:  If#= 0 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=06 Prot=10 Driver=
E:  Ad=82(I) Atr=03(Int.) MxPS=  10 Ivl=32ms
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 1 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=13 Driver=
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 2 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=12 Driver=
E:  Ad=84(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 3 Alt= 0 #EPs= 1 Cls=ff(vend.) Sub=06 Prot=16 Driver=
E:  Ad=86(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
I:  If#= 3 Alt= 1 #EPs= 3 Cls=ff(vend.) Sub=06 Prot=16 Driver=
E:  Ad=86(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 4 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=06 Driver=
E:  Ad=87(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:  If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=1b Driver=
E:  Ad=88(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=06(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
C:* #Ifs= 7 Cfg#= 2 Atr=a0 MxPwr=  2mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=06 Prot=00 Driver=(none)
E:  Ad=82(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
I:* If#= 1 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=06 Prot=00 Driver=(none)
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 2 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=06 Prot=10 Driver=option
E:  Ad=84(I) Atr=03(Int.) MxPS=  10 Ivl=32ms
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 3 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=13 Driver=option
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 4 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=12 Driver=option
E:  Ad=86(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=06 Driver=option
E:  Ad=87(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 6 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=06 Prot=1b Driver=option
E:  Ad=88(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=06(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
C:  #Ifs= 2 Cfg#= 3 Atr=a0 MxPwr=  2mA
A:  FirstIf#= 0 IfCount= 2 Cls=02(comm.) Sub=0e Prot=00
I:  If#= 0 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=0e Prot=00 Driver=
E:  Ad=82(I) Atr=03(Int.) MxPS=  16 Ivl=2ms
I:  If#= 1 Alt= 0 #EPs= 0 Cls=0a(data ) Sub=00 Prot=02 Driver=
I:  If#= 1 Alt= 1 #EPs= 2 Cls=0a(data ) Sub=00 Prot=02 Driver=
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms

T:  Bus=04 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=5000 MxCh= 2
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 3.00 Cls=09(hub  ) Sub=00 Prot=03 MxPS= 9 #Cfgs=  1
P:  Vendor=1d6b ProdID=0003 Rev= 6.06
S:  Manufacturer=Linux 6.6.50 xhci-hcd
S:  Product=xHCI Host Controller
S:  SerialNumber=0000:00:10.0
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

AndrewZ · November 19, 2024, 8:03pm

I would use them without MM as shown here
https://openwrt.org/docs/guide-user/network/wan/wwan/ethernetoverusb_cdc

or, after switching to Cfg#= 3, as shown here
https://openwrt.org/docs/guide-user/network/wan/wwan/ltedongle
