Logread | VTU member violation for vid 1, source port 1

I have some kern.err entries in my log (logread) that I don't understand.
Can someone tell me exactly what these errors mean and how to fix them.
The Google search did not bring any result that I could understand.

Mon Nov 22 20:23:00 2021 kern.err kernel: [ 2634.635582] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:23:10 2021 kern.err kernel: [ 2644.715466] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:23:20 2021 kern.err kernel: [ 2654.605347] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:23:30 2021 kern.err kernel: [ 2664.685242] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:23:40 2021 kern.err kernel: [ 2674.645128] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:23:47 2021 kern.err kernel: [ 2680.805060] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:23:50 2021 kern.err kernel: [ 2684.655018] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:00 2021 kern.err kernel: [ 2694.664904] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:10 2021 kern.err kernel: [ 2704.674749] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:20 2021 kern.err kernel: [ 2714.684602] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:30 2021 kern.err kernel: [ 2724.704456] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:40 2021 kern.err kernel: [ 2734.624314] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:46 2021 kern.err kernel: [ 2740.774232] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:24:50 2021 kern.err kernel: [ 2744.644173] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1
Mon Nov 22 20:25:00 2021 kern.err kernel: [ 2754.654043] mv88e6085 f1072004.mdio-mii:00: VTU member violation for vid 1, source port 1

Here are links to my full config files:
/etc/config/network
/etc/config/wireless

Regards,
Ronny

please post output of

root@OpenWrt:~# ubus call system board

root@OpenWrt:~# ubus call system board
{
        "kernel": "5.4.154",
        "hostname": "OpenWrt",
        "system": "ARMv7 Processor rev 1 (v7l)",
        "model": "Linksys WRT1900ACS",
        "board_name": "linksys,wrt1900acs",
        "release": {
                "distribution": "OpenWrt",
                "version": "21.02.1",
                "revision": "r16325-88151b8303",
                "target": "mvebu/cortexa9",
                "description": "OpenWrt 21.02.1 r16325-88151b8303"
        }
}
root@OpenWrt:~#

Are you using VLAN tagging with DSA?

Did you check the DSA tutorial on the wiki?

Yes, I use VLAN tagging with DSA and checked the DSA tutorial before I've done this.

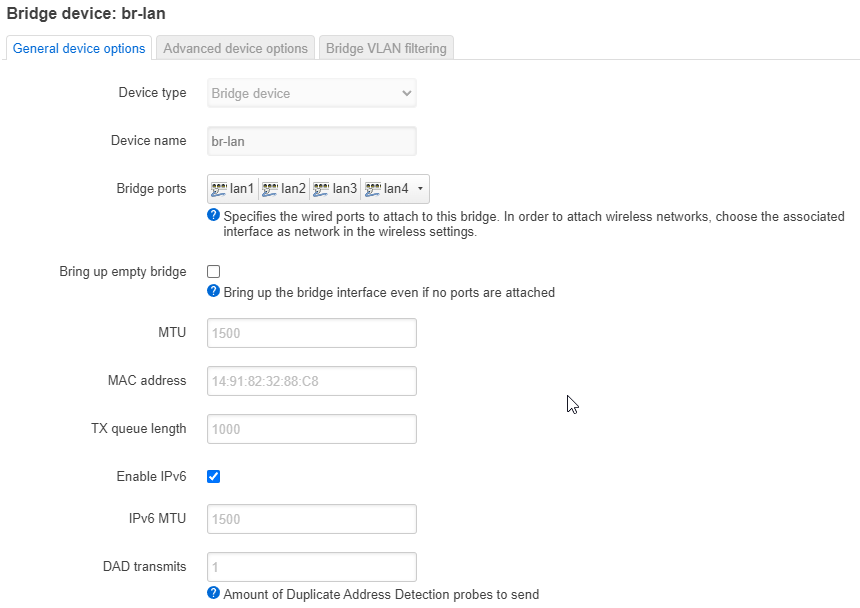

See the 3 pics attaced below.

This is just a guess, but it might be worth checking.

This error is specific to Marvell 88E6xxx compatible switch chips and it occurs when the incoming frame’s VID is available in the VTU (VLAN Translation Unit), but the source port of the frame is not a member of the frame’s VLAN.

You didn't set the PVID on lan4.

If (and it’s a very big if) the port numbers are reversed and port 1 corresponds to lan4, you should check what VID is assigned to the untagged traffic, coming through lan4.

Install tcpdump, run tcpdump -ennqty lan4 and look for the packet's assigned VID.

It's not much, but it's a start...
