IPv4 DHCP not working with Guest WiFi

Installing and Using OpenWrt
1

I tried setting up Guest WiFi by following:
https://openwrt.org/docs/guide-user/network/wifi/guestwifi/configuration_webinterface

The issue is that I am not getting IPv4 address. If I manually configure IPv4 it seems to work all right, so this is probably some DHCP issues.

Interestingly IPv6 works all right I am getting both types of addresses: locally generated random addresses but also DHCPv6 addresses (chosen suffix).
I just had to set IPv6 DNS servers, but I want to do that anyway for Guest WiFi.

Any ideas?
I will provide further info if you tell me what it is.

2

I even tried to "accept input" on guest zone just to be sure FW is not blocking DHCP, still no success.

3

It turned out I did not have DHCP listening on the newly created guest interface.

4

I am surprised it cannot be set to "any interface" ( 0.0.0.0,:: ) the same way as dropbear is.

5

Is this my bad or is the Guest WiFi recipe incomplete/not-up-to-date?

6

The guide was recreated a month ago.
Post the result of uci show dhcp and cat /tmp/etc/dnsmasq*

7

I think the relevant part of uci show dhcp is:

dhcp.@dnsmasq[0].interface='guest' 'lan' 'wg'

I just added guest there (via LuCI) and it seems to fix the issue.

What is the default value for dhcp.@dnsmasq[0].interface ?

8

It's possible I changed it some time ago, which could be causing the troubles.

9

By default, dnsmasq should listen on all interfaces.
The interface option is most likely set by you.
To be sure, check the default configuration.

cat /rom/etc/config/dhcp
10
config dnsmasq
	option domainneeded	1
	option boguspriv	1
	option filterwin2k	0  # enable for dial on demand
	option localise_queries	1
	option rebind_protection 1  # disable if upstream must serve RFC1918 addresses
	option rebind_localhost 1  # enable for RBL checking and similar services
	#list rebind_domain example.lan  # whitelist RFC1918 responses for domains
	option local	'/lan/'
	option domain	'lan'
	option expandhosts	1
	option nonegcache	0
	option cachesize	1000
	option authoritative	1
	option readethers	1
	option leasefile	'/tmp/dhcp.leases'
	option resolvfile	'/tmp/resolv.conf.d/resolv.conf.auto'
	#list server		'/mycompany.local/1.2.3.4'
	option nonwildcard	1 # bind to & keep track of interfaces
	#list interface		br-lan
	#list notinterface	lo
	#list bogusnxdomain     '64.94.110.11'
	option localservice	1  # disable to allow DNS requests from non-local subnets
	option ednspacket_max	1232
	option filter_aaaa	0
	option filter_a		0
	#list addnmount		/some/path # read-only mount path to expose it to dnsmasq

config dhcp lan
	option interface	lan
	option start 	100
	option limit	150
	option leasetime	12h

config dhcp wan
	option interface	wan
	option ignore	1
11

It's quite possible that stupider past me would deliberately limit interfaces not realizing that it should be protected by FW.

12

I think I latter tried to set it to any ( 0.0.0.0, :: ) but in LuCi there is not such an option.

13

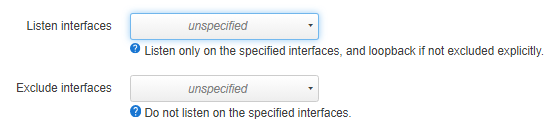

Uncheck all the selected interfaces and make it look like this.


14

Yes, this seems to work!

15

So my bad after all.

16

At first I was probably confused because SSH drop-down has explicit "unspecified" option.

17

Thank you for helping me with this!

1 Like
18

Summary for posterity:

The wiki recipe for Guest WiFi is probably correct.

My issue was that in the past I explicitly listed interfaces on which DHCP/DNS is listening. I did that so my DNS server does reply even to request from outside lan interface. However I forgot to add the new guest iface to that enumeration so DHCP did not work.

One of the possible solutions to this issue of mine is to not enumerate ifaces -- just leave it "unspecified" and tic-out "Local service only".

While the Guest WiFi recipe is all right there is one possible improvement: IPv6 enablement.

Steps:

  • In guest interface advanced settings enable IPv6 PD and select prefix length (e.g. /64 since most likely there won't sub-networking in guest net).
  • Under "DHCP->IPv6 Settings" set RA-Service and DHCPv6-Service to Server Mode.
  • Under "DHCP->IPv6 RA Settings->RA Flags" add Managed Config mode.
  • In FW allow ICMP to router (at least for IPv6) from guest zone.
  • In FW allow UDP 547 to router from guest zone.

This enables both auto-config and DHCP IPv6. If we wanted only autoconfig it would be slightly easier (but I did not tested that!):

  • In guest interface advanced settings enable IPv6 PD and select prefix length (e.g. /64 since most likely there won't sub-networking in guest net).
  • Under "DHCP->IPv6 Settings" set RA-Service to Server Mode.
  • In FW allow ICMP to router (at least for IPv6) from guest zone.

cc @pavelgl
