Yep, stock firmware has identical MACs for WAN and LAN so no worries there.
1 Like
works well on the B3000.
great work g !
1 Like
Works well on the MX5500-CN.（4 bit GigaDevice）
Great work georgem83 ! Thanks!
Hello!
I've tried to install it on Xiaomi AX6000. I did the following:
- Using xmir-patcher I've installed openwrt-qualcommax-ipq50xx-xiaomi_ax6000-initramfs-factory.ubi.
- Using updated web interface, I've installed openwrt-qualcommax-ipq50xx-xiaomi_ax6000-squashfs-sysupgrade.bin.
Issues I have at the moment:
- Message "System running in recovery (initramfs) mode." being kept no matter, how many times I'm installing squashfs-sysupgrade.bin. I've just tried latest version (uploaded to Filebin 22 minutes ago).
- There is nothing about WiFi. No WiFi settings at all. Only br-lan, wan, eth0-3 in devices list.
Could you please give me some advice - what I did wrong? Or what can I do to solve problems mentioned above?
wrong thread, will reply in the other one for AX6000 support
SPNMX55CF-UK

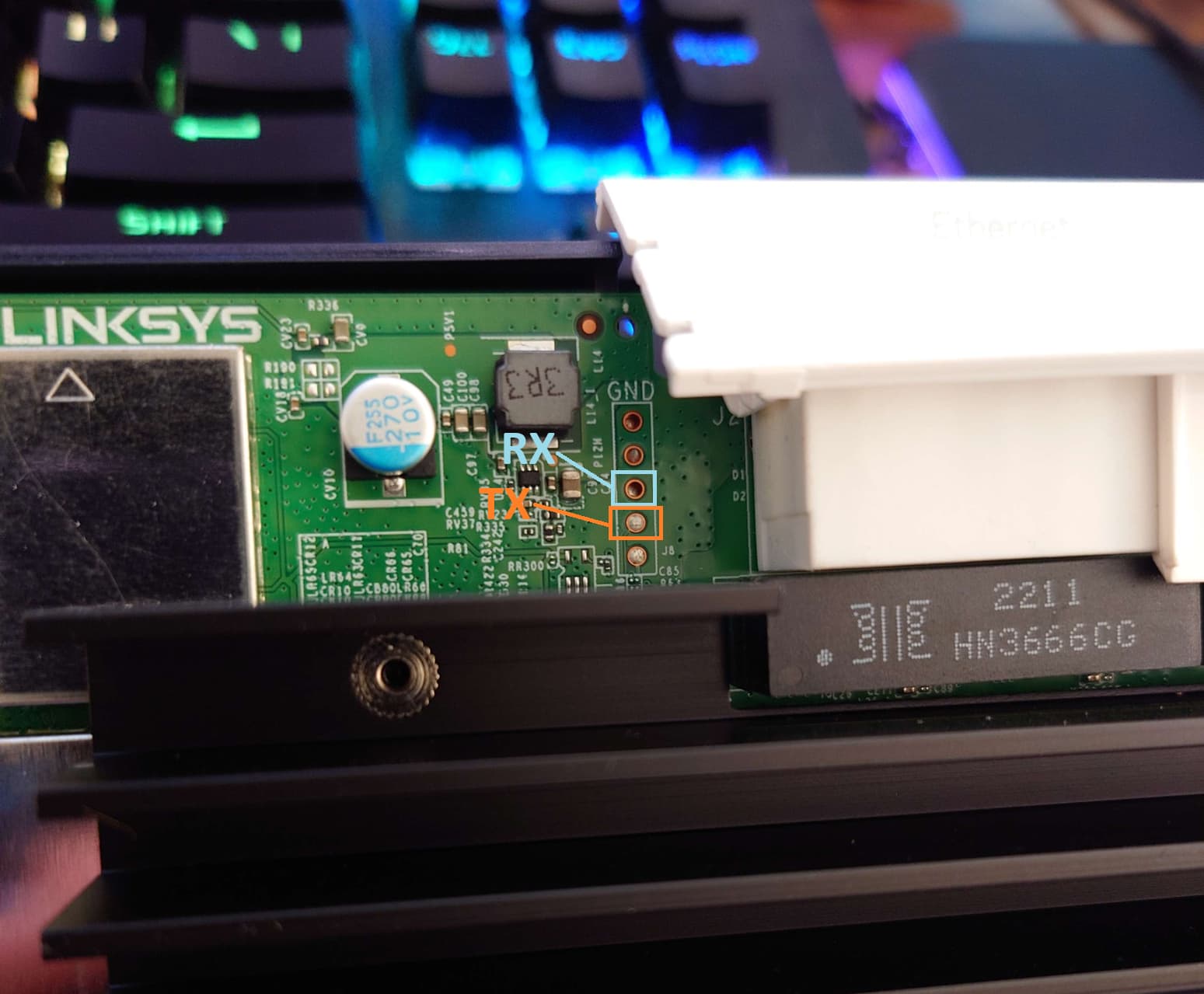

Would this be correct? Seems odd there would be solder in 1 hole and not the other..
On the back of the board, solder is present in 1-5, on the front it's only 4-5
I think so, I checked the pics of when mine was connected and I was using
gnd, blank, used, used , used so the last are tx, rx and 3.3v and 3.3v should be easy to measure with a dvm.
Worst case connect it and see and if its wrong swap tx <> rx
Also tested on two SPNMX55CF (Gigaclear UK) and works great.
1 Like
