How to create this?

psherman · January 31, 2024, 12:18am

Yes... you should have been making those changes while connected to wifi (this means setting the country code, SSID name, security type, passphrase, and enabling the radios).

00wcente00 · January 31, 2024, 12:29am

The network of the Wifi should be Lan?

psherman · January 31, 2024, 12:33am

yes. You don't need to edit the wifi network except for the SSID and security.

00wcente00 · January 31, 2024, 1:02am

Hmm it doenst get Internet from The First Router,,, there should it have normally 192.168.178.25, but he should get it automatic via DHCP as a Client

psherman · January 31, 2024, 1:05am

Did the device obtain an ip address?

00wcente00 · January 31, 2024, 1:11am

Internet Router Fritz Box 7590 said no

psherman · January 31, 2024, 1:13am

Is the Ethernet port making a physical link? A led should light up if it is.

00wcente00 · January 31, 2024, 1:15am

00wcente00 · January 31, 2024, 1:16am

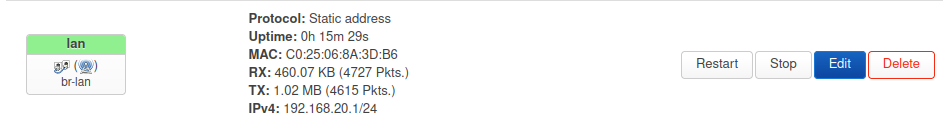

But i wat that Protocoll as DHCP Client. And all Joining WIFI Clients should be in 192.168.20.XXX

psherman · January 31, 2024, 1:18am

The lan looks correct. Your WiFi clients should get an address in that subnet.

00wcente00 · January 31, 2024, 1:19am

But i think it will try to enter the Main Router (7590) with that IP Adress 192.168.20.1 instead of 192.168.178.25 given via DHCP

psherman · January 31, 2024, 1:20am

The openwrt router should have a wan with nat masquerading enabled. That will create a separate network behind the openwrt device. Openwrt will then route those clients via the wan.

00wcente00 · January 31, 2024, 1:24am

i was looking again .. in Main Router 7590 i cant find the OpenWRT online, and when i join it via wifi i have no connection

psherman · January 31, 2024, 1:25am

You never answered this:

Let's see the configs:

Please use the "Preformatted text </>" button for logs, scripts, configs and general console output.

Please edit your post accordingly. Thank you!

00wcente00 · January 31, 2024, 1:26am

they dont have a light not at the Port or anywhere else which config? the same?

psherman · January 31, 2024, 1:29am

The configs (complete) from the 7320.

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall

00wcente00 · January 31, 2024, 1:31am

root@OpenWrt:~# ubus call system board
{
	"kernel": "5.15.134",
	"hostname": "OpenWrt",
	"system": "AR9 rev 1.2",
	"model": "AVM FRITZ!Box 7320",
	"board_name": "avm,fritz7320",
	"rootfs_type": "squashfs",
	"release": {
		"distribution": "OpenWrt",
		"version": "23.05.0",
		"revision": "r23497-6637af95aa",
		"target": "lantiq/xway",
		"description": "OpenWrt 23.05.0 r23497-6637af95aa"
	}
}
root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd74:0ff2:d583::/48'

config atm-bridge 'atm'
	option vpi '1'
	option vci '32'
	option encaps 'llc'
	option payload 'bridged'
	option nameprefix 'dsl'

config dsl 'dsl'
	option annex 'b'
	option firmware '/lib/firmware/adsl.bin'

config device
	option name 'br-lan'
	option type 'bridge'
	option bridge_empty '1'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.20.1'
	option netmask '255.255.255.0'

config device
	option name 'dsl0'
	option macaddr 'c0:25:06:8a:3d:b7'

config interface 'wan'
	option device 'eth0'
	option proto 'dhcp'

config interface 'wan6'
	option device '@wan'
	option proto 'dhcpv6'
root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
	option type 'mac80211'
	option path 'pci0000:00/0000:00:0e.0'
	option channel '1'
	option band '2g'
	option htmode 'HT20'
	option country 'DE'
	option cell_density '0'

config wifi-iface 'default_radio0'
	option device 'radio0'
	option network 'lan'
	option mode 'ap'
	option ssid 'OpenWrt'
	option encryption 'none'

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
	option domainneeded '1'
	option boguspriv '1'
	option filterwin2k '0'
	option localise_queries '1'
	option rebind_protection '1'
	option rebind_localhost '1'
	option local '/lan/'
	option domain 'lan'
	option expandhosts '1'
	option nonegcache '0'
	option cachesize '1000'
	option authoritative '1'
	option readethers '1'
	option leasefile '/tmp/dhcp.leases'
	option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
	option nonwildcard '1'
	option localservice '1'
	option ednspacket_max '1232'
	option filter_aaaa '0'
	option filter_a '0'

config dhcp 'lan'
	option interface 'lan'
	option start '100'
	option limit '150'
	option leasetime '12h'
	option dhcpv4 'server'
	option dhcpv6 'server'
	option ra 'server'
	option ra_slaac '1'
	list ra_flags 'managed-config'
	list ra_flags 'other-config'

config dhcp 'wan'
	option interface 'wan'
	option ignore '1'

config odhcpd 'odhcpd'
	option maindhcp '0'
	option leasefile '/tmp/hosts/odhcpd'
	option leasetrigger '/usr/sbin/odhcpd-update'
	option loglevel '4'

root@OpenWrt:~# cat /etc/config/firewall

config defaults
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'

config zone
	option name 'lan'
	list network 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	option masq '1'

config zone
	option name 'wan'
	list network 'wan'
	list network 'wan6'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

root@OpenWrt:~#

psherman · January 31, 2024, 1:33am

masquerading should be disabled on the lan zone... remove the last line:

Other than that, everything looks correct here.

00wcente00 · January 31, 2024, 1:36am

did but doesnt work ...

root@OpenWrt:~# cat /etc/config/firewall

config defaults
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'

config zone
	option name 'lan'
	list network 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	option masq '0'

config zone
	option name 'wan'
	list network 'wan'
	list network 'wan6'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

psherman · January 31, 2024, 1:38am

Plug a computer into the 7590's ethernet port... does it get an IP via DHCP? (use the same cable and physical port as you're using for your 7320)
