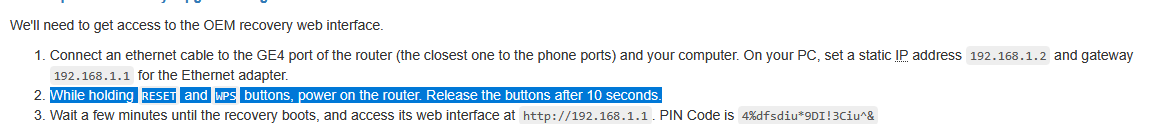

I tried many times while holding these buttons but its not working . im i missing smthn or one of them is broken
Arcadyan VRV9510KWAC23
Check second and 3rd picture in internal pic gallery here https://www.redeszone.net/analisis/routers/livebox-next/ to see the reset button.
You need to use something like very sharp pen and really check that it presses and releases the button.
1 Like
when i click it and it’s one it does reset so the reset button is working should hold that WPS/DECT too ???
not working i have 1-A-LT board
more or less switch power off, pin reset, hold wps and press power or plug power
still nothing
Search around redeszone guifi etc - maybe buttons got re-wired for later hardware revisions….
Target device
Model: Arcadyan VRV9510KWAC23 WIKI https://openwrt.org/toh/arcadyan/vrv9510kwac23
SoC: Lantiq VRX288 v1.2 (dual-core MIPS 34Kc)
RAM: 256 MiB
NAND: Macronix MX30LF1GE8AB 128 MiB
OpenWrt version
All versions available
Boot process
Device boots from NAND with custom U-Boot (u-boot.ltq.lzo.nandspl).
Kernel image (rescue.bin, initramfs) loads correctly over TFTP.
Both CPUs are detected:
[ 0.107137] smp: Bringing up secondary CPUs ...
[ 0.113258] CPU1 revision is: 00019556 (MIPS 34Kc)
[ 0.196084] smp: Brought up 1 node, 2 CPUs
After that, the system stalls with repeated RCU watchdog warnings and NMI backtraces.
Steps to reproduce
Flash U-Boot (u-boot.ltq.lzo.nandspl) and boot OpenWrt initramfs via TFTP.
FULL LOG
ROM VER: 1.1.4
CFG 02
UART
******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** **************************************
U-Boot 2013.10-openwrt4 (Dec 06 2022 - 22:36:13) VRV9510KWAC23
Board: Arcadyan VRV9510KWAC23
SoC: Lantiq VRX288 v1.2
CPU: 125 MHz
IO: 125 MHz
BUS: 125 MHz
BOOT: UART w/o EEPROM
DRAM: 256 MiB
NAND: 128 MiB
Using default environment
In: serial
Out: serial
Err: serial
Net: ltq-eth
VRV9510KWAC23 # tftpboot u-boot.ltq.lzo.nandspl
ltq_phy: addr 0, link 0, speed 10, duplex 0
ltq_phy: addr 1, link 0, speed 10, duplex 0
ltq_phy: addr 17, link 0, speed 100, duplex 0
ltq_phy: addr 19, link 0, speed 100, duplex 0
ltq_phy: addr 5, link 0, speed 10, duplex 0
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'u-boot.ltq.lzo.nandspl'.
Load address: 0x81000000
Loading: T
Abort
VRV9510KWAC23 # tftpboot u-boot.ltq.lzo.nandspl
ltq_phy: addr 0, link 0, speed 10, duplex 0
ltq_phy: addr 1, link 0, speed 10, duplex 0
ltq_phy: addr 17, link 0, speed 100, duplex 0
ltq_phy: addr 19, link 0, speed 100, duplex 0
ltq_phy: addr 5, link 1, speed 1000, duplex 1
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'u-boot.ltq.lzo.nandspl'.
Load address: 0x81000000
Loading: #################################################################
#######
2.6 MiB/s
done
Bytes transferred = 1048576 (100000 hex)
VRV9510KWAC23 # nand erase 0x0 0x16e0000
NAND erase: device 0 offset 0x0, size 0x16e0000
Erasing at 0x16c0000 -- 100% complete.
OK
VRV9510KWAC23 # nand write $fileaddr 0 $filesize
NAND write: device 0 offset 0x0, size 0x100000
1048576 bytes written: OK
VRV9510KWAC23 #
ROM VER: 1.1.4
CF 02
UART
ROM VER: 1.1.4
CFG 06
NAND
NAND Read OK
U-Boot SPL 2014.07-g2530d1beed-dirty (Nov 06 2023 - 23:49:24)
SPL: tuning DDR SDRAM
MEM: DDR Echo DLL delay: 15/15
MEM: DDR Write DQS delay: 64/65
MEM: DDR Read DQS delay: 1f/1f
SPL: loading U-Boot to RAM
SPL: checking U-Boot image
SPL: decompressing U-Boot with LZO
SPL: jumping to U-Boot
U-Boot 2014.07-g2530d1beed-dirty (Nov 06 2023 - 23:49:24)VRV9510KWAC
Board: Arcadyan VRV9510KWAC
SoC: Lantiq VRX288 v1.2
CPU: 500 MHz
IO: 250 MHz
BUS: 250 MHz
BOOT: NAND
DRAM: 256 MiB
NAND: 128 MiB
*** Warning - bad CRC, using default environment
In: serial
Out: serial
Err: serial
Net: ltq-eth
Hit any key to stop autoboot: 0
NAND read: device 0 offset 0x0, size 0x16e1000
23990272 bytes read: OK
NAND erase: device 0 offset 0x7ea0000, size 0x1000
Erasing at 0x7ea0000 -- 100% complete.
OK
NAND write: device 0 offset 0x7ea0000, size 0x1000
4096 bytes written: OK
Saving Environment to NAND...
Erasing NAND...
Erasing at 0x80000 -- 100% complete.
Writing to NAND... OK
Waiting for PHY link (prio 0)
Using PHY at addr 5, speed 1000, duplex 1
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'rescue.bin'.
Load address: 0x81000000
Loading: #################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
##############################################
9.9 MiB/s
done
Bytes transferred = 7348689 (7021d1 hex)
## Booting kernel from Legacy Image at 81000000 ...
Image Name: MIPS OpenWrt Linux-5.15.137
Created: 2023-11-06 15:04:32 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 7348625 Bytes = 7 MiB
Load Address: 80002000
Entry Point: 80002000
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
[ 0.000000] Linux version 5.15.137 (danie@DANIEL-ASUS) (mips-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r24318-5020efa492) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Mon Nov 6 15:04:32 2023
[ 0.000000] SoC: xRX200 rev 1.2
[ 0.000000] printk: bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019556 (MIPS 34Kc)
[ 0.000000] MIPS: machine is Arcadyan VRV9510KWAC23
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Detected 1 available secondary CPU(s)
[ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff]
[ 0.000000] percpu: Embedded 10 pages/cpu s12016 r8192 d20752 u40960
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 64960
[ 0.000000] Kernel command line: console=ttyLTQ0,115200
[ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
[ 0.000000] Writing ErrCtl register=0004c1b4
[ 0.000000] Readback ErrCtl register=0004c1b4
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 244420K/262144K available (6906K kernel code, 627K rwdata, 1696K rodata, 5600K init, 217K bss, 17724K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 256
[ 0.000000] CPU Clock: 500MHz
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041786 ns
[ 0.000002] sched_clock: 32 bits at 250MHz, resolution 4ns, wraps every 8589934590ns
[ 0.007988] Calibrating delay loop... 331.77 BogoMIPS (lpj=1658880)
[ 0.074066] pid_max: default: 32768 minimum: 301
[ 0.080114] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.087334] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.101386] rcu: Hierarchical SRCU implementation.
[ 0.107211] smp: Bringing up secondary CPUs ...
[ 0.113187] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.113226] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.113339] CPU1 revision is: 00019556 (MIPS 34Kc)
[ 0.171897] Synchronize counters for CPU 1: done.
[ 0.196164] smp: Brought up 1 node, 2 CPUs
[ 0.209165] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.218951] futex hash table entries: 512 (order: 2, 16384 bytes, linear)
[ 0.226045] pinctrl core: initialized pinctrl subsystem
[ 0.233587] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.251004] dcdc-xrx200 1f106a00.dcdc: Core Voltage : 1016 mV
[ 0.265583] pinctrl-xway 1e100b10.pinmux: Init done
[ 0.280469] dma-xway 1e104100.dma: Init done - hw rev: 7, ports: 7, channels: 28
[ 0.319137] usbcore: registered new interface driver usbfs
[ 0.324710] usbcore: registered new interface driver hub
[ 0.329953] usbcore: registered new device driver usb
[ 0.337151] PCI host bridge to bus 0000:00
[ 0.341103] pci_bus 0000:00: root bus resource [mem 0x18000000-0x19ffffff]
[ 0.348103] pci_bus 0000:00: root bus resource [io 0x1ae00000-0x1affffff]
[ 0.354996] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[ 0.364243] pci 0000:00:0e.0: [14e4:a8d6] type 00 class 0x028000
[ 0.370121] pci 0000:00:0e.0: reg 0x10: [mem 0x00000000-0x00003fff]
[ 0.378356] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00
[ 0.384857] pci 0000:00:0e.0: BAR 0: assigned [mem 0x18000000-0x18003fff]
[ 0.392568] clocksource: Switched to clocksource MIPS
[ 0.399737] NET: Registered PF_INET protocol family
[ 0.404951] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.413592] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[ 0.421845] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.429676] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear)
[ 0.437437] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.444675] TCP: Hash tables configured (established 2048 bind 2048)
[ 0.451212] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.457734] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.465299] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.470916] PCI: CLS 0 bytes, default 32
[ 0.474967] gptu: totally 6 16-bit timers/counters
[ 0.479796] gptu: misc_register on minor 127
[ 0.484291] gptu: succeeded to request irq 126
[ 0.488677] gptu: succeeded to request irq 127
[ 0.493338] gptu: succeeded to request irq 128
[ 0.497703] gptu: succeeded to request irq 129
[ 0.502293] gptu: succeeded to request irq 130
[ 0.506839] gptu: succeeded to request irq 131
[ 0.511489] No VPEs reserved for AP/SP, not initialize VPE loader
[ 0.511489] Pass maxvpes=<n> argument as kernel argument
[ 0.522876] No TCs reserved for AP/SP, not initializing RTLX.
[ 0.522876] Pass maxtcs=<n> argument as kernel argument
[ 0.562861] workingset: timestamp_bits=14 max_order=16 bucket_order=2
[ 0.582975] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.588685] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 1.398298] 1e100c00.serial: ttyLTQ0 at MMIO 0x1e100c00 (irq = 112, base_baud = 0) is a lantiq,asc
[ 1.407342] printk: console [ttyLTQ0] enabled
[ 1.407342] printk: console [ttyLTQ0] enabled
[ 1.416082] printk: bootconsole [early0] disabled
[ 1.416082] printk: bootconsole [early0] disabled
[ 1.434465] nand: device found, Manufacturer ID: 0xc2, Chip ID: 0xf1
[ 1.439404] nand: Macronix MX30LF1GE8AB
[ 1.443234] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 9.962920] rcu: INFO: rcu_sched detected stalls on CPUs/tasks:
[ 9.967418] rcu: 0-...!: (1 GPs behind) idle=20d/1/0x40000000 softirq=11/12 fqs=22
[ 9.975160] (detected by 1, t=6006 jiffies, g=-1175, q=2582)
[ 9.980906] Sending NMI from CPU 1 to CPUs 0:
[ 6.176293] rcu: rcu_sched kthread starved for 4185 jiffies! g-1175 f0x0 RCU_GP_WAIT_FQS(5) ->state=0x0 ->cpu=1
[ 6.184957] rcu: Unless rcu_sched kthread gets sufficient CPU time, OOM is now expected behavior.
[ 6.193922] rcu: RCU grace-period kthread stack dump:
[ 6.198971] task:rcu_sched state:R running task stack: 0 pid: 13 ppid: 2 flags:0x00100000
[ 6.208895] Stack : 808eb250 80880000 808f0000 800a6ac4 8144ce60 811094a0 8146fe30 8144ec00
[ 6.217249] 80880000 00000000 80880000 808eb250 00000000 808f0000 808f0000 806b9d90
[ 6.225605] 80880000 808eb250 00000000 808f0000 ffff9279 806be4b0 81113be0 00000001
[ 6.233961] 80880000 00000000 00000122 00000000 ffff9279 800a5ea8 0e800001 8144ec00
[ 6.242316] 808eb120 808eb120 00000001 8009db24 808eb120 808eb120 81113be0 8009e208
[ 6.250672] ...
[ 6.253110] Call Trace:
[ 6.255547] [<806b99b0>] __schedule+0x410/0x790
[ 6.260079] [<806b9d90>] schedule+0x60/0xd0
[ 6.264254] [<806be4b0>] schedule_timeout+0x68/0xe0
[ 6.269128] [<8009db24>] rcu_gp_fqs_loop+0x318/0x3b4
[ 6.274091] [<8009f850>] rcu_gp_kthread+0x140/0x16c
[ 6.278965] [<800566fc>] kthread+0x140/0x164
[ 6.283229] [<80006df8>] ret_from_kernel_thread+0x14/0x1c
[ 6.288628]
[ 6.290102] rcu: Stack dump where RCU GP kthread last ran:
[ 6.295587] NMI backtrace for cpu 1
[ 6.299070] CPU: 1 PID: 79 Comm: kworker/u4:2 Not tainted 5.15.137 #0
[ 6.305509] Stack : 80880000 80087780 00000000 00000004 00000000 00000000 81413c6c 80e80000
[ 6.313863] 80880000 807a7a50 814dfbe8 80880c43 00000000 00000001 81413c18 8144b600
[ 6.322219] 00000000 00000000 807a7a50 81413ab8 ffffefff 00000000 00000000 ffffffea
[ 6.330575] 00000078 81413ac4 00000078 80886ce0 807a7a50 00000000 00000001 00000000
[ 6.338931] 00000001 00000a16 00000002 808eb120 00000018 00000030 00000004 80e80004
[ 6.347287] ...
[ 6.349724] Call Trace:
[ 6.352161] [<8000be1c>] show_stack+0x28/0xf0
[ 6.356517] [<803766f0>] dump_stack_lvl+0x60/0x80
[ 6.361216] [<8037ceb0>] nmi_cpu_backtrace+0x108/0x178
[ 6.366352] [<8037d068>] nmi_trigger_cpumask_backtrace+0x148/0x178
[ 6.372531] [<8009a94c>] rcu_check_gp_kthread_starvation+0x16c/0x1a8
[ 6.378886] [<800a1380>] rcu_sched_clock_irq+0x928/0x9c0
[ 6.384195] [<800a706c>] update_process_times+0xb4/0x110
[ 6.389504] [<800ba348>] tick_sched_timer+0x94/0x210
[ 6.394466] [<800a7800>] __hrtimer_run_queues+0x160/0x24c
[ 6.399862] [<800a8b84>] hrtimer_interrupt+0x180/0x3a4
[ 6.404997] [<80012d1c>] c0_compare_interrupt+0x74/0x88
[ 6.410220] [<8008a070>] __handle_irq_event_percpu+0x58/0x18c
[ 6.415964] [<8008a1c4>] handle_irq_event_percpu+0x20/0x74
[ 6.421448] [<8008fdac>] handle_percpu_irq+0x88/0xb8
[ 6.426409] [<800896f4>] handle_irq_desc+0x20/0x38
[ 6.431196] [<806bf7c0>] do_domain_IRQ+0x3c/0x50
[ 6.435810] [<803927a4>] plat_irq_dispatch+0x98/0xcc
[ 6.440771] [<80007308>] except_vec_vi_end+0xb8/0xc4
[ 6.445731] [<800bfd08>] smp_call_function_many_cond+0x180/0x438
[ 6.451739] [<800c0004>] smp_call_function+0x24/0x30
[ 6.456699] [<8001546c>] flush_tlb_mm+0x50/0xf4
[ 6.461225] [<80183524>] tlb_finish_mmu+0x160/0x1b0
[ 6.466099] [<8018104c>] exit_mmap+0x94/0x1f8
[ 6.470452] [<8002f12c>] mmput+0x48/0x11c
[ 6.474457]
[ 1.064359] rcu: INFO: rcu_sched detected stalls on CPUs/tasks:
[ 1.068854] rcu: 0-...!: (1 GPs behind) idle=20d/1/0x40000000 softirq=11/12 fqs=22
[ 1.076597] (detected by 1, t=24014 jiffies, g=-1175, q=2582)
[ 1.082430] Sending NMI from CPU 1 to CPUs 0:
[ 1.086780] Unable to send backtrace IPI to CPU0 - perhaps it hung?
[ 14.463951] rcu: rcu_sched kthread starved for 22193 jiffies! g-1175 f0x2 RCU_GP_WAIT_FQS(5) ->state=0x0 ->cpu=1
[ 14.472704] rcu: Unless rcu_sched kthread gets sufficient CPU time, OOM is now expected behavior.
[ 14.481669] rcu: RCU grace-period kthread stack dump:
[ 14.486718] task:rcu_sched state:R running task stack: 0 pid: 13 ppid: 2 flags:0x00100000
[ 14.496642] Stack : 808eb250 80880000 808f0000 800a6ac4 8144ce60 811094a0 8146fe30 8144ec00
[ 14.504996] 80880000 00000000 80880000 808eb250 00000000 808f0000 808f0000 806b9d90
[ 14.513352] 80880000 808eb250 00000000 808f0000 ffff9279 806be4b0 81113be0 00000001
[ 14.521708] 80880000 00000000 00000122 00000000 ffff9279 800a5ea8 0e800001 8144ec00
[ 14.530063] 808eb120 808eb120 00000001 8009db24 808eb120 808eb120 81113be0 8009e208
[ 14.538419] ...
[ 14.540857] Call Trace:
[ 14.543294] [<806b99b0>] __schedule+0x410/0x790
[ 14.547826] [<806b9d90>] schedule+0x60/0xd0
[ 14.552001] [<806be4b0>] schedule_timeout+0x68/0xe0
[ 14.556875] [<8009db24>] rcu_gp_fqs_loop+0x318/0x3b4
[ 14.561838] [<8009f850>] rcu_gp_kthread+0x140/0x16c
[ 14.566712] [<800566fc>] kthread+0x140/0x164
[ 14.570976] [<80006df8>] ret_from_kernel_thread+0x14/0x1c
[ 14.576374]
[ 14.577849] rcu: Stack dump where RCU GP kthread last ran:
[ 14.583334] NMI backtrace for cpu 1
[ 14.586818] CPU: 1 PID: 79 Comm: kworker/u4:2 Not tainted 5.15.137 #0
[ 14.593256] Stack : 80880000 80087780 00000000 00000004 00000000 00000000 81413c6c 80e80000
[ 14.601610] 80880000 807a7a50 814dfbe8 80880c43 00000000 00000001 81413c18 8144b600
[ 14.609966] 00000000 00000000 807a7a50 81413ab8 ffffefff 00000000 00000000 ffffffea
[ 14.618322] 000000b3 81413ac4 000000b3 80886ce0 807a7a50 00000000 00000001 00000000
[ 14.626678] 00000001 00000a16 00000002 808eb120 00000018 00000030 00000004 80e80004
[ 14.635034] ...
[ 14.637471] Call Trace:
[ 14.639908] [<8000be1c>] show_stack+0x28/0xf0
[ 14.644264] [<803766f0>] dump_stack_lvl+0x60/0x80
[ 14.648963] [<8037ceb0>] nmi_cpu_backtrace+0x108/0x178
[ 14.654099] [<8037d068>] nmi_trigger_cpumask_backtrace+0x148/0x178
[ 14.660278] [<8009a94c>] rcu_check_gp_kthread_starvation+0x16c/0x1a8
[ 14.666633] [<800a1380>] rcu_sched_clock_irq+0x928/0x9c0
[ 14.671942] [<800a706c>] update_process_times+0xb4/0x110
[ 14.677251] [<800ba348>] tick_sched_timer+0x94/0x210
[ 14.682213] [<800a7800>] __hrtimer_run_queues+0x160/0x24c
[ 14.687609] [<800a8b84>] hrtimer_interrupt+0x180/0x3a4
[ 14.692744] [<80012d1c>] c0_compare_interrupt+0x74/0x88
[ 14.697967] [<8008a070>] __handle_irq_event_percpu+0x58/0x18c
[ 14.703711] [<8008a1c4>] handle_irq_event_percpu+0x20/0x74
[ 14.709195] [<8008fdac>] handle_percpu_irq+0x88/0xb8
[ 14.714156] [<800896f4>] handle_irq_desc+0x20/0x38
[ 14.718944] [<806bf7c0>] do_domain_IRQ+0x3c/0x50
[ 14.723557] [<803927a4>] plat_irq_dispatch+0x98/0xcc
[ 14.728518] [<80007308>] except_vec_vi_end+0xb8/0xc4
[ 14.733478] [<800bfd00>] smp_call_function_many_cond+0x178/0x438
[ 14.739486] [<800c0004>] smp_call_function+0x24/0x30
[ 14.744446] [<8001546c>] flush_tlb_mm+0x50/0xf4
[ 14.748972] [<80183524>] tlb_finish_mmu+0x160/0x1b0
[ 14.753847] [<8018104c>] exit_mmap+0x94/0x1f8
[ 14.758199] [<8002f12c>] mmput+0x48/0x11c
[ 14.762204]
Can you at least try to netboot current supported OpenWrt image in place of 3 years old self-built one?
1 Like
i tried latest available 24.10.3 same issue same exact log
ROM VER: 1.1.4
CFG 02
UART
******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** ******************************************************************************** **************************************
U-Boot 2013.10-openwrt4 (Dec 06 2022 - 22:36:13) VRV9510KWAC23
Board: Arcadyan VRV9510KWAC23
SoC: Lantiq VRX288 v1.2
CPU: 125 MHz
IO: 125 MHz
BUS: 125 MHz
BOOT: UART w/o EEPROM
DRAM: 256 MiB
NAND: 128 MiB
Using default environment
In: serial
Out: serial
Err: serial
Net: ltq-eth
VRV9510KWAC23 # tftpboot u-boot.ltq.lzo.nandspl
ltq_phy: addr 0, link 0, speed 10, duplex 0
ltq_phy: addr 1, link 0, speed 10, duplex 0
ltq_phy: addr 17, link 0, speed 10, duplex 0
ltq_phy: addr 19, link 0, speed 100, duplex 0
ltq_phy: addr 5, link 1, speed 1000, duplex 1
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'u-boot.ltq.lzo.nandspl'.
Load address: 0x81000000
Loading: *
TFTP server died; starting again
ltq_phy: addr 0, link 0, speed 10, duplex 0
ltq_phy: addr 1, link 0, speed 10, duplex 0
ltq_phy: addr 17, link 0, speed 10, duplex 0
ltq_phy: addr 19, link 0, speed 10, duplex 0
ltq_phy: addr 5, link 1, speed 1000, duplex 1
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'u-boot.ltq.lzo.nandspl'.
Load address: 0x81000000
Loading: *
TFTP error: 'File not found' (1)
Not retrying...
VRV9510KWAC23 # tftpboot u-boot.ltq.lzo.nandspl
ltq_phy: addr 0, link 0, speed 10, duplex 0
ltq_phy: addr 1, link 0, speed 10, duplex 0
ltq_phy: addr 17, link 0, speed 100, duplex 0
ltq_phy: addr 19, link 0, speed 100, duplex 0
ltq_phy: addr 5, link 1, speed 1000, duplex 1
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'u-boot.ltq.lzo.nandspl'.
Load address: 0x81000000
Loading: #################################################################
#######
2.5 MiB/s
done
Bytes transferred = 1048576 (100000 hex)
VRV9510KWAC23 # nand write $fileaddr 0 $filesize
NAND write: device 0 offset 0x0, size 0x100000
1048576 bytes written: OK
VRV9510KWAC23 # nand erase 0x0 0x16e0000
NAND erase: device 0 offset 0x0, size 0x16e0000
Erasing at 0x16c0000 -- 100% complete.
OK
VRV9510KWAC23 # nand write $fileaddr 0 $filesize
NAND write: device 0 offset 0x0, size 0x100000
1048576 bytes written: OK
VRV9510KWAC23 #
ROM VER: 1.1.4
CFG 02
UART
ROM VER: 1.1.4
CFG 06
NAND
NAND Read OK
U-Boot SPL 2014.07-g2530d1beed-dirty (Nov 06 2023 - 23:49:24)
SPL: tuning DDR SDRAM
MEM: DDR Echo DLL delay: 15/15
MEM: DDR Write DQS delay: 65/65
MEM: DDR Read DQS delay: 1f/1f
SPL: loading U-Boot to RAM
SPL: checking U-Boot image
SPL: decompressing U-Boot with LZO
SPL: jumping to U-Boot
U-Boot 2014.07-g2530d1beed-dirty (Nov 06 2023 - 23:49:24)VRV9510KWAC
Board: Arcadyan VRV9510KWAC
SoC: Lantiq VRX288 v1.2
CPU: 500 MHz
IO: 250 MHz
BUS: 250 MHz
BOOT: NAND
DRAM: 256 MiB
NAND: 128 MiB
*** Warning - bad CRC, using default environment
In: serial
Out: serial
Err: serial
Net: ltq-eth
Hit any key to stop autoboot: 0
NAND read: device 0 offset 0x0, size 0x16e1000
23990272 bytes read: OK
NAND erase: device 0 offset 0x7ea0000, size 0x1000
Erasing at 0x7ea0000 -- 100% complete.
OK
NAND write: device 0 offset 0x7ea0000, size 0x1000
4096 bytes written: OK
Saving Environment to NAND...
Erasing NAND...
Erasing at 0x80000 -- 100% complete.
Writing to NAND... OK
Waiting for PHY link (prio 0)
Using PHY at addr 5, speed 1000, duplex 1
Using ltq-eth device
TFTP from server 192.168.1.2; our IP address is 192.168.1.1
Filename 'rescue.bin'.
Load address: 0x81000000
Loading: #################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
###################################################
9.8 MiB/s
done
Bytes transferred = 8374920 (7fca88 hex)
## Booting kernel from Legacy Image at 81000000 ...
Image Name: MIPS OpenWrt Linux-6.6.63
Created: 2024-11-29 17:25:36 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 8374856 Bytes = 8 MiB
Load Address: 80002000
Entry Point: 80002000
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
[ 0.000000] Linux version 6.6.63 (builder@buildhost) (mips-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 r28158-d276b4c91a) 13.3.0, GNU ld (GNU Binutils) 2.42) #0 SMP Fri Nov 29 17:25:36 2024
[ 0.000000] SoC: xRX200 rev 1.2
[ 0.000000] printk: bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019556 (MIPS 34Kc)
[ 0.000000] MIPS: machine is Arcadyan VRV9510KWAC23
[ 0.000000] User-defined physical RAM map overwrite
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Detected 1 available secondary CPU(s)
[ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x000000000fdfffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fdfffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fdfffff]
[ 0.000000] percpu: Embedded 12 pages/cpu s16640 r8192 d24320 u49152
[ 0.000000] Kernel command line: console=ttyLTQ0,115200 mem=254M vpe1_load_addr=0x8fe00000 vpe1_mem=2M maxvpes=1 maxtcs=1 nosmp
[ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
[ 0.000000] Writing ErrCtl register=0004c1b5
[ 0.000000] Readback ErrCtl register=0004c1b5
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 64452
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 240748K/260096K available (8269K kernel code, 653K rwdata, 1284K rodata, 6224K init, 223K bss, 19348K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 256
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] CPU Clock: 500MHz
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041786 ns
[ 0.000002] sched_clock: 32 bits at 250MHz, resolution 4ns, wraps every 8589934590ns
[ 0.007985] Calibrating delay loop... 331.77 BogoMIPS (lpj=1658880)
[ 0.074076] pid_max: default: 32768 minimum: 301
[ 0.094589] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.101772] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.125451] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2.
[ 0.135548] rcu: Hierarchical SRCU implementation.
[ 0.140192] rcu: Max phase no-delay instances is 1000.
[ 0.146776] smp: Bringing up secondary CPUs ...
[ 0.151164] smp: Brought up 1 node, 1 CPU
[ 0.166918] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.176698] futex hash table entries: 512 (order: 2, 16384 bytes, linear)
[ 0.190735] pinctrl core: initialized pinctrl subsystem
[ 0.201300] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.208299] thermal_sys: Registered thermal governor 'step_wise'
[ 0.212727] dcdc-xrx200 1f106a00.dcdc: Core Voltage : 1016 mV
[ 0.233796] pinctrl-xway 1e100b10.pinmux: Init done
[ 0.248845] dma-xway 1e104100.dma: Init done - hw rev: 7, ports: 7, channels: 28
[ 0.279177] usbcore: registered new interface driver usbfs
[ 0.284590] usbcore: registered new interface driver hub
[ 0.290136] usbcore: registered new device driver usb
[ 0.298092] PCI host bridge to bus 0000:00
[ 0.302113] pci_bus 0000:00: root bus resource [mem 0x18000000-0x19ffffff]
[ 0.308979] pci_bus 0000:00: root bus resource [io 0x1ae00000-0x1affffff]
[ 0.315965] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[ 0.325171] pci 0000:00:0e.0: [14e4:a8d6] type 00 class 0x028000
[ 0.331096] pci 0000:00:0e.0: reg 0x10: [mem 0x00000000-0x00003fff]
[ 0.339092] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00
[ 0.345652] pci 0000:00:0e.0: BAR 0: assigned [mem 0x18000000-0x18003fff]
[ 0.354453] clocksource: Switched to clocksource MIPS
[ 0.378042] NET: Registered PF_INET protocol family
[ 0.383164] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.393047] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
[ 0.401362] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.409142] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear)
[ 0.416903] TCP bind hash table entries: 2048 (order: 3, 32768 bytes, linear)
[ 0.424198] TCP: Hash tables configured (established 2048 bind 2048)
[ 0.431597] MPTCP token hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.439383] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.445955] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.454586] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.460231] PCI: CLS 0 bytes, default 32
[ 0.464581] gptu: totally 6 16-bit timers/counters
[ 0.469334] gptu: misc_register on minor 127
[ 0.473748] gptu: succeeded to request irq 126
[ 0.478265] gptu: succeeded to request irq 127
[ 0.482747] gptu: succeeded to request irq 128
[ 0.487350] gptu: succeeded to request irq 129
[ 0.491745] gptu: succeeded to request irq 130
[ 0.496353] gptu: succeeded to request irq 131
[ 0.504209] lantiq,vmmc 1f107000.vmmc: reserved 1MB at 0x(ptrval)
[ 1.306359] workingset: timestamp_bits=14 max_order=16 bucket_order=2
[ 1.314370] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 1.320218] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 1.345397] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 250)
[ 1.359241] 1e100c00.serial: ttyLTQ0 at MMIO 0x1e100c00 (irq = 112, base_baud = 0) is a lantiq,asc
[ 1.368210] printk: console [ttyLTQ0] enabled
[ 1.368210] printk: console [ttyLTQ0] enabled
[ 1.376912] printk: bootconsole [early0] disabled
[ 1.376912] printk: bootconsole [early0] disabled
[ 1.393264] nand: device found, Manufacturer ID: 0xc2, Chip ID: 0xf1
[ 1.398183] nand: Macronix MX30LF1GE8AB
[ 1.402009] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 9.962920] rcu: INFO: rcu_sched detected stalls on CPUs/tasks:
[ 9.967418] rcu: 0-...!: (1 GPs behind) idle=20d/1/0x40000000 softirq=11/12 fqs=22
[ 9.975160] (detected by 1, t=6006 jiffies, g=-1175, q=2582)
[ 9.980906] Sending NMI from CPU 1 to CPUs 0:
[ 6.176293] rcu: rcu_sched kthread starved for 4185 jiffies! g-1175 f0x0 RCU_GP_WAIT_FQS(5) ->state=0x0 ->cpu=1
[ 6.184957] rcu: Unless rcu_sched kthread gets sufficient CPU time, OOM is now expected behavior.
[ 6.193922] rcu: RCU grace-period kthread stack dump:
[ 6.198971] task:rcu_sched state:R running task stack: 0 pid: 13 ppid: 2 flags:0x00100000
[ 6.208895] Stack : 808eb250 80880000 808f0000 800a6ac4 8144ce60 811094a0 8146fe30 8144ec00
[ 6.217249] 80880000 00000000 80880000 808eb250 00000000 808f0000 808f0000 806b9d90
[ 6.225605] 80880000 808eb250 00000000 808f0000 ffff9279 806be4b0 81113be0 00000001
[ 6.233961] 80880000 00000000 00000122 00000000 ffff9279 800a5ea8 0e800001 8144ec00
[ 6.242316] 808eb120 808eb120 00000001 8009db24 808eb120 808eb120 81113be0 8009e208
[ 6.250672] ...
[ 6.253110] Call Trace:
[ 6.255547] [<806b99b0>] __schedule+0x410/0x790
[ 6.260079] [<806b9d90>] schedule+0x60/0xd0
[ 6.264254] [<806be4b0>] schedule_timeout+0x68/0xe0
[ 6.269128] [<8009db24>] rcu_gp_fqs_loop+0x318/0x3b4
[ 6.274091] [<8009f850>] rcu_gp_kthread+0x140/0x16c
[ 6.278965] [<800566fc>] kthread+0x140/0x164
[ 6.283229] [<80006df8>] ret_from_kernel_thread+0x14/0x1c
[ 6.288628]
[ 6.290102] rcu: Stack dump where RCU GP kthread last ran:
[ 6.295587] NMI backtrace for cpu 1
[ 6.299070] CPU: 1 PID: 79 Comm: kworker/u4:2 Not tainted 5.15.137 #0
[ 6.305509] Stack : 80880000 80087780 00000000 00000004 00000000 00000000 81413c6c 80e80000
[ 6.313863] 80880000 807a7a50 814dfbe8 80880c43 00000000 00000001 81413c18 8144b600
[ 6.322219] 00000000 00000000 807a7a50 81413ab8 ffffefff 00000000 00000000 ffffffea
[ 6.330575] 00000078 81413ac4 00000078 80886ce0 807a7a50 00000000 00000001 00000000
[ 6.338931] 00000001 00000a16 00000002 808eb120 00000018 00000030 00000004 80e80004
[ 6.347287] ...
[ 6.349724] Call Trace:
[ 6.352161] [<8000be1c>] show_stack+0x28/0xf0
[ 6.356517] [<803766f0>] dump_stack_lvl+0x60/0x80
[ 6.361216] [<8037ceb0>] nmi_cpu_backtrace+0x108/0x178
[ 6.366352] [<8037d068>] nmi_trigger_cpumask_backtrace+0x148/0x178
[ 6.372531] [<8009a94c>] rcu_check_gp_kthread_starvation+0x16c/0x1a8
[ 6.378886] [<800a1380>] rcu_sched_clock_irq+0x928/0x9c0
[ 6.384195] [<800a706c>] update_process_times+0xb4/0x110
[ 6.389504] [<800ba348>] tick_sched_timer+0x94/0x210
[ 6.394466] [<800a7800>] __hrtimer_run_queues+0x160/0x24c
[ 6.399862] [<800a8b84>] hrtimer_interrupt+0x180/0x3a4
[ 6.404997] [<80012d1c>] c0_compare_interrupt+0x74/0x88
[ 6.410220] [<8008a070>] __handle_irq_event_percpu+0x58/0x18c
[ 6.415964] [<8008a1c4>] handle_irq_event_percpu+0x20/0x74
[ 6.421448] [<8008fdac>] handle_percpu_irq+0x88/0xb8
[ 6.426409] [<800896f4>] handle_irq_desc+0x20/0x38
[ 6.431196] [<806bf7c0>] do_domain_IRQ+0x3c/0x50
[ 6.435810] [<803927a4>] plat_irq_dispatch+0x98/0xcc
[ 6.440771] [<80007308>] except_vec_vi_end+0xb8/0xc4
[ 6.445731] [<800bfd08>] smp_call_function_many_cond+0x180/0x438
[ 6.451739] [<800c0004>] smp_call_function+0x24/0x30
[ 6.456699] [<8001546c>] flush_tlb_mm+0x50/0xf4
[ 6.461225] [<80183524>] tlb_finish_mmu+0x160/0x1b0
[ 6.466099] [<8018104c>] exit_mmap+0x94/0x1f8
[ 6.470452] [<8002f12c>] mmput+0x48/0x11c
[ 6.474457]
[ 1.064359] rcu: INFO: rcu_sched detected stalls on CPUs/tasks:
[ 1.068854] rcu: 0-...!: (1 GPs behind) idle=20d/1/0x40000000 softirq=11/12 fqs=22
[ 1.076597] (detected by 1, t=24014 jiffies, g=-1175, q=2582)
[ 1.082430] Sending NMI from CPU 1 to CPUs 0:
[ 1.086780] Unable to send backtrace IPI to CPU0 - perhaps it hung?
[ 14.463951] rcu: rcu_sched kthread starved for 22193 jiffies! g-1175 f0x2 RCU_GP_WAIT_FQS(5) ->state=0x0 ->cpu=1
[ 14.472704] rcu: Unless rcu_sched kthread gets sufficient CPU time, OOM is now expected behavior.
[ 14.481669] rcu: RCU grace-period kthread stack dump:
[ 14.486718] task:rcu_sched state:R running task stack: 0 pid: 13 ppid: 2 flags:0x00100000
[ 14.496642] Stack : 808eb250 80880000 808f0000 800a6ac4 8144ce60 811094a0 8146fe30 8144ec00
[ 14.504996] 80880000 00000000 80880000 808eb250 00000000 808f0000 808f0000 806b9d90
[ 14.513352] 80880000 808eb250 00000000 808f0000 ffff9279 806be4b0 81113be0 00000001
[ 14.521708] 80880000 00000000 00000122 00000000 ffff9279 800a5ea8 0e800001 8144ec00
[ 14.530063] 808eb120 808eb120 00000001 8009db24 808eb120 808eb120 81113be0 8009e208
[ 14.538419] ...
[ 14.540857] Call Trace:
[ 14.543294] [<806b99b0>] __schedule+0x410/0x790
[ 14.547826] [<806b9d90>] schedule+0x60/0xd0
[ 14.552001] [<806be4b0>] schedule_timeout+0x68/0xe0
[ 14.556875] [<8009db24>] rcu_gp_fqs_loop+0x318/0x3b4
[ 14.561838] [<8009f850>] rcu_gp_kthread+0x140/0x16c
[ 14.566712] [<800566fc>] kthread+0x140/0x164
[ 14.570976] [<80006df8>] ret_from_kernel_thread+0x14/0x1c
[ 14.576374]
[ 14.577849] rcu: Stack dump where RCU GP kthread last ran:
[ 14.583334] NMI backtrace for cpu 1
[ 14.586818] CPU: 1 PID: 79 Comm: kworker/u4:2 Not tainted 5.15.137 #0
[ 14.593256] Stack : 80880000 80087780 00000000 00000004 00000000 00000000 81413c6c 80e80000
[ 14.601610] 80880000 807a7a50 814dfbe8 80880c43 00000000 00000001 81413c18 8144b600
[ 14.609966] 00000000 00000000 807a7a50 81413ab8 ffffefff 00000000 00000000 ffffffea
[ 14.618322] 000000b3 81413ac4 000000b3 80886ce0 807a7a50 00000000 00000001 00000000
[ 14.626678] 00000001 00000a16 00000002 808eb120 00000018 00000030 00000004 80e80004
[ 14.635034] ...
[ 14.637471] Call Trace:
[ 14.639908] [<8000be1c>] show_stack+0x28/0xf0
[ 14.644264] [<803766f0>] dump_stack_lvl+0x60/0x80
[ 14.648963] [<8037ceb0>] nmi_cpu_backtrace+0x108/0x178
[ 14.654099] [<8037d068>] nmi_trigger_cpumask_backtrace+0x148/0x178
[ 14.660278] [<8009a94c>] rcu_check_gp_kthread_starvation+0x16c/0x1a8
[ 14.666633] [<800a1380>] rcu_sched_clock_irq+0x928/0x9c0
[ 14.671942] [<800a706c>] update_process_times+0xb4/0x110
[ 14.677251] [<800ba348>] tick_sched_timer+0x94/0x210
[ 14.682213] [<800a7800>] __hrtimer_run_queues+0x160/0x24c
[ 14.687609] [<800a8b84>] hrtimer_interrupt+0x180/0x3a4
[ 14.692744] [<80012d1c>] c0_compare_interrupt+0x74/0x88
[ 14.697967] [<8008a070>] __handle_irq_event_percpu+0x58/0x18c
[ 14.703711] [<8008a1c4>] handle_irq_event_percpu+0x20/0x74
[ 14.709195] [<8008fdac>] handle_percpu_irq+0x88/0xb8
[ 14.714156] [<800896f4>] handle_irq_desc+0x20/0x38
[ 14.718944] [<806bf7c0>] do_domain_IRQ+0x3c/0x50
[ 14.723557] [<803927a4>] plat_irq_dispatch+0x98/0xcc
[ 14.728518] [<80007308>] except_vec_vi_end+0xb8/0xc4
[ 14.733478] [<800bfd00>] smp_call_function_many_cond+0x178/0x438
[ 14.739486] [<800c0004>] smp_call_function+0x24/0x30
[ 14.744446] [<8001546c>] flush_tlb_mm+0x50/0xf4
[ 14.748972] [<80183524>] tlb_finish_mmu+0x160/0x1b0
[ 14.753847] [<8018104c>] exit_mmap+0x94/0x1f8
[ 14.758199] [<8002f12c>] mmput+0x48/0x11c
[ 14.762204]
No NMi no crash. What “issue” you talking about?
[ 9.962920] rcu: INFO: rcu_sched detected stalls on CPUs/tasks:
[ 9.967418] rcu: 0-...!: (1 GPs behind) idle=20d/1/0x40000000 softirq=11/12 fqs=22
[ 9.975160] (detected by 1, t=6006 jiffies, g=-1175, q=2582)
[ 9.980906] Sending NMI from CPU 1 to CPUs 0:
[ 6.176293] rcu: rcu_sched kthread starved for 4185 jiffies! g-1175 f0x0 RCU_GP_WAIT_FQS(5) ->state=0x0 ->cpu=1
[ 6.184957] rcu: Unless rcu_sched kthread gets sufficient CPU time, OOM is now expected behavior.
[ 6.193922] rcu: RCU grace-period kthread stack dump:
[ 6.198971] task:rcu_sched state:R running task stack: 0 pid: 13 ppid: 2 flags:0x00100000
[ 6.208895] Stack : 808eb250 80880000 808f0000 800a6ac4 8144ce60 811094a0 8146fe30 8144ec00
[ 6.217249] 80880000 00000000 80880000 808eb250 00000000 808f0000 808f0000 806b9d90
[ 6.225605] 80880000 808eb250 00000000 808f0000 ffff9279 806be4b0 81113be0 00000001
[ 6.233961] 80880000 00000000 00000122 00000000 ffff9279 800a5ea8 0e800001 8144ec00
[ 6.242316] 808eb120 808eb120 00000001 8009db24 808eb120 808eb120 81113be0 8009e208
[ 6.250672] ...
[ 6.253110] Call Trace:
[ 6.255547] [<806b99b0>] __schedule+0x410/0x790
[ 6.260079] [<806b9d90>] schedule+0x60/0xd0
[ 6.264254] [<806be4b0>] schedule_timeout+0x68/0xe0
[ 6.269128] [<8009db24>] rcu_gp_fqs_loop+0x318/0x3b4
[ 6.274091] [<8009f850>] rcu_gp_kthread+0x140/0x16c
[ 6.278965] [<800566fc>] kthread+0x140/0x164
[ 6.283229] [<80006df8>] ret_from_kernel_thread+0x14/0x1c
[ 6.288628]
[ 6.290102] rcu: Stack dump where RCU GP kthread last ran:
[ 6.295587] NMI backtrace for cpu 1
[ 6.299070] CPU: 1 PID: 79 Comm: kworker/u4:2 Not tainted 5.15.137 #0
[ 6.305509] Stack : 80880000 80087780 00000000 00000004 00000000 00000000 81413c6c 80e80000
[ 6.313863] 80880000 807a7a50 814dfbe8 80880c43 00000000 00000001 81413c18 8144b600
[ 6.322219] 00000000 00000000 807a7a50 81413ab8 ffffefff 00000000 00000000 ffffffea
[ 6.330575] 00000078 81413ac4 00000078 80886ce0 807a7a50 00000000 00000001 00000000
[ 6.338931] 00000001 00000a16 00000002 808eb120 00000018 00000030 00000004 80e80004
[ 6.347287] ...
[ 6.349724] Call Trace:
[ 6.352161] [<8000be1c>] show_stack+0x28/0xf0
[ 6.356517] [<803766f0>] dump_stack_lvl+0x60/0x80
[ 6.361216] [<8037ceb0>] nmi_cpu_backtrace+0x108/0x178
[ 6.366352] [<8037d068>] nmi_trigger_cpumask_backtrace+0x148/0x178
[ 6.372531] [<8009a94c>] rcu_check_gp_kthread_starvation+0x16c/0x1a8
[ 6.378886] [<800a1380>] rcu_sched_clock_irq+0x928/0x9c0
[ 6.384195] [<800a706c>] update_process_times+0xb4/0x110
[ 6.389504] [<800ba348>] tick_sched_timer+0x94/0x210
[ 6.394466] [<800a7800>] __hrtimer_run_queues+0x160/0x24c
[ 6.399862] [<800a8b84>] hrtimer_interrupt+0x180/0x3a4
[ 6.404997] [<80012d1c>] c0_compare_interrupt+0x74/0x88
[ 6.410220] [<8008a070>] __handle_irq_event_percpu+0x58/0x18c
[ 6.415964] [<8008a1c4>] handle_irq_event_percpu+0x20/0x74
[ 6.421448] [<8008fdac>] handle_percpu_irq+0x88/0xb8
[ 6.426409] [<800896f4>] handle_irq_desc+0x20/0x38
[ 6.431196] [<806bf7c0>] do_domain_IRQ+0x3c/0x50
[ 6.435810] [<803927a4>] plat_irq_dispatch+0x98/0xcc
[ 6.440771] [<80007308>] except_vec_vi_end+0xb8/0xc4
[ 6.445731] [<800bfd08>] smp_call_function_many_cond+0x180/0x438
[ 6.451739] [<800c0004>] smp_call_function+0x24/0x30
[ 6.456699] [<8001546c>] flush_tlb_mm+0x50/0xf4
[ 6.461225] [<80183524>] tlb_finish_mmu+0x160/0x1b0
[ 6.466099] [<8018104c>] exit_mmap+0x94/0x1f8
[ 6.470452] [<8002f12c>] mmput+0x48/0x11c
[ 6.474457]
[ 1.064359] rcu: INFO: rcu_sched detected stalls on CPUs/tasks:
[ 1.068854] rcu: 0-...!: (1 GPs behind) idle=20d/1/0x40000000 softirq=11/12 fqs=22
[ 1.076597] (detected by 1, t=24014 jiffies, g=-1175, q=2582)
[ 1.082430] Sending NMI from CPU 1 to CPUs 0:
[ 1.086780] Unable to send backtrace IPI to CPU0 - perhaps it hung?
[ 14.463951] rcu: rcu_sched kthread starved for 22193 jiffies! g-1175 f0x2 RCU_GP_WAIT_FQS(5) ->state=0x0 ->cpu=1
[ 14.472704] rcu: Unless rcu_sched kthread gets sufficient CPU time, OOM is now expected behavior.
[ 14.481669] rcu: RCU grace-period kthread stack dump:
[ 14.486718] task:rcu_sched state:R running task stack: 0 pid: 13 ppid: 2 flags:0x00100000
[ 14.496642] Stack : 808eb250 80880000 808f0000 800a6ac4 8144ce60 811094a0 8146fe30 8144ec00
[ 14.504996] 80880000 00000000 80880000 808eb250 00000000 808f0000 808f0000 806b9d90
[ 14.513352] 80880000 808eb250 00000000 808f0000 ffff9279 806be4b0 81113be0 00000001
[ 14.521708] 80880000 00000000 00000122 00000000 ffff9279 800a5ea8 0e800001 8144ec00
[ 14.530063] 808eb120 808eb120 00000001 8009db24 808eb120 808eb120 81113be0 8009e208
[ 14.538419] ...
[ 14.540857] Call Trace:
[ 14.543294] [<806b99b0>] __schedule+0x410/0x790
[ 14.547826] [<806b9d90>] schedule+0x60/0xd0
[ 14.552001] [<806be4b0>] schedule_timeout+0x68/0xe0
[ 14.556875] [<8009db24>] rcu_gp_fqs_loop+0x318/0x3b4
[ 14.561838] [<8009f850>] rcu_gp_kthread+0x140/0x16c
[ 14.566712] [<800566fc>] kthread+0x140/0x164
[ 14.570976] [<80006df8>] ret_from_kernel_thread+0x14/0x1c
[ 14.576374]
[ 14.577849] rcu: Stack dump where RCU GP kthread last ran:
[ 14.583334] NMI backtrace for cpu 1
[ 14.586818] CPU: 1 PID: 79 Comm: kworker/u4:2 Not tainted 5.15.137 #0
[ 14.593256] Stack : 80880000 80087780 00000000 00000004 00000000 00000000 81413c6c 80e80000
[ 14.601610] 80880000 807a7a50 814dfbe8 80880c43 00000000 00000001 81413c18 8144b600
[ 14.609966] 00000000 00000000 807a7a50 81413ab8 ffffefff 00000000 00000000 ffffffea
[ 14.618322] 000000b3 81413ac4 000000b3 80886ce0 807a7a50 00000000 00000001 00000000
[ 14.626678] 00000001 00000a16 00000002 808eb120 00000018 00000030 00000004 80e80004
[ 14.635034] ...
[ 14.637471] Call Trace:
[ 14.639908] [<8000be1c>] show_stack+0x28/0xf0
[ 14.644264] [<803766f0>] dump_stack_lvl+0x60/0x80
[ 14.648963] [<8037ceb0>] nmi_cpu_backtrace+0x108/0x178
[ 14.654099] [<8037d068>] nmi_trigger_cpumask_backtrace+0x148/0x178
[ 14.660278] [<8009a94c>] rcu_check_gp_kthread_starvation+0x16c/0x1a8
[ 14.666633] [<800a1380>] rcu_sched_clock_irq+0x928/0x9c0
[ 14.671942] [<800a706c>] update_process_times+0xb4/0x110
[ 14.677251] [<800ba348>] tick_sched_timer+0x94/0x210
[ 14.682213] [<800a7800>] __hrtimer_run_queues+0x160/0x24c
[ 14.687609] [<800a8b84>] hrtimer_interrupt+0x180/0x3a4
[ 14.692744] [<80012d1c>] c0_compare_interrupt+0x74/0x88
[ 14.697967] [<8008a070>] __handle_irq_event_percpu+0x58/0x18c
[ 14.703711] [<8008a1c4>] handle_irq_event_percpu+0x20/0x74
[ 14.709195] [<8008fdac>] handle_percpu_irq+0x88/0xb8
[ 14.714156] [<800896f4>] handle_irq_desc+0x20/0x38
[ 14.718944] [<806bf7c0>] do_domain_IRQ+0x3c/0x50
[ 14.723557] [<803927a4>] plat_irq_dispatch+0x98/0xcc
[ 14.728518] [<80007308>] except_vec_vi_end+0xb8/0xc4
[ 14.733478] [<800bfd00>] smp_call_function_many_cond+0x178/0x438
[ 14.739486] [<800c0004>] smp_call_function+0x24/0x30
[ 14.744446] [<8001546c>] flush_tlb_mm+0x50/0xf4
[ 14.748972] [<80183524>] tlb_finish_mmu+0x160/0x1b0
[ 14.753847] [<8018104c>] exit_mmap+0x94/0x1f8
[ 14.758199] [<8002f12c>] mmput+0x48/0x11c
[ 14.762204]
it’s stuck here keep looping here and never boots
24.10 boots just fine? Anyway NMI is hardware fault.
no version boots fine from 24.10.0-rc1 till 24.10.3 , snapshots too
this is the OEM firmware dump : https://www.mediafire.com/file/wa0ysec3cd5zz1m/arcadyan-VRV9510KWAC23-backup.bin/file
I see flaw in wiki logs suggest that u-boot.ltq.lzo.nandspl should be 354728 bytes not 1048576 as found even if md5 sum match. You should contact commit author If this method doesn't work for you.
Also all his work is here so double check if you use good files
danielhuici/arcadyan-vrv9510kwac23-utils: Utilities for Arcadyan VRV9510KWAC21
edit:
Also replace power supply as this might be hw fail after all
1 Like
- I'm using the files from author git idk why bytes are less
- i tested with another more powerful 12v 3AMPS as grock ai suggested same issue
btw the author is here @Kifixo
do you think that small bites number is the issue i used the exact same files as you
I’d suggest you to check md5 hashes before flashing. But that looks like a hardware fault more than a problem with the firmware, specifically, on the nand. It’s so weird it crashes like that when initializing the nand
