Help configuring clients' upstream DNS

Funtimes909 · March 23, 2025, 11:27am

Hi there, I am having an issue with OpenWRT Version 24.10.0 where after every reboot, the router incorrectly sets a DHCP Option in my LAN interface settings, causing all devices to be given an incorrect DNS server, I am completely unaware of what has been causing this issue and everything I've tried to fix it hasn't worked. Manually changing this setting back to it's default state completely fixes all issues.

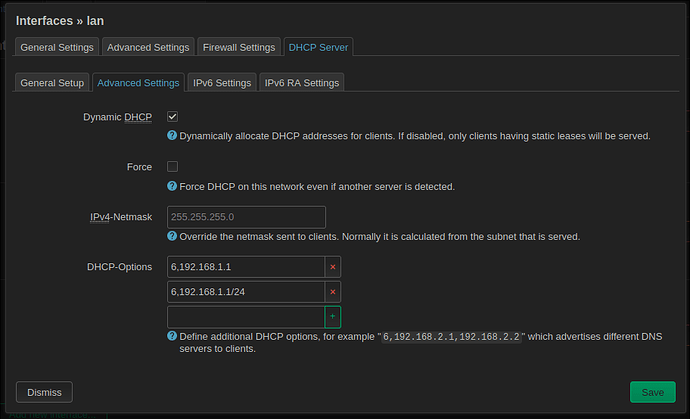

Incorrect setting (Gets changed everytime the router restarts)

Removing the DHCP Option entry "6,192.168.1.1/24" and reconnecting a client to the network gives it the correct DNS server. With this setting set incorrectly clients will be given "24.168.1.1" as DNS server and will not work.

Luci version: "LuCI openwrt-24.10 branch 25.014.55016~7046a1c"
OpenWRT version: "OpenWrt 24.10.0 r28427-6df0e3d02a"
Device: "ASUS RT-AX54"
Kernel: "6.6.73"

Please let me know if this isn't the correct place to report bugs/request help or for anymore information

frollic · March 23, 2025, 11:31am

With 192.168.1.1/24 should the client guess which IP the DNS is on ?

Did you see the example below the actual field ?

Then I guess your setting's ..... incorrect ?

User errors aren't bugs, unless the user's treated as the bug.
Asking questions is what this forum's for.

Funtimes909 · March 23, 2025, 11:50am

With 192.168.1.1/24 should the client guess which IP the DNS is on ?

This is what I thought as well, apparently not, it seems if providing a subnet it gives a set address to clients. I'm also not 100% sure if this is the correct place to define DNS settings for a LAN (There's many other places for DNS related settings...) But setting it to the routers IP address is the only setting that actually works

frollic · March 23, 2025, 11:53am

.... and your DNS is a subnet ?

For telling the clients, it is.

It's not, but it also depends on which other IPs you've tried.

And if you incorrectly use the options as in your screen shot, I can imagine only the 2nd, incorrect, line being forwarded to the clients.

Again, user errors aren't bugs.

lleachii · March 23, 2025, 11:58am

Just to be clear:

DHCP Options are not needed by default
DHCP Options are usually blank by default

Are you running some kind of script?

Funtimes909 · March 23, 2025, 12:07pm

I'm not running a script, this has been the setting used on my network for as long as I can remember, and removing all entries from there prevents everything from working, so I'm unsure of what to do

frollic · March 23, 2025, 12:09pm

The field is empty by default, and the DNS IP is the router's LAN IP, by default.

If you don't have DNS running there, isn't really the forum's fault...

lleachii · March 23, 2025, 12:11pm

What device is your intended DNS server - the OpenWrt or something else (and verify the IP is 192.168.1.1)?

Otherwise please excuse the vague replies, but we can't guess what you setup or desire.

Funtimes909 · March 23, 2025, 12:25pm

DNS is the router, 192.168.1.1 is the gateway and the DNS, I have a setup where it forwards requests from my LAN up to Quad9. If Interfaces > LAN > DHCP Server > Advanced Settings isn't the correct place to specify DNS for LAN, then could someone please help me figure out where the correct place to do it is (Removing all entries from DHCP Options causes nothing to work) I apologize for my lack of skills in making issues, I don't normally report issues I find haha.

frollic · March 23, 2025, 12:30pm

You've already been told it is ?

Just to make sure, restart dnsmasq afterwards.

Post your ipconfig /all from a win host.

So far, we haven't seen any "issues".

Dante · March 23, 2025, 12:38pm

Perhaps there's something else amiss with your setup, so please connect to your router using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

cat /etc/config/network
cat /etc/config/dhcp
cat /etc/config/firewall

lleachii · March 23, 2025, 12:41pm

On WAN (i.e. the interface with an Internet connection)

You don't need to setup a DHCP Option, OpenWrt assigns itself as local DNS automatically.
Although not sure why you asked, since you noted that you didn't make the configuration

frollic · March 23, 2025, 12:49pm

Or simply use 6,9.9.9.9 in the field you previously misconfigured, but it'll bypass your local DNS completely.
If it's a problem, or not, is for you to decide.

Funtimes909 · March 23, 2025, 12:56pm

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fdf4:1d30:7ca4::/48'
	option packet_steering '1'
	option steering_flows '128'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan1'
	list ports 'lan2'
	list ports 'lan3'
	list ports 'lan4'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ip6assign '60'
	list ipaddr '192.168.1.1/24'
	list dns '9.9.9.9'

config device
	option type '8021q'
	option ifname 'wan'
	option vid '10'
	option name 'wan.10'

config interface 'wan'
	option device 'wan.10'
	option proto 'dhcp'
	option vid '10'
	option peerdns '0'
	list dns '127.0.0.1'

config interface 'wan6'
	option device 'wan.10'
	option proto 'dhcpv6'
	option reqaddress 'try'
	option reqprefix 'auto'
	option peerdns '0'
	option norelease '1'
	list dns '::1'

root@OpenWRT:~# cat /etc/config/dhcp

config dnsmasq
	option localise_queries '1'
	option rebind_protection '1'
	option rebind_localhost '1'
	option local '/lan/'
	option expandhosts '1'
	option cachesize '10000'
	option authoritative '1'
	option leasefile '/tmp/dhcp.leases'
	option localservice '1'
	option ednspacket_max '1232'
	option logqueries '1'
	option confdir '/tmp/dnsmasq.d'
	option domain 'lan'
	option domainneeded '1'
	option doh_backup_noresolv '-1'
	option noresolv '1'
	option nonegcache '1'
	list server '127.0.0.1#53'
	option port '0'

config dhcp 'lan'
	option interface 'lan'
	option start '100'
	option limit '150'
	option leasetime '12h'
	option dhcpv4 'server'
	option dhcpv6 'server'
	option ra 'server'
	list ra_flags 'managed-config'
	list ra_flags 'other-config'
	list dhcp_option '6,192.168.1.1'

config dhcp 'wan'
	option interface 'wan'
	option ignore '1'
	option start '100'
	option limit '150'
	option leasetime '12h'

config odhcpd 'odhcpd'
	option maindhcp '0'
	option leasefile '/tmp/hosts/odhcpd'
	option leasetrigger '/usr/sbin/odhcpd-update'
	option loglevel '4'

root@OpenWRT:~# cat /etc/config/firewall

config defaults
	option input 'DROP'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'
	option drop_invalid '1'

config zone
	option name 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	list network 'lan'

config zone
	option name 'wan'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'
	list network 'wan'
	list network 'wan6'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

config redirect
	option dest 'lan'
	option target 'DNAT'
	option name 'HTTPS'
	option src 'wan'
	option src_dport '443'
	option dest_ip '192.168.1.210'
	option dest_port '443'

config redirect
	option dest 'lan'
	option target 'DNAT'
	option name 'HTTP'
	option src 'wan'
	option src_dport '80'
	option dest_ip '192.168.1.210'
	option dest_port '80'

I'd also just like to mention that I just tested it again and adding a DNS entry in Interfaces > LAN "Use custom DNS servers" doesn't actually give DNS to the clients, the only way I can get DNS servers to my clients is in this DHCP Options setting

frollic · March 23, 2025, 1:07pm

Doesn't do anything for the clients.

Probably breaks everything.

lleachii · March 23, 2025, 1:08pm

Add quad9's IPv6 server. This seems invalid.

Place on WAN instead.

Remove.

Don't see anything like that. Reboot and let us know the results.

Good catch on the IPv4 also poining to localhost too.

frollic · March 23, 2025, 1:37pm

Might be bad too.

@Funtimes909, reset to get rid of all the "bugs" you've created yourself.
Add the 6,9.9.9.9 to the DHCP config, and/or 9.9.9.9 on the wan interface, and you're good to go.

Funtimes909 · March 23, 2025, 1:49pm

I forgot to mention, the reason you see localhost for a few DNS related options is because I use SmartDNS for upstream DNS, routing DNS through there works fine, it's done for DNS over HTTPS and DNSSEC reasons. I kind of think this thread is going nowhere as I think I've been severely misunderstood and haven't done a good enough job providing information

frollic · March 23, 2025, 1:50pm

For fu-ks sake....

We're sorry for being terrible mind readers.

lleachii · March 23, 2025, 2:58pm

Interesting juxtaposition.

No worries, I'm glad you resolved the [internal/personal] conflicts yourself.
