GL.iNet GL-MT6000 - AQL and WiFi Latency

NinjaBreaker · June 24, 2024, 1:11am

I am not having the best of the results after a while. On my MT6000 after hours I get 'persistent Wireless's slowdowns.

Dumping the stats shows this:

cat /sys/kernel/debug/ieee80211/phy*/aql*
:
1
AC     AQL pending
VO     0 us
VI     0 us
BE     4960 us.     <---- this has become stuck, does not change after multiple dumps
BK     4 us
BC/MC  0 us
total  4964 us
24000
AC      AQL limit low   AQL limit high
VO      5000            5000
VI      5000            5000
BE      5000            5000
BK      5000            5000
BC/MC   50000

I have a 802.11s BATMAN + AP setup on SNAPSHOT, r26740.

I believe the tight AQL limits in my environment is exposing something.

I will revert to AQL defaults to monitor behaviour.

Gingernut · June 24, 2024, 5:38am

Only the 2.4GHz radio is affected right?

_FailSafe · June 24, 2024, 5:00pm

A few questions for you...

Are you running @pesa1234's build?

What firmware are you running? (dmesg | grep Firmware)

NinjaBreaker · June 25, 2024, 1:13am

Clean Snapshot and it's old MTK firmware, not pesa's build in my case.

[   12.112457] mt798x-wmac 18000000.wifi: WM Firmware Ve
rsion: ____000000, Build Time: 20221012174725
[   12.196474] mt798x-wmac 18000000.wifi: WA Firmware Ve
rsion: DEV_000000, Build Time: 20221012174937

Had to keep the MT6000 with aql_low:2500 & aql_high:12000 for now.

antonlindb · June 25, 2024, 7:56am

How come the TUF 6000 is performing significantly better? It’s not a secret that I’m a TUF 6000 fan-boy, but now I’m actually curious? Compare the equivalent graph for the MY-6000 and it’s a BIG difference in performance or am I missing something?

_FailSafe · June 25, 2024, 10:55am

I’m trying to follow here, but I’m a bit lost at the moment. Are you referring to this unit? https://openwrt.org/toh/asus/tuf-ax6000

Secondly, which graphs are you comparing specifically to where you’re seeing the significant performance difference?

antonlindb · June 25, 2024, 12:54pm

Gungernuts graph a few posts above

TUF Latency

_FailSafe · June 25, 2024, 1:19pm

I think this needs to be revisited. I'm not at all trying to put down the TUF AX6000 or TUF AX4000, but the graph @Gingernut posted doesn't seem to me to indicate a significant performance increase over the MT6000.

If you look at some of the more recent graphs I posted in another MT6000 thread for @pesa1234's build, we have been working hard to tune some AQL settings and achieved some pretty respectable results:

The graph that @Gingernut posted here seems to indicate some significant latency struggles especially in the combined test (third test on the graph). Those latency spikes have largely been smoothed out with tuning in @pesa1234's build.

antonlindb · June 26, 2024, 4:24am

Thanks for the explanation!

ed8 · June 30, 2024, 4:29am

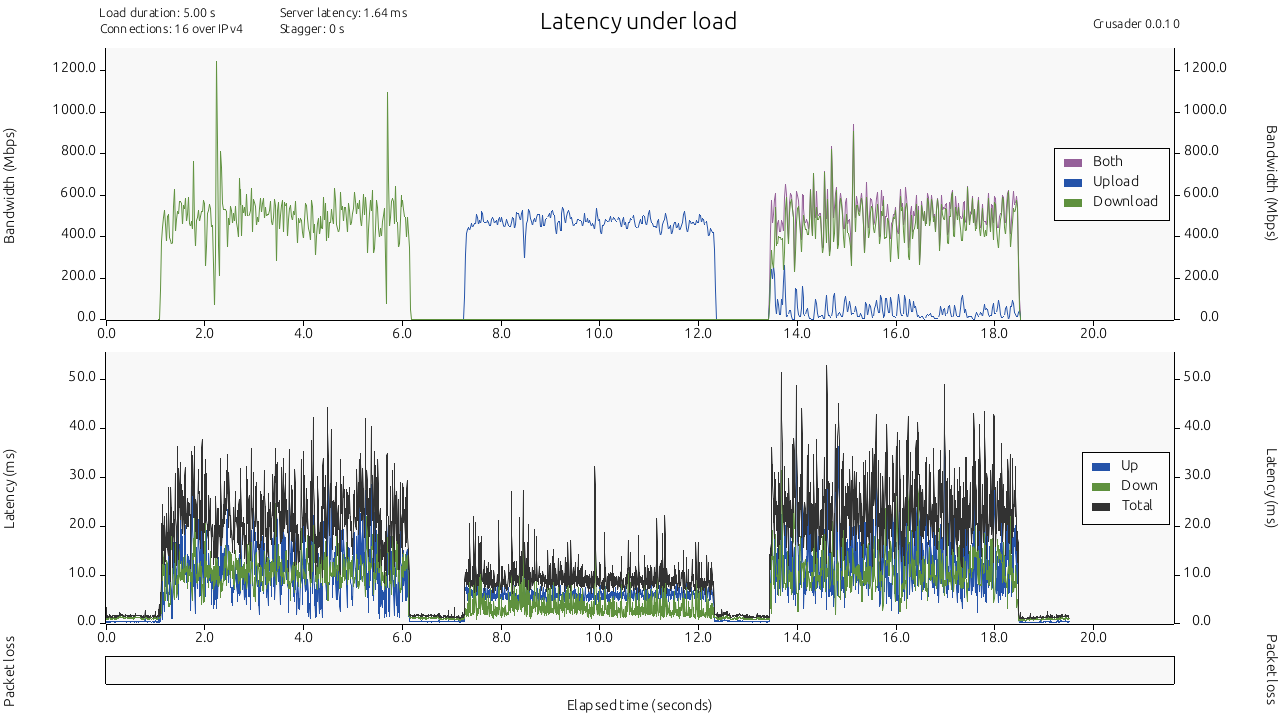

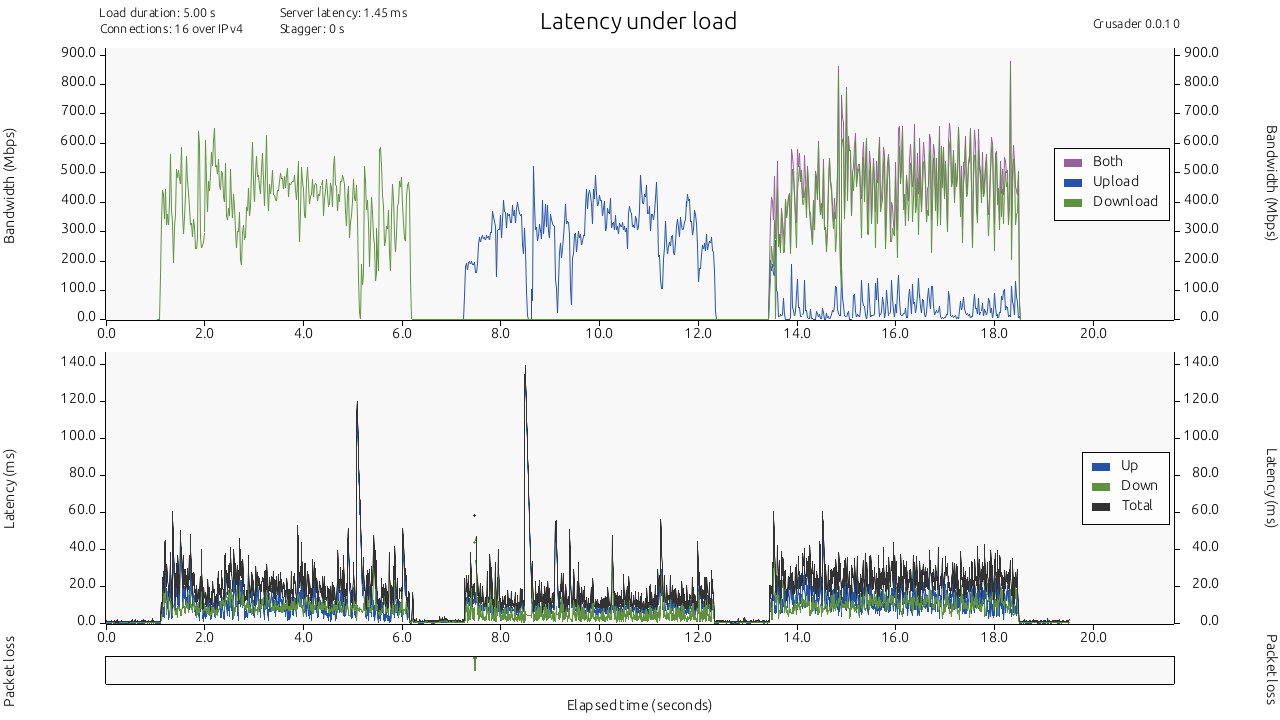

For comparison - my Crusader results using TP-Link EAP615 (ramips/mt7621) with OpenWrt snapshot from Jun23 - 5Ghz@80Mhz

AQL set to 5000/12000

AQL set to 1500/5000

Looks like using 1500/5000 results in latency improvement of >25%

edit: these results are from a test with 1 associated station - later Today I will retest with >3 associated stations

edit2: Retest with 5 associated stations

CH48 80MHz AQL 1500/5000 11:42

CH100 80MHz AQL 1500/5000 11:46

CH100 80MHz AQL 5000/12000 11:49

CH48 80MHz AQL 5000/12000 11:51

_FailSafe · June 30, 2024, 1:51pm

@dtaht Any thoughts on the testing that @ed8 did here?

dtaht · July 10, 2024, 8:18pm

Thought #1 - I should read the OpenWrt forums more often.
Thought #2 - what a difference a clean channel (100?) makes!!, and also how hardware retries muck with things
Thought #3 - I wish crusaders graphs were as directly comparable as flent's. In particular I care that the AQM get tested and this test does not do that. (well, the slope of the crusader staggered start test sort of does). A packet capture can help too, with the RTT plot from Wireshark (tcptrace -G, and an xplot.org also)

But to me the lowered AQL values seem to indicate goodness across the board.

Regrettably I don't have the mental energy to understand all else that under test? If you care (as I do) that a gaming wifi station do better with multiple stations present, flent's rtt_fair test is good, and anything consistently less than 20ms is good.

NinjaBreaker · July 11, 2024, 8:44pm

Using 2500/5000 again now but on updated SNAPSHOT, r26912 for the MT6000. Looks better & stable now and nothing seems to be getting stuck after 16 hours.

_FailSafe · July 11, 2024, 9:00pm

That's awesome news! Out of curiosity, have you tried running @pesa1234's build?

phinn · July 12, 2024, 10:56pm

Yea I've been keeping low the same and messing with larger high settings. Currently doing AQL of 2500/8000 for a little more peak throughput with nice results. Running the latest snapshot on 6.6.38 with some various tweaks.

NinjaBreaker · August 9, 2024, 1:46pm

I have settled on AQL high of 8000 too

NinjaBreaker · November 13, 2024, 2:07pm

You know @phinn, I have enjoyed this thread and it turns out one can go beyond just the AQL hi/lo limits.

I see in my environment cases where AQL tracking hit out of memory and stop for short bursts impacting wireless bufferfloat, the live stats can be dumped further with:

grep . /sys/kernel/debug/ieee80211/phy*/aqm

You will see fq_overmemory and fq_overlimit counters.

Given the beast this MT6000 is I have settled on a lil more complex override now such as this:

for phy in $(find /sys/kernel -name 'phy[0-9]'); do
  (cd $phy
   l=1500
   h=8000
   echo 0 $l $h > "$phy/aql_txq_limit"
   echo 1 $l $h > "$phy/aql_txq_limit"
   echo 2 $l $h > "$phy/aql_txq_limit"
   echo 3 $l $h > "$phy/aql_txq_limit"
   echo 12000   > "$phy/aql_threshold"

   # Increase the FQ-CoDel buffer
   echo "fq_limit 10240"           > "$phy/aqm"
   echo "fq_quantum 256"           > "$phy/aqm"
   echo "fq_memory_limit 33554432" > "$phy/aqm"
  );
done

And it performs so far better for my use case, sharing in case anyone is curious on tuning the FQ-CoDel params for their environment too.

SiXX · November 14, 2024, 5:38am

Are those FQ-CoDel params only applicable when running SQM? Pardon my ignorance.

NinjaBreaker · November 14, 2024, 6:05am

They are for the wireless AQM specifically, check this commit for more info about what it does.

github.com/torvalds/linux

mac80211: Implement Airtime-based Queue Limit (AQL)

committed 12:36PM - 22 Nov 19 UTC

kan-yan

+244 -14

In order for the Fq_CoDel algorithm integrated in mac80211 layer to operate effe…ctively to control excessive queueing latency, the CoDel algorithm requires an accurate measure of how long packets stays in the queue, AKA sojourn time. The sojourn time measured at the mac80211 layer doesn't include queueing latency in the lower layer (firmware/hardware) and CoDel expects lower layer to have a short queue. However, most 802.11ac chipsets offload tasks such TX aggregation to firmware or hardware, thus have a deep lower layer queue. Without a mechanism to control the lower layer queue size, packets only stay in mac80211 layer transiently before being sent to firmware queue. As a result, the sojourn time measured by CoDel in the mac80211 layer is almost always lower than the CoDel latency target, hence CoDel does little to control the latency, even when the lower layer queue causes excessive latency. The Byte Queue Limits (BQL) mechanism is commonly used to address the similar issue with wired network interface. However, this method cannot be applied directly to the wireless network interface. "Bytes" is not a suitable measure of queue depth in the wireless network, as the data rate can vary dramatically from station to station in the same network, from a few Mbps to over Gbps. This patch implements an Airtime-based Queue Limit (AQL) to make CoDel work effectively with wireless drivers that utilized firmware/hardware offloading. AQL allows each txq to release just enough packets to the lower layer to form 1-2 large aggregations to keep hardware fully utilized and retains the rest of the frames in mac80211 layer to be controlled by the CoDel algorithm. Signed-off-by: Kan Yan <kyan@google.com> [ Toke: Keep API to set pending airtime internal, fix nits in commit msg ] Signed-off-by: Toke Høiland-Jørgensen <toke@redhat.com> Link: https://lore.kernel.org/r/20191119060610.76681-4-kyan@google.com Signed-off-by: Johannes Berg <johannes.berg@intel.com>

:
This patch implements an Airtime-based Queue Limit (AQL) to make CoDel work
effectively with wireless drivers that utilized firmware/hardware
offloading. AQL allows each txq to release just enough packets to the lower
layer to form 1-2 large aggregations to keep hardware fully utilized and
retains the rest of the frames in mac80211 layer to be controlled by the
CoDel algorithm.
:

This is independent of the SQM you do on WAN, and it helps with wireless bufferfloat by tons.

phinn · November 14, 2024, 12:45pm

Nice link added to that to the MT6000 doc page. It's interesting to see the original TXQ limits and threadhold are essentially unchanged since the initial commit. Of course they are sensible values for throughput so not knocking it, but we can clearly do a little better with latency.

Btw your script is quite good well done.
