FriendlyARM NanoPi R2S crashes with new firmware

[fortuna]

So the NanoPi R2s worked fine ever since July 2021. I compiled a new firmware from time to time, flashed it and it worked.

Until I tried v23.05.3 earlier this year. The router started to crash. It became completely unresponsive. No response to ping, no internet, nothing. Turns out it crashed after approx. 24 days. Only a power cycle gets it running again.

I decided to go back to the last working firmware: 22.03.3.

A few days ago I decided to give it another try. With 22.03.7 this time. I compile a new firmware, flash it and it crashes today, after only two days.

What can be the problem? How do I find out why it crashes if it is impossible to even login?

[brada4]

Can you flash standard firmware from firmware-selector.openwrt.org
23.05.5 and maube 24.10-rcX ?
I used to have one, it was running extremely hot for semi-closed locker it had to be in.

[fortuna]

That is a bit difficult because it is running a router / gateway for about 20 machines / devices.

I've had collectd running over years and the only long term changes it shows correspond to changes in ambient temperature. The NanoPi is tied to the metal frame of a hallway wall unit that works as a huge heat sink .

[brada4]

Lucky you.... Try to find some thermal indicator in /sys/....
Coolest version is the best.

[fortuna]

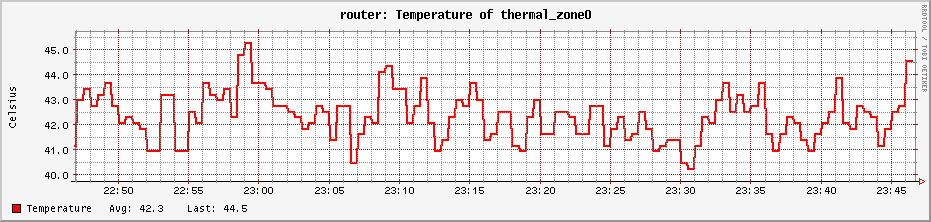

DEFFO. It's running now at 42.2 C. Never more than 45 C. Not even in summer.

BTW, here is the temperature: /sys/class/thermal/thermal_zone0/temp

Anyway, if this 22.03.7 firmware made it run hot, the problem would still be the firmware, not the device or its heat sink. Right?

[fortuna]

Today, again two days after reboot, I noticed that ksoftirqd/1 had started to rise to over 10% from time to time.

Searching for this particular process I found that it's recommended to enable Packet Steering for this device and reboot so that's what I did.

[brada4]

ksoftirqd is immediate processes after hardware interrupt is handled - firewall and qdisc on a router, disk schedulers and video sync in other devices.

First check cat /proc/interrupts -> if same device looks like having multiple IRQ-s start with irqbalance (enable and start after install) to spread interrupts across cores.

[fortuna]

root@router:~# cat /proc/interrupts
           CPU0       CPU1       CPU2       CPU3
 11:     521023     655772    1550027     982197     GICv2  30 Level     arch_timer
 14:          0          0          0          0     GICv2  32 Level     ff1f0000.dmac
 15:          0          0          0          0     GICv2  33 Level     ff1f0000.dmac
 20:          5          0          0          0     GICv2  89 Level     ttyS2
 21:     268263          0          0          0     GICv2  69 Level     ff160000.i2c
 23:          0          0          0          0     GICv2  90 Level     rockchip_thermal
 32:          0          0          0          0     GICv2  43 Level     ff350800.iommu
 33:     127720          0          0          0     GICv2  44 Level     dw-mci
 34:          0    6738171          0          0     GICv2  56 Level     eth0
 36:          0          0          0          0     GICv2  48 Level     ehci_hcd:usb1
 37:          0          0          0          0     GICv2  49 Level     ohci_hcd:usb2
 42:          0          0          0          0     GICv2  94 Level     rockchip_usb2phy
 43:        356          0   10829424          0     GICv2  99 Level     xhci-hcd:usb3
 44:          0          0          0          0  rockchip_gpio_irq  24 Level     rk805
 50:          0          0          0          0     rk805   5 Edge      RTC alarm
 53:          0          0          0          0  rockchip_gpio_irq   0 Edge      keys
IPI0:    266303     228815     181501     196813       Rescheduling interrupts
IPI1:   3135983     837076    1786315    1785391       Function call interrupts
IPI2:         0          0          0          0       CPU stop interrupts
IPI3:         0          0          0          0       CPU stop (for crash dump) interrupts
IPI4:    437124     334838     465230     665449       Timer broadcast interrupts
IPI5:     24183      29260      28841      27507       IRQ work interrupts
IPI6:         0          0          0          0       CPU wake-up interrupts
Err:          0

Where do I look for the answer to your question?

[brada4]

Interrupts are balanced across cpu-s
cpu1 holds eth0 card, if ethtool -g/-G is supporyed you may get multiple interrupts, if not click steering (and keep irqbalance)

[fortuna]

I installed irqbalance. How can I see the effect?

CPU3 started to handle eth0 interrupts according to /proc/interrupts. Is that OK?

[brada4]

Yep, it works as expected.

Run

iperf3 --bidir -c <server>

Servers: https://iperf.fr/iperf-servers.php
From some client on LAN side, it should not hit 100% on that ethernet CPU, and sometimes re-balance, and sooner or later settle on some layout.

[fortuna]

I've used iperf3 for years but I didn't know public iPerf3 servers. I hadn't even thought of searching for them

irqbalance seems to work. Now hope it doesn't crash again.

Many thanks @brada4

[brada4]

While you are near it you can try other stress/heat test
Run 1-2 per processor (killall yes to stop)

nice yes > /dev/null &

Then watch temperature.

[fortuna]

Will do later, at a more appropriate moment. If the router crashes and my family find out it was done deliberately, just to run a test, they will come for me

BTW, if the core temperature were a problem, limiting its frequency would be a solution. I've done that successfully with a Raspberry Pi 3B+ in the past. I managed to prevent throttling by lowering the CPU speed once set up a webRTC session remotely.

Is there anything in OpenWrt for this? It seems there is no cpufrequtils package.

However, reading /sys/devices/system/cpu/cpufreq/policy0/cpuinfo_cur_freq gives encouraging results:

1008000 (most of the time)
816000  (less frequently)
408000  (rare)

Although the numbers are a bit weird, they suggest there is already a policy in place.

This is an overview of what's in the /sys/devices/system/cpu/cpufreq/policy0 folder:

affected_cpus:    0 1 2 3
cpuinfo_cur_freq: 816000
cpuinfo_max_freq: 1296000
cpuinfo_min_freq: 408000
cpuinfo_transition_latency: 68000
related_cpus:     0 1 2 3
scaling_available_frequencies: 408000 600000 816000 1008000 1200000 1296000
scaling_available_governors: powersave performance schedutil
scaling_cur_freq: 816000
scaling_driver:   cpufreq-dt
scaling_governor: schedutil
scaling_max_freq: 1296000
scaling_min_freq: 408000
scaling_setspeed: <unsupported>

What does cpufreq-dt driver mean?

Can I just write e.g. 1008000 to scaling_max_freq without breaking anything?

[brada4]

that dt ?devicetree? frequency switching driver is used on system, it is not a PC where you have like acpi or amd selectable.
