DNS issue with OpenWRT powered AP

ridzzmd · November 18, 2025, 1:44pm

I have the following setup for my home internet.
1x Xiaomi AX6S AX3200 as Router.
2x Xiaomi RB06 AX6000 as AP.
1x OrangePI 3 LTS running DietPI.

I am able to run opkg update just fine on all devices above when using router default DNS. The issue start when I try to configure/force the DNS to use PiHole that is running on DietPI. I can run okpg update just fine on the router, but not on the AP. The changes that I have made are as follow:

Login to router. Go to Network > Interfaces > lan > Click on Edit button. Go to DHCP server > Advanced Settings tab > Go to DHCP-Options and enter “6,PiHole Ip address”.

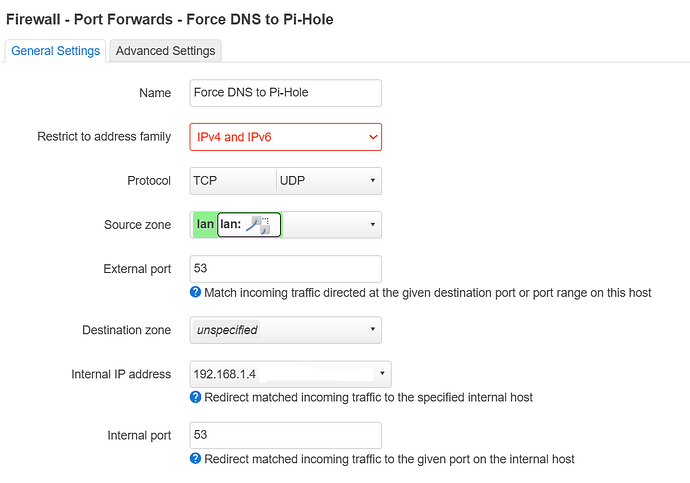

Edit /etc/config/firewall to force the traffic to go to Pi-Hole DNS server as per screenshot attached.

port_forward1015×711 45.4 KB

Error that I am getting as follow:

Executing package manager

opkg update

Downloading https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/packages/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/packages/Packages.gz

Downloading https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/base/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/base/Packages.gz

Downloading https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/kmods/6.6.110-1-6a9e125268c43e0bae8cecb014c8ab03/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/kmods/6.6.110-1-6a9e125268c43e0bae8cecb014c8ab03/Packages.gz

Downloading https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/luci/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/luci/Packages.gz

Downloading https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/packages/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/packages/Packages.gz

Downloading https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/routing/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/routing/Packages.gz

Downloading https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/telephony/Packages.gz
*** Failed to download the package list from https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/telephony/Packages.gz

Errors

Failed to send request: Operation not permitted
Failed to send request: Operation not permitted
Failed to send request: Operation not permitted
Failed to send request: Operation not permitted
Failed to send request: Operation not permitted
Failed to send request: Operation not permitted
Failed to send request: Operation not permitted
Collected errors:
 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/packages/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/base/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/kmods/6.6.110-1-6a9e125268c43e0bae8cecb014c8ab03/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/luci/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/packages/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/routing/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

 * opkg_download: Failed to download https://downloads.openwrt.org/releases/24.10.4/packages/aarch64_cortex-a53/telephony/Packages.gz, wget returned 4.
 * opkg_download: Check your network settings and connectivity.

The opkg update command failed with code 7.

frollic · November 18, 2025, 2:13pm

delete the rule, and everything works ?

do you have a default gw and DNS IP (whichever) set on the AP ?

brada4 · November 18, 2025, 2:15pm

You need TWO rules - one for IP4 other for IP6.
and exclude pihole's IPs from forcing.

config redirect 'dns_int4'
        option name 'Intercept-DNS4'
        option src 'lan'
        option src_dport '53'
        option proto 'tcp udp'
        option family 'ipv4'
        option target 'DNAT'
        option enabled '0'

config redirect 'dns_int6'
        option name 'Intercept-DNS6'
        option src 'lan'
        option src_dport '53'
        option proto 'tcp udp'
        option family 'ipv6'
        option target 'DNAT'
        option enabled '0'

ridzzmd · November 18, 2025, 2:19pm

@frollic , if I remove PiHole related configuration everything will as normal again. One thing that I forgot to mention, AP is using DHCP client, I did not set the static ip.

frollic · November 18, 2025, 2:21pm

for the AP itself you don't need any DNS catching, it'll honor the 6 option in DHCP.

you're not by any chance creating a DNS loop, because of missing
https://openwrt.org/docs/guide-user/firewall/fw3_configurations/intercept_dns#dns_redirection ?
or is it only the AP itself that got DNS issues ?

brada4 · November 18, 2025, 2:24pm

There are IoTs and android TVs using fixed upstreams, you need that interception to be in control.

frollic · November 18, 2025, 2:25pm

I know, but that's not what I'm trying to say...

ridzzmd · November 18, 2025, 2:26pm

@frollic , only AP that having this issue. router can run the command just fine.

frollic · November 18, 2025, 2:27pm

I mean clients of AP, not main router.

post your AP's /etc/config/network and /etc/config/firewall.

hecatae · November 18, 2025, 2:34pm

I'm surprised you have not asked why are they running opkg update

ridzzmd · November 18, 2025, 2:35pm

/etc/config/network

root@RB06:~# vi /etc/config/network
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'

config globals 'globals'
option ula_prefix 'fd2c:eee9:ae5d::/48'
option packet_steering '1'

config device
option name 'br-lan'
option type 'bridge'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
option macaddr 'XX:XX:XX:XX:CB:49'

config interface 'lan'
option device 'br-lan'
option proto 'dhcp'

config device
option name 'wan'
option macaddr 'XX:XX:XX:XX:d8:48'

config interface 'wan'
option device 'wan'
option proto 'dhcp'

config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'

config device
option name 'lan4'
option macaddr 'XX:XX:XX:XX:CB:4D'

config device
option name 'lan3'
option macaddr 'XX:XX:XX:XX:CB:4C'

config device
option name 'lan2'
option macaddr 'XX:XX:XX:XX:CB:4B'

/etc/config/firewall.

root@RB06:~# vi /etc/config/firewall
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'

config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'

config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'

config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'

frollic · November 18, 2025, 2:41pm

provide the below, too

ls -l  /etc/resolv.* /tmp/resolv.* /tmp/resolv.*/* ; head -n -0 /etc/resolv.* /tmp/resolv.* /tmp/resolv.*/*

+

nslookup downloads.openwrt.org

ridzzmd · November 18, 2025, 2:50pm

root@RB06:~# ls -l /etc/resolv.* /tmp/resolv.* /tmp/resolv./ ; head -n -0 /et
c/resolv.* /tmp/resolv.* /tmp/resolv./
lrwxrwxrwx 1 root root 16 Oct 20 00:37 /etc/resolv.conf -> /tm p/resolv.conf
lrwxrwxrwx 1 root root 35 Nov 18 11:03 /tmp/resolv.conf -> /tm p/resolv.conf.d/resolv.conf.auto
-rw-r--r-- 1 root root 50 Nov 18 11:03 /tmp/resolv.conf.d/reso lv.conf.auto

/tmp/resolv.conf.d:
-rw-r--r-- 1 root root 50 Nov 18 11:03 resolv.conf.auto
==> /etc/resolv.conf <==

Interface lan

nameserver 192.168.1.4
search lan

==> /tmp/resolv.conf <==

Interface lan

nameserver 192.168.1.4
search lan

==> /tmp/resolv.conf.d <==
head: /tmp/resolv.conf.d: I/O error

==> /tmp/resolv.conf.d/resolv.conf.auto <==

Interface lan

nameserver 192.168.1.4
search lan
root@RB06:~#

root@RB06:~# nslookup downloads.openwrt.org
nslookup: write to '127.0.0.1': Connection refused
;; connection timed out; no servers could be reached

frollic · November 18, 2025, 2:51pm

you've told your AP to use localhost as default DNS.

ridzzmd · November 18, 2025, 2:53pm

AP is set as DHCP client. Does that means if we are using PiHole as DNS server, I need to set the IP for AP as static?

frollic · November 18, 2025, 2:55pm

the DNS IP from the DHCP is there, you override it in your settings.

ridzzmd · November 18, 2025, 3:04pm

@frollic is there a way for me to check that setting from LuCI? Is it on DHCP and DNS > Filter

frollic · November 18, 2025, 3:07pm

I'm guessing

but you could reset, and configure your AP to be a DHCP client again.

egc · November 18, 2025, 3:56pm

I think it might be this:

If DNSMasq is running (and usually it is) make sure you disable 'localuse'.

If DNSMasq localuse is enabled it will rewrite /etc/resolv.conf to use 127.0.0.1 (meaning using DNSMasq)

Of course you can add the main router as upstream resolver in DNSMasq which also should do the trick

ridzzmd · November 18, 2025, 4:05pm

@egc, DNSMasq and firewall are disabled on AP. They are just dump AP.
