Can we define different ip blocks for each ssid we create?
For example;
ssid 1 -> 192.168.10.1 -> dhcp starting at 192.168.10.100
ssid 2 -> 192.168.20.1 -> dhcp starting at 192.168.20.100
ssid 3 -> 10.10.1.1.1 -> dhcp starting at 10.10.1.100
https://openwrt.org/docs/guide-user/network/wifi/guestwifi/configuration_webinterface
Take a look at how guest networks work.
What you're trying to do is similar, except that you
- don't want a guest firewall zone but can simply reuse the lan firewall zone
- might want to add a new firewall zone that allows traffic "from lan to lan" (I'm actually not sure if that's really needed, but changes are it is).
If all your networks belong to the lan firewall zone, they will all be shown green.
If you don't want to connect multiple hardware access points that all provide the same three networks and don't want to connect other wired devices to those new physical networks, you're done. If you do want to have one of those happen, you need to read up on vlan and tagged ports. But you can get away with not knowing and configuring those if you only want three wifi networks.
1 Like
tried this but there is no internet connection.
Let’s review the configuration to understand why…
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
Remember to redact passwords, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall
system board :
{
"kernel": "5.15.134",
"hostname": "OpenWrt",
"system": "MediaTek MT7621 ver:1 eco:3",
"model": "Xiaomi Mi Router 4A Gigabit Edition",
"board_name": "xiaomi,mi-router-4a-gigabit",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05.0",
"revision": "r23497-6637af95aa",
"target": "ramips/mt7621",
"description": "OpenWrt 23.05.0 r23497-6637af95aa"
}
}
network :
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fdca:440c:5655::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
config interface 'lan'
option device 'br-lan'
option proto 'dhcp'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
config device
option type 'bridge'
option name 'br-guest'
option bridge_empty '1'
config interface 'guest'
option proto 'static'
option device 'br-guest'
option ipaddr '192.168.10.1'
option netmask '255.255.255.0'
option gateway '192.168.1.1'
wireless :
config wifi-device 'radio0'
option type 'mac80211'
option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0'
option channel '1'
option band '2g'
option htmode 'HT20'
option cell_density '0'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid xxxxxx'
option encryption 'wpa2'
option auth_server 'xxxxxx'
option auth_secret 'xxxxxx'
config wifi-device 'radio1'
option type 'mac80211'
option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
option channel '36'
option band '5g'
option htmode 'VHT80'
option cell_density '0'
config wifi-iface 'wifinet2'
option device 'radio0'
option mode 'ap'
option ssid 'xxxxxx'
option encryption 'psk2'
option key 'xxxxxx'
option network 'lan'
option isolate '1'
config wifi-iface 'wifinet3'
option device 'radio1'
option mode 'ap'
option ssid 'xxxxxx'
option encryption 'psk2'
option key 'xxxxxx'
option network 'lan'
option isolate '1'
config wifi-iface 'wifinet4'
option device 'radio1'
option mode 'ap'
option ssid 'xxxxxx'
option encryption 'wpa2'
option auth_server 'xxxxxx'
option auth_secret 'xxxxxx'
option network 'lan'
config wifi-iface 'wifinet5'
option device 'radio0'
option mode 'ap'
option ssid 'Guest'
option encryption 'psk2'
option key 'Guest'
option network 'guest'
dhcp :
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
config dhcp 'guest'
option interface 'guest'
option start '100'
option limit '150'
option leasetime '12h'
firewall :
config defaults
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option synflood_protect '1'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
config zone
option name 'wan'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config zone
option name 'guest'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
list network 'guest'
config forwarding
option src 'guest'
option dest 'wan'
config rule
option name 'Allow-DNS-Guest'
option src 'guest'
option dest_port '53'
option target 'ACCEPT'
config rule
option name 'Allow-DHCP-Guest'
option src 'guest'
option dest_port '67'
option target 'ACCEPT'
Remove the gateway. Then restart and test again.
But… this doesn’t appear to be the main router. Instead, it looks like a bridged AP. Can you confirm?
I did this still no internet connection.
how can I confirm this? it's connected to tp-link switch from lan port. wan port is empty, so I think it's an AP as you guess.
Yes, it must be if you're not using the wan.
Edit the lan firewall zone to look like this (just adding the masquerading):
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
option masq '1'
Then add this:
config forwarding
option src 'guest'
option dest 'lan'
Do you want to prevent the guest network from accessing the lan? If so... we need one more piece of information:
ifstatus lan | grep address -A 1
1 Like
yes, I want to seperate guests from home network.
ifstatus
"addresses",
"routes",
--
"ipv4-address": [
{
"address": "192.168.1.5",
"mask": 24
--
"ipv6-address": [
--
"ipv4-address": [
--
"ipv6-address": [

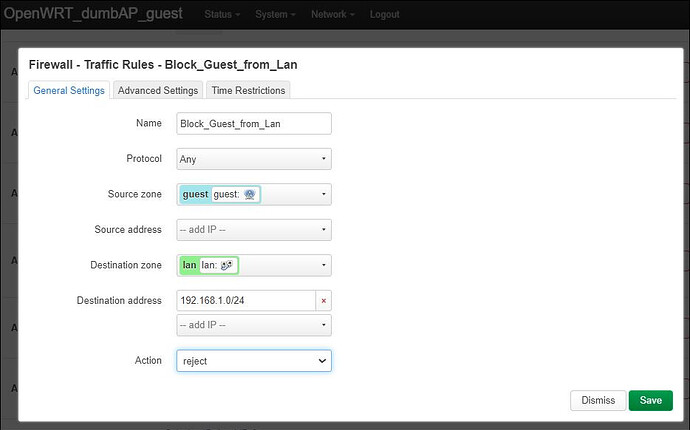

Ok... so you'll add a firewall rule to achieve the block. You can follow the last screenshot in the "Firewall part 2" section of this tutorial:
2 Likes
thanks for your help.
if I activate this rule, internet connection lost.
Let's take a look at the firewall config file again.
I've add a zone forward rule for port 80 and 443 and now it's ok. I'm sending the firewall config file anyway.

config defaults
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option synflood_protect '1'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
option masq '1'
config zone
option name 'wan'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config zone
option name 'guest'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
list network 'guest'
config forwarding
option src 'guest'
option dest 'wan'
config rule
option name 'Allow-DNS-Guest'
option src 'guest'
option dest_port '53'
option target 'ACCEPT'
config rule
option name 'Allow-DHCP-Guest'
option src 'guest'
option dest_port '67'
option target 'ACCEPT'
config forwarding
option src 'guest'
option dest 'lan'
config rule
option name 'Allow-Internet-Guest'
option src 'guest'
option dest_port '80-443'
option target 'ACCEPT'
option dest '*'
config rule
option name 'Block-Guest-From-LAN'
option dest 'lan'
option target 'REJECT'
option src 'guest'
list proto 'tcp'
list proto 'udp'
list proto 'icmp'
config zone
option name 'mibox'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
list network 'mibox'
config forwarding
option src 'mibox'
option dest 'wan'
config forwarding
option src 'mibox'
option dest 'lan'
config rule
option name 'Allow-DNS-Mibox'
option dest_port '53'
option target 'ACCEPT'
option src 'mibox'
config rule
option name 'Allow-DHCP-Mibox'
option dest_port '67'
option target 'ACCEPT'
option src 'mibox'
You didn't follow the guidance on the tutorial.
You can either delete and recreate or modify the rule:
oh yes, I forgot to add 192.168.1.0/24 my bad sorry.
Yeah, and you also should just set protocol to any.
