Hello, I have a Xiaomi AX3000T router with the latest version of opemwrt installed. I deleted all the Wpad packages, installed Wpad, and restarted the device. Then, when I connected to the eduroam network from the Wi-Fi settings, I established the connection, but the device acts as if there is no signal and since there are almost no resources related to eduroam, I wanted to ask here. By the way, I can connect to the eduroam network with my Android phone without any problems.
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button (red circle; this works best in the 'Markdown' composer view in the blue oval):
Remember to redact passwords, VPN keys, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall
iwinfo
opkg list-installed | grep -e wpad -e hostap -e supplicant

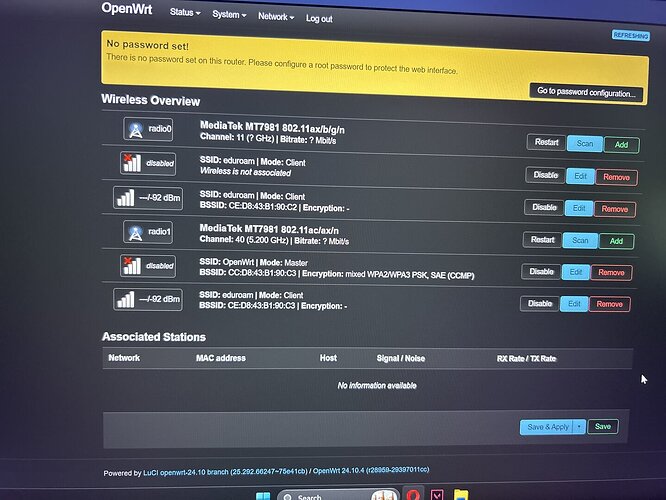

You can delete the picture, it shows a connected client completely ruining your scenario description.
Probably try to get supplicant conf on some linux derived from this https://github.com/geteduroam/linux-app
"kernel": "6.6.110",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Xiaomi Mi Router AX3000T",
"board_name": "xiaomi,mi-router-ax3000t",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.4",
"revision": "r28959-29397011cc",
"target": "mediatek/filogic",
"description": "OpenWrt 24.10.4 r28959-29397011cc",
"builddate": "1760891865"
}
}
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.110",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Xiaomi Mi Router AX3000T",
"board_name": "xiaomi,mi-router-ax3000t",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.4",
"revision": "r28959-29397011cc",
"target": "mediatek/filogic",
"description": "OpenWrt 24.10.4 r28959-29397011cc",
"builddate": "1760891865"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd83:322f:5436::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.2.1'
option netmask '255.255.255.0'
option ip6assign '60'
config device
option name 'wan'
option macaddr 'cc:d8:43:18:64:30'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
config interface 'wwan'
option proto 'dhcp'
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/18000000.wifi'
option band '2g'
option channel '11'
option htmode 'HT20'
option country 'PA'
option cell_density '0'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/18000000.wifi+1'
option band '5g'
option channel '44'
option htmode 'VHT80'
option country 'PA'
option cell_density '0'
config wifi-iface 'eduroam_5GHz'
option device 'radio0'
option mode 'sta'
option ssid 'eduroam'
option encryption 'wpa2+ccmp'
option eap_type 'peap'
option identity 'xxx@ozu.edu.tr'
option anonymous_identity 'anonymous'
option password 'xxxxxxxx'
option auth 'EAP-MSCHAPV2'
option network 'wwan'
config wifi-iface 'wifinet1'
option device 'radio1'
option mode 'sta'
option network 'wwan'
option ssid 'Ediz iPhone 14'
option encryption 'psk2'
option key 'xxxxxx'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
option piofolder '/tmp/odhcpd-piofolder'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option syn_flood '1'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
config zone
option name 'wan'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
list network 'wwan'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
root@OpenWrt:~# iwinfo
phy0-sta0 ESSID: unknown
Access Point: CC:D8:43:B1:90:C2
Mode: Client Channel: unknown (unknown) HT Mode: NOHT
Center Channel 1: unknown 2: unknown
Tx-Power: 26 dBm Link Quality: unknown/70
Signal: unknown Noise: -92 dBm
Bit Rate: unknown
Encryption: unknown
Type: nl80211 HW Mode(s): 802.11ax/b/g/n
Hardware: embedded [MediaTek MT7981]
TX power offset: none
Frequency offset: none
Supports VAPs: yes PHY name: phy0
phy1-sta0 ESSID: "Ediz iPhone 14"
Access Point: CC:D8:43:B1:90:C3
Mode: Client Channel: 44 (5.220 GHz) HT Mode: VHT80
Center Channel 1: 42 2: unknown
Tx-Power: 28 dBm Link Quality: 70/70
Signal: -36 dBm Noise: -92 dBm
Bit Rate: 1080.6 MBit/s
Encryption: unknown
Type: nl80211 HW Mode(s): 802.11ac/ax/n
Hardware: embedded [MediaTek MT7981]
TX power offset: none
Frequency offset: none
Supports VAPs: yes PHY name: phy1
root@OpenWrt:~# opkg list-installed | grep -e wpad -e hostap -e supplicant
hostapd-common - 2024.09.15~5ace39b0-r2
wpad - 2024.09.15~5ace39b0-r2
Thats crippled non-ssl wpad, install wpad-mbedtls
Please correct country code.
1 Like
Disable or remove all the client wifi interfaces except one. Only one can have control of the wwan interface at a time.
Anonymous identity should be "@ozu.edu.tr" so the request can be identified and forwarded to your home institution, but without your username. (The operator of the network you connect to and various other third parties will necessarily see that you're someone from OZU, but won't have your name). After contact is made to your institution, the complete identity with username is sent encrypted end to end inside a TLS tunnel.
2 Likes
Thanks for your answers, I solved the problem thanks to @brada4
