Hi.
I have an x86 router with a miniWLAN MPE-8265AC.
I managed to get the 2.4 band, but at 5 Hz or in AC mode, the card seems to start, but I don't see the network form other devices.
I also noticed something strange. When I add a second access point to LUCI and change its parameters, they also change on the first one. Is that how it should be?
root@Pupircha:~# ubus call system board
{
"kernel": "6.6.110",
"hostname": "Pupircha",
"system": "Intel(R) Celeron(R) CPU N2940 @ 1.83GHz",
"model": "To be filled by O.E.M. To be filled by O.E.M.",
"board_name": "to-be-filled-by-o-e-m-to-be-filled-by-o-e-m",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.4",
"revision": "r28959-29397011cc",
"target": "x86/64",
"description": "OpenWrt 24.10.4 r28959-29397011cc",
"builddate": "1760891865"
}
}
root@Pup
root@Pupircha:~# iw list
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 20
max scan IEs length: 413 bytes
max # sched scan SSIDs: 20
max # match sets: 11
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* P2P-client
* P2P-GO
* P2P-device
Band 1:
Capabilities: 0x11ef
RX LDPC
HT20/HT40
SM Power Save disabled
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 3839 bytes
DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: 4 usec (0x05)
HT Max RX data rate: 300 Mbps
HT TX/RX MCS rate indexes supported: 0-15
Frequencies:
* 2412.0 MHz [1] (22.0 dBm)
* 2417.0 MHz [2] (22.0 dBm)
* 2422.0 MHz [3] (22.0 dBm)
* 2427.0 MHz [4] (22.0 dBm)
* 2432.0 MHz [5] (22.0 dBm)
* 2437.0 MHz [6] (22.0 dBm)
* 2442.0 MHz [7] (22.0 dBm)
* 2447.0 MHz [8] (22.0 dBm)
* 2452.0 MHz [9] (22.0 dBm)
* 2457.0 MHz [10] (22.0 dBm)
* 2462.0 MHz [11] (22.0 dBm)
* 2467.0 MHz [12] (22.0 dBm)
* 2472.0 MHz [13] (22.0 dBm)
* 2484.0 MHz [14] (disabled)
Band 2:
Capabilities: 0x11ef
RX LDPC
HT20/HT40
SM Power Save disabled
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 3839 bytes
DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: 4 usec (0x05)
HT Max RX data rate: 300 Mbps
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x039071b0):
Max MPDU length: 3895
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformee
MU Beamformee
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
VHT extended NSS: supported
Frequencies:
* 5180.0 MHz [36] (22.0 dBm) (no IR)
* 5200.0 MHz [40] (22.0 dBm) (no IR)
* 5220.0 MHz [44] (22.0 dBm) (no IR)
* 5240.0 MHz [48] (22.0 dBm) (no IR)
* 5260.0 MHz [52] (22.0 dBm) (no IR, radar detection)
* 5280.0 MHz [56] (22.0 dBm) (no IR, radar detection)
* 5300.0 MHz [60] (22.0 dBm) (no IR, radar detection)
* 5320.0 MHz [64] (22.0 dBm) (no IR, radar detection)
* 5340.0 MHz [68] (disabled)
* 5360.0 MHz [72] (disabled)
* 5380.0 MHz [76] (disabled)
* 5400.0 MHz [80] (disabled)
* 5420.0 MHz [84] (disabled)
* 5440.0 MHz [88] (disabled)
* 5460.0 MHz [92] (disabled)
* 5480.0 MHz [96] (disabled)
* 5500.0 MHz [100] (22.0 dBm) (no IR, radar detection)
* 5520.0 MHz [104] (22.0 dBm) (no IR, radar detection)
* 5540.0 MHz [108] (22.0 dBm) (no IR, radar detection)
* 5560.0 MHz [112] (22.0 dBm) (no IR, radar detection)
* 5580.0 MHz [116] (22.0 dBm) (no IR, radar detection)
* 5600.0 MHz [120] (22.0 dBm) (no IR, radar detection)
* 5620.0 MHz [124] (22.0 dBm) (no IR, radar detection)
* 5640.0 MHz [128] (22.0 dBm) (no IR, radar detection)
* 5660.0 MHz [132] (22.0 dBm) (no IR, radar detection)
* 5680.0 MHz [136] (22.0 dBm) (no IR, radar detection)
* 5700.0 MHz [140] (22.0 dBm) (no IR, radar detection)
* 5720.0 MHz [144] (22.0 dBm) (no IR, radar detection)
* 5745.0 MHz [149] (22.0 dBm) (no IR)
* 5765.0 MHz [153] (22.0 dBm) (no IR)
* 5785.0 MHz [157] (22.0 dBm) (no IR)
* 5805.0 MHz [161] (22.0 dBm) (no IR)
* 5825.0 MHz [165] (22.0 dBm) (no IR)
* 5845.0 MHz [169] (disabled)
* 5865.0 MHz [173] (disabled)
* 5885.0 MHz [177] (disabled)
* 5905.0 MHz [181] (disabled)
valid interface combinations:
* #{ managed } <= 1, #{ P2P-client, P2P-GO } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 2
* #{ managed } <= 1, #{ AP, P2P-client, P2P-GO } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 1
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 2
max scan plan interval: 65535
max scan plan iterations: 254
Supported extended features:
* [ VHT_IBSS ]: VHT-IBSS
* [ RRM ]: RRM
* [ MU_MIMO_AIR_SNIFFER ]: MU-MIMO sniffer
* [ SCAN_START_TIME ]: scan start timestamp
* [ BSS_PARENT_TSF ]: BSS last beacon/probe TSF
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ FILS_MAX_CHANNEL_TIME ]: FILS max channel attribute override with dwell time
* [ ACCEPT_BCAST_PROBE_RESP ]: accepts broadcast probe response
* [ OCE_PROBE_REQ_HIGH_TX_RATE ]: probe request TX at high rate (at least 5.5Mbps)
* [ OCE_PROBE_REQ_DEFERRAL_SUPPRESSION ]: probe request tx deferral and suppression
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ EXT_KEY_ID ]: Extended Key ID support
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
* [ PROT_RANGE_NEGO_AND_MEASURE ]: support for MFP in range measurement negotiation/procedure
* [ POWERED_ADDR_CHANGE ]: can change MAC address while up

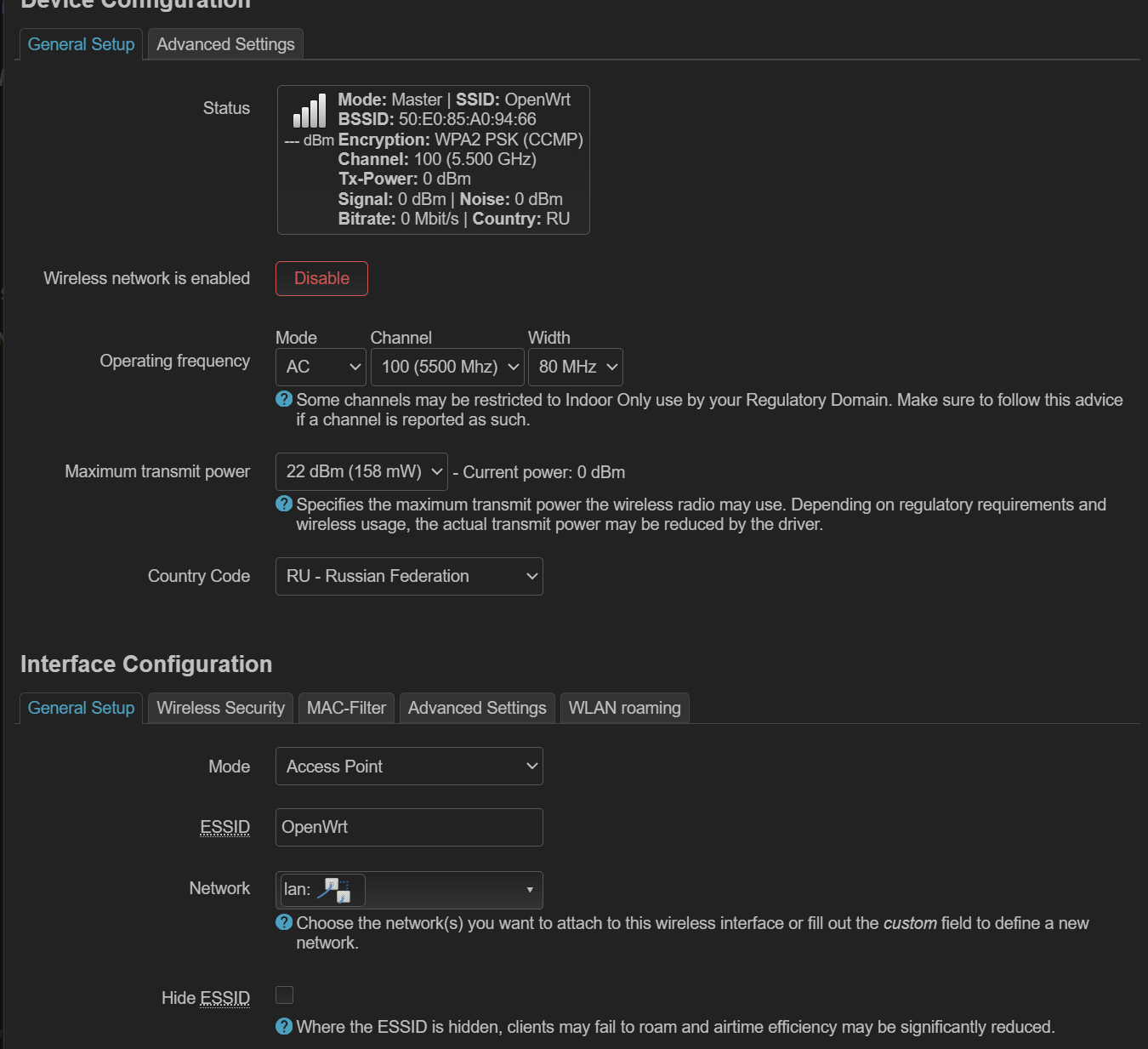

phy0-ap0 ESSID: "OpenWrt"
Access Point: 50:E0:85:A0:94:66
Mode: Master Channel: 100 (5.500 GHz) HT Mode: NOHT
Center Channel 1: unknown 2: unknown
Tx-Power: 0 dBm Link Quality: unknown/70
Signal: unknown Noise: unknown
Bit Rate: unknown
Encryption: WPA2 PSK (CCMP)
Type: nl80211 HW Mode(s): 802.11ac/b/g/n
Hardware: 8086:24FD 8086:8050 [Generic MAC80211]
TX power offset: unknown
Frequency offset: unknown
Supports VAPs: no PHY name: phy0
root@Pupircha:~#
Dmesg end
[ 11.745165] Bridge firewalling registered
[ 11.750244] Loading modules backported from Linux version v6.12.52-0-g2b2cbdcede38
[ 11.758594] Backport generated by backports.git v6.1.110-1-35-g410656ef
[ 11.772375] e1000e: Intel(R) PRO/1000 Network Driver
[ 11.778098] e1000e: Copyright(c) 1999 - 2015 Intel Corporation.
[ 11.801908] xt_time: kernel timezone is -0000
[ 11.819778] Intel(R) Wireless WiFi driver for Linux
[ 11.825493] iwlwifi 0000:02:00.0: enabling device (0000 -> 0002)
[ 11.833573] iwlwifi 0000:02:00.0: Detected crf-id 0xbadcafe, cnv-id 0x10 wfpm id 0x80000000
[ 11.842686] iwlwifi 0000:02:00.0: PCI dev 24fd/8050, rev=0x230, rfid=0xd55555d5
[ 11.850729] iwlwifi 0000:02:00.0: Detected Intel(R) Dual Band Wireless AC 8265
[ 11.881020] iwlwifi 0000:02:00.0: loaded firmware version 36.ca7b901d.0 8265-36.ucode op_mode iwlmvm
[ 11.894102] PPP generic driver version 2.4.2
[ 11.899742] NET: Registered PF_PPPOX protocol family
[ 12.001298] iwlwifi 0000:02:00.0: base HW address: 50:e0:85:a0:94:66, OTP minor version: 0x0
[ 12.079488] Console: switching to colour dummy device 80x25
[ 12.131770] ieee80211 phy0: Selected rate control algorithm 'iwl-mvm-rs'
[ 12.191786] i915 0000:00:02.0: [drm] [ENCODER:87:DP C] failed to retrieve link info, disabling eDP
[ 12.233349] [drm] Initialized i915 1.6.0 20201103 for 0000:00:02.0 on minor 0
[ 12.241833] ACPI: video: Video Device [GFX0] (multi-head: yes rom: no post: no)
[ 12.249799] input: Video Bus as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input6
[ 12.269982] i915 0000:00:02.0: [drm] Cannot find any crtc or sizes
[ 12.305705] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 12.316262] i915 0000:00:02.0: [drm] Cannot find any crtc or sizes
[ 12.347873] i915 0000:00:02.0: [drm] Cannot find any crtc or sizes
[ 14.381535] Generic FE-GE Realtek PHY r8169-0-300:00: attached PHY driver (mii_bus:phy_addr=r8169-0-300:00, irq=MAC)
[ 14.681551] r8169 0000:03:00.0 eth0: Link is Down
[ 14.686302] br-lan: port 1(eth0) entered blocking state
[ 14.691553] br-lan: port 1(eth0) entered disabled state
[ 14.696807] r8169 0000:03:00.0 eth0: entered allmulticast mode
[ 14.702807] r8169 0000:03:00.0 eth0: entered promiscuous mode
[ 14.751491] Generic FE-GE Realtek PHY r8169-0-400:00: attached PHY driver (mii_bus:phy_addr=r8169-0-400:00, irq=MAC)
[ 15.051630] r8169 0000:04:00.0 eth1: Link is Down
[ 17.689419] r8169 0000:03:00.0 eth0: Link is Up - 1Gbps/Full - flow control off
[ 17.696830] br-lan: port 1(eth0) entered blocking state
[ 17.702090] br-lan: port 1(eth0) entered forwarding state
[ 18.434818] overlay: filesystem on /opt/docker/check-overlayfs-support2699644767/upper not supported as upperdir
[ 18.545635] r8169 0000:04:00.0 eth1: Link is Up - 1Gbps/Full - flow control off
[ 19.404121] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered blocking state
[ 19.410759] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered disabled state
[ 19.417455] vethfcf1bbe: entered allmulticast mode
[ 19.422380] vethfcf1bbe: entered promiscuous mode
[ 19.427517] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered blocking state
[ 19.434195] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered forwarding state
[ 19.441200] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered disabled state
[ 19.463999] br-7f0b91e0aac5: port 2(vethef6a3e3) entered blocking state
[ 19.470645] br-7f0b91e0aac5: port 2(vethef6a3e3) entered disabled state
[ 19.477320] vethef6a3e3: entered allmulticast mode
[ 19.482241] vethef6a3e3: entered promiscuous mode
[ 19.488316] br-7f0b91e0aac5: port 2(vethef6a3e3) entered blocking state
[ 19.494986] br-7f0b91e0aac5: port 2(vethef6a3e3) entered forwarding state
[ 19.506504] br-7f0b91e0aac5: port 2(vethef6a3e3) entered disabled state
[ 20.333306] eth0: renamed from veth62e7697
[ 20.384559] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered blocking state
[ 20.391211] br-7f0b91e0aac5: port 1(vethfcf1bbe) entered forwarding state
[ 20.399211] eth0: renamed from veth327977a
[ 20.443796] br-7f0b91e0aac5: port 2(vethef6a3e3) entered blocking state
[ 20.450441] br-7f0b91e0aac5: port 2(vethef6a3e3) entered forwarding state
[ 29.026126] php-fpm84[7603]: memfd_create() called without MFD_EXEC or MFD_NOEXEC_SEAL set
[125845.181404] iwlwifi 0000:02:00.0: Registered PHC clock: iwlwifi-PTP, with index: 0
[125845.190167] br-lan: port 2(phy0-ap0) entered blocking state
[125845.195878] br-lan: port 2(phy0-ap0) entered disabled state
[125845.201566] iwlwifi 0000:02:00.0 phy0-ap0: entered allmulticast mode
[125845.208142] iwlwifi 0000:02:00.0 phy0-ap0: entered promiscuous mode
