Can't find DSL modem on FB 7360sl or i'm on wood way?

hello,

where can i find the dsl modem for internet connection? Under interfaces -> devices i can't see it, or i'm on wood way?

I want use the dsl modem to bind it behind on my first router with static ip and take than the WLAN/LAN interfaces to route to this. After them prepare a vpn tunnel interface for pass-through for all internet traffic and route all the traffic to WLAN/LAN. Is missing a kernel modul for it? The bin file vr9-b-dsl.bin for modem i've extract form original firmware of AVM but after reboot i don't find any dsl modem!? Can i take the dsl port on fritzbox 7360sl to connect with static address on the first router at all?

option firmware '/lib/firmware/vr9-B-dsl.bin'

my network config at time ... use wlan in client modus to connect to internet an LAN for home pc connection! But i would like connect with dsl to internet an use WLAN / LAN for clients in home net !!!

config dsl 'dsl'
        option annex 'b'
        option tone 'av'
        option xfer_mode 'ptm'
        option firmware '/lib/firmware/vr9-B-dsl.bin'

here is my hardware output form dmesg

[    0.000000] Linux version 5.4.154 (builder@buildhost) (gcc version 8.4.0 (OpenWrt GCC 8.4.0 r16325-88151b8303)) #0 SMP Sun Oct 24 09:01:35 2021
[    0.000000] SoC: xRX200 rev 1.1
[    0.000000] printk: bootconsole [early0] enabled
[    0.000000] CPU0 revision is: 00019555 (MIPS 34Kc)
[    0.000000] MIPS: machine is AVM FRITZ!Box 7360 SL
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Detected 1 available secondary CPU(s)
[    0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x0000000000000000-0x0000000007ffffff]
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000000000000-0x0000000007ffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000007ffffff]
[    0.000000] On node 0 totalpages: 32768
[    0.000000]   Normal zone: 288 pages used for memmap
[    0.000000]   Normal zone: 0 pages reserved
[    0.000000]   Normal zone: 32768 pages, LIFO batch:7
[    0.000000] percpu: Embedded 14 pages/cpu s26256 r8192 d22896 u57344
[    0.000000] pcpu-alloc: s26256 r8192 d22896 u57344 alloc=14*4096
[    0.000000] pcpu-alloc: [0] 0 [0] 1
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 32480
[    0.000000] Kernel command line: console=ttyLTQ0,115200
[    0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
[    0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[    0.000000] Writing ErrCtl register=00000000
[    0.000000] Readback ErrCtl register=00000000
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 120656K/131072K available (6252K kernel code, 217K rwdata, 1040K rodata, 1240K init, 223K bss, 10416K reserved, 0K cma-reserved)
[    0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] NR_IRQS: 256
[    0.000000] random: get_random_bytes called from 0x8075aa38 with crng_init=0
[    0.000000] CPU Clock: 500MHz
[    0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041786 ns
[    0.000011] sched_clock: 32 bits at 250MHz, resolution 4ns, wraps every 8589934590ns
[    0.007915] Calibrating delay loop... 332.54 BogoMIPS (lpj=665088)
[    0.045996] pid_max: default: 32768 minimum: 301
[    0.050941] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.058135] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.069537] rcu: Hierarchical SRCU implementation.
[    0.075105] smp: Bringing up secondary CPUs ...
[    0.080845] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[    0.080864] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[    0.080959] CPU1 revision is: 00019555 (MIPS 34Kc)
[    0.111779] Synchronize counters for CPU 1: done.
[    0.136175] smp: Brought up 1 node, 2 CPUs
[    0.146364] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.156019] futex hash table entries: 512 (order: 2, 16384 bytes, linear)
[    0.163046] pinctrl core: initialized pinctrl subsystem
[    0.170645] NET: Registered protocol family 16
[    0.183420] dcdc-xrx200 1f106a00.dcdc: Core Voltage : 1016 mV
[    0.197612] pinctrl-xway 1e100b10.pinmux: Init done
[    0.204155] dma-xway 1e104100.dma: Init done - hw rev: 7, ports: 7, channels: 28
[    0.216038] pcie-xrx200 1d900000.pcie: failed to get the PCIe PHY
[    0.265615] usbcore: registered new interface driver usbfs
[    0.271252] usbcore: registered new interface driver hub
[    0.276592] usbcore: registered new device driver usb
[    0.282302] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512
[    0.294346] clocksource: Switched to clocksource MIPS
[    0.301694] thermal_sys: Registered thermal governor 'step_wise'
[    0.302477] NET: Registered protocol family 2
[    0.313035] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
[    0.321344] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    0.329674] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.337408] TCP bind hash table entries: 1024 (order: 1, 8192 bytes, linear)
[    0.344458] TCP: Hash tables configured (established 1024 bind 1024)
[    0.351053] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.357508] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.364870] NET: Registered protocol family 1
[    0.369177] PCI: CLS 0 bytes, default 32
[    0.373580] gptu: totally 6 16-bit timers/counters
[    0.378451] gptu: misc_register on minor 63
[    0.382610] gptu: succeeded to request irq 126
[    0.387111] gptu: succeeded to request irq 127
[    0.391639] gptu: succeeded to request irq 128
[    0.396120] gptu: succeeded to request irq 129
[    0.400653] gptu: succeeded to request irq 130
[    0.405174] gptu: succeeded to request irq 131
[    0.409847] No VPEs reserved for AP/SP, not initialize VPE loader
[    0.409847] Pass maxvpes=<n> argument as kernel argument
[    0.421235] No TCs reserved for AP/SP, not initializing RTLX.
[    0.421235] Pass maxtcs=<n> argument as kernel argument
[    0.434943] workingset: timestamp_bits=14 max_order=15 bucket_order=1
[    0.438338] random: fast init done
[    0.462428] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.468226] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    0.484457] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[    0.500564] 1e100c00.serial: ttyLTQ0 at MMIO 0x1e100c00 (irq = 112, base_baud = 0) is a lantiq,asc
[    0.509514] printk: console [ttyLTQ0] enabled
[    0.518223] printk: bootconsole [early0] disabled
[    0.530616] lantiq nor flash device: 01000000 at 10000000
[    0.534815] ltq_nor: Found 1 x16 devices at 0x0 in 16-bit bank. Manufacturer ID 0x000001 Chip ID 0x002101
[    0.544213] Amd/Fujitsu Extended Query Table at 0x0040
[    0.549349]   Amd/Fujitsu Extended Query version 1.3.
[    0.554388] number of CFI chips: 1
[    0.557791] 4 fixed-partitions partitions found on MTD device ltq_nor
[    0.564216] Creating 4 MTD partitions on "ltq_nor":
[    0.569084] 0x000000000000-0x000000020000 : "urlader"
[    0.576475] 0x000000020000-0x000000f80000 : "firmware"
[    0.587490] 2 eva-fw partitions found on MTD device firmware
[    0.591809] 0x000000020000-0x00000027c9fb : "kernel"
[    0.598217] 0x000000280100-0x000000f80000 : "rootfs"
[    0.604096] mtd: device 3 (rootfs) set to be root filesystem
[    0.608421] 1 squashfs-split partitions found on MTD device rootfs
[    0.614556] 0x000000680000-0x000000f80000 : "rootfs_data"
[    0.622232] 0x000000f80000-0x000000fc0000 : "tffs (1)"
[    0.628420] 0x000000fc0000-0x000001000000 : "tffs (2)"
[    0.637278] libphy: Fixed MDIO Bus: probed
[    0.650887] NET: Registered protocol family 10
[    0.658567] Segment Routing with IPv6
[    0.660914] NET: Registered protocol family 17
[    0.665404] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[    0.678246] 8021q: 802.1Q VLAN Support v1.8
[    0.688007] pcie-xrx200 1d900000.pcie: failed to get the PCIe PHY
[    0.800994] libphy: lantiq,xrx200-mdio: probed
[    0.810510] Atheros 8030 ethernet 0:00: attached PHY driver [Atheros 8030 ethernet] (mii_bus:phy_addr=0:00, irq=POLL)
[    0.820096] Atheros 8030 ethernet 0:01: attached PHY driver [Atheros 8030 ethernet] (mii_bus:phy_addr=0:01, irq=POLL)
[    0.831157] Intel XWAY PHY11G (xRX v1.1 integrated) 0:11: attached PHY driver [Intel XWAY PHY11G (xRX v1.1 integrated)] (mii_bus:phy_addr=0:11, irq=POLL)
[    0.844878] Intel XWAY PHY11G (xRX v1.1 integrated) 0:13: attached PHY driver [Intel XWAY PHY11G (xRX v1.1 integrated)] (mii_bus:phy_addr=0:13, irq=POLL)
[    0.983242] PCI host bridge /fpi@10000000/pcie@d900000 ranges:
[    0.987934] PCI host bridge to bus 0000:00
[    0.991815] pci_bus 0000:00: root bus resource [mem 0x1c000000-0x1cffffff]
[    0.998656] pci_bus 0000:00: root bus resource [io  0x1d800000-0x1d8fffff]
[    1.005565] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0]
[    1.012318] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[    1.020301] pci 0000:00:00.0: [15d1:0011] type 01 class 0x060000
[    1.026311] ifx_pcie_rc_class_early_fixup: fixed pcie host bridge to pci-pci bridge
[    1.044025] pci 0000:00:00.0: 0x80442440 took 17285 usecs
[    1.048031] ifx_pcie_fixup_resource: fixup host controller 0000:00:00.0 (15d1:0011)
[    1.055807] pci 0000:00:00.0: PME# supported from D0 D3hot
[    1.064614] pci 0000:01:00.0: [168c:002e] type 00 class 0x028000
[    1.069327] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x0000ffff 64bit]
[    1.076235] pci 0000:01:00.0: supports D1
[    1.080069] pci 0000:01:00.0: PME# supported from D0 D1 D3hot
[    1.088816] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
[    1.094075] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 01
[    1.100692] pci 0000:00:00.0: BAR 8: assigned [mem 0x1c000000-0x1c0fffff]
[    1.107484] pci 0000:01:00.0: BAR 0: assigned [mem 0x1c000000-0x1c00ffff 64bit]
[    1.114795] pci 0000:00:00.0: PCI bridge to [bus 01]
[    1.119752] pci 0000:00:00.0:   bridge window [mem 0x1c000000-0x1c0fffff]
[    1.126653] ifx_pcie_bios_map_irq port 0 dev 0000:00:00.0 slot 0 pin 1
[    1.133137] ifx_pcie_bios_map_irq dev 0000:00:00.0 irq 144 assigned
[    1.147086] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[    1.154738] Freeing unused kernel memory: 1240K
[    1.157823] This architecture does not have kernel memory protection.
[    1.164302] Run /sbin/init as init process
[    2.020405] init: Console is alive
[    2.022833] init: - watchdog -
[    3.518149] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[    3.866088] dwc2 1e101000.usb: 1e101000.usb supply vusb_d not found, using dummy regulator
[    3.873295] dwc2 1e101000.usb: 1e101000.usb supply vusb_a not found, using dummy regulator
[    3.982796] dwc2 1e101000.usb: DWC OTG Controller
[    3.986117] dwc2 1e101000.usb: new USB bus registered, assigned bus number 1
[    3.993233] dwc2 1e101000.usb: irq 62, io mem 0x1e101000
[    3.999968] hub 1-0:1.0: USB hub found
[    4.002558] hub 1-0:1.0: 1 port detected
[    4.007898] dwc2 1e106000.usb: 1e106000.usb supply vusb_d not found, using dummy regulator
[    4.015119] dwc2 1e106000.usb: 1e106000.usb supply vusb_a not found, using dummy regulator
[    4.124373] dwc2 1e106000.usb: DWC OTG Controller
[    4.127766] dwc2 1e106000.usb: new USB bus registered, assigned bus number 2
[    4.134810] dwc2 1e106000.usb: irq 91, io mem 0x1e106000
[    4.141747] hub 2-0:1.0: USB hub found
[    4.144520] hub 2-0:1.0: 1 port detected
[    4.151269] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[    4.160979] init: - preinit -
[    5.335745] lantiq,xrx200-net 1e108000.eth eth0: port 4 got link
[    5.340508] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[    5.373226] random: procd: uninitialized urandom read (4 bytes read)
[    9.748150] jffs2: notice: (552) jffs2_build_xattr_subsystem: complete building xattr subsystem, 49 of xdatum (42 unchecked, 6 orphan) and 74 of xref (6 dead, 0 orphan) found.
[    9.766519] mount_root: switching to jffs2 overlay
[    9.774890] overlayfs: upper fs does not support tmpfile.
[    9.788270] urandom-seed: Seeding with /etc/urandom.seed
[   10.367191] lantiq,xrx200-net 1e108000.eth eth0: port 4 lost link
[   10.387930] procd: - early -
[   10.389564] procd: - watchdog -
[   11.054268] procd: - watchdog -
[   11.057770] procd: - ubus -
[   11.148779] random: ubusd: uninitialized urandom read (4 bytes read)
[   11.157457] random: ubusd: uninitialized urandom read (4 bytes read)
[   11.167615] random: ubusd: uninitialized urandom read (4 bytes read)
[   11.180807] procd: - init -
[   12.612496] kmodloader: loading kernel modules from /etc/modules.d/*
[   12.621620] IFXOS, Version 1.5.19 (c) Copyright 2009, Lantiq Deutschland GmbH
[   12.632972] NET: Registered protocol family 8
[   12.636036] NET: Registered protocol family 20
[   12.684379] tun: Universal TUN/TAP device driver, 1.6
[   12.694114] PPP generic driver version 2.4.2
[   12.948851] Lantiq (VRX) DSL CPE MEI driver, version 1.5.17.6, (c) 2007-2015 Lantiq Beteiligungs-GmbH & Co. KG
[   12.963121]
[   12.963121]
[   12.963121] Lantiq CPE API Driver version: DSL CPE API V4.17.18.6
[   12.980867]
[   12.980867] Predefined debug level: 3
[   12.995195] Loading modules backported from Linux version v5.10.68-0-g4d8524048a35
[   13.001525] Backport generated by backports.git v5.10.68-1-0-ga4f9ba32
[   13.028435] NET: Registered protocol family 24
[   13.045722] xt_time: kernel timezone is -0000
[   13.109712] urngd: v1.0.2 started.
[   13.234669] ifx_pcie_bios_map_irq port 0 dev 0000:01:00.0 slot 0 pin 1
[   13.239981] ifx_pcie_bios_map_irq dev 0000:01:00.0 irq 144 assigned
[   13.246255] ath9k 0000:01:00.0: enabling device (0000 -> 0002)
[   13.261836] ath: EEPROM regdomain: 0x8114
[   13.261853] ath: EEPROM indicates we should expect a country code
[   13.261865] ath: doing EEPROM country->regdmn map search
[   13.261875] ath: country maps to regdmn code: 0x37
[   13.261886] ath: Country alpha2 being used: DE
[   13.261895] ath: Regpair used: 0x37
[   13.280441] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[   13.285690] ieee80211 phy0: Atheros AR9287 Rev:2 mem=0xbc000000, irq=144
[   13.293182] kmodloader: done loading kernel modules from /etc/modules.d/*
[   13.794153] random: crng init done
[   13.796252] random: 6 urandom warning(s) missed due to ratelimiting
[   32.361802] br-lan: port 1(eth0.1) entered blocking state
[   32.365885] br-lan: port 1(eth0.1) entered disabled state
[   32.372189] device eth0.1 entered promiscuous mode
[   32.376064] device eth0 entered promiscuous mode
[   35.446745] lantiq,xrx200-net 1e108000.eth eth0: port 4 got link
[   35.451603] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[   35.487474] br-lan: port 1(eth0.1) entered blocking state
[   35.491520] br-lan: port 1(eth0.1) entered forwarding state
[   35.538904] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[   38.247505] wlan0: authenticate with 7c:ff:4d:c3:16:12
[   38.272218] wlan0: send auth to 7c:ff:4d:c3:16:12 (try 1/3)
[   38.279683] wlan0: authenticated
[   38.355012] wlan0: associate with 7c:ff:4d:c3:16:12 (try 1/3)
[   38.365900] wlan0: RX AssocResp from 7c:ff:4d:c3:16:12 (capab=0x1431 status=0 aid=1)
[   38.372976] wlan0: associated
[   38.404138] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[   38.412768] wlan0: Limiting TX power to 20 (20 - 0) dBm as advertised by 7c:ff:4d:c3:16:12
root@OpenWrt:~# ls  /dev/
bus              full             kmsg             mtd0ro           mtd2ro           mtd4ro           mtd6ro           mtdblock3        net              ptmx             tty              watchdog
console          gpiochip0        log              mtd1             mtd3             mtd5             mtdblock0        mtdblock4        null             pts              ttyLTQ0          watchdog0
cpu_dma_latency  gptu             mei_cpe          mtd1ro           mtd3ro           mtd5ro           mtdblock1        mtdblock5        port             random           ubi_ctrl         zero
**dsl_cpe_api0**     hwrng            mtd0             mtd2             mtd4             mtd6             mtdblock2        mtdblock6        ppp              shm              urandom

Is dsl_cpe_api0 the hardware connect to vdsl modem? How to use it to take internet connect over the dsl port from FB 7360sl?

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd21:97d1:7937::/48'

config atm-bridge 'atm'
        option vpi '1'
        option vci '32'
        option encaps 'llc'
        option payload 'bridged'
        option nameprefix 'dsl'

config dsl 'dsl'
        option annex 'b'
        option tone 'av'
        option ds_snr_offset '0'
        option firmware '/lib/firmware/vr9-B-dsl.bin'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.1'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option gateway '192.168.178.1'
        option broadcast '192.168.1.255'
        list dns '192.168.178.1'

config device            <-------------- **dsl modem ????**
        option name 'dsl0'
        option macaddr 'c0:25:06:51:c7:4f'

config interface 'wan6'
        option device '@wan'
        option proto 'dhcpv6'
        option reqaddress 'try'
        option reqprefix 'auto'
        option auto '0'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option ports '0 1 2 4 6t'  <------ ? i've 4 ports on switch ...why 0 1 2 4 6t ???

config interface 'Internet'
        option proto 'dhcp'
        option device 'wlan0'  <---- use it a time to connect to internet

config interface 'wan6'
        option device '@wan'
        option proto 'dhcpv6'
        option reqaddress 'try'
        option reqprefix 'auto'
        option auto '0'

thx for any help of you

While it's not quite clear what you're trying to accomplish exactly, the VDSL modem does not sit on the ethernet switch, it can't be reconfigured to speak ethernet either - it's exclusively a xDSL modem. If you need a WAN port, you need to redefine one of the LAN (ethernet-) ports as such (via VLAN/ switch configurations).

2 Likes

dsl0 is Your modem device when it sync up .
ethernet 4 ports + internal port to CPU (6t)
wlan0 in AP client mode with routing require will be possible under default package configuration
wlan0 in AP client-bridge mode will require relayd package installed and its requirements .
And just for the record . If You plan to not use dsl connection there are platforms far faster than lantiq :slight_smile:

1 Like

okay i understand, VDSL Port can't connect to switch port to my first router (Internet) is only for dsl connect. I redefine one port from switch for WAN.

VLAN 2 (WAN/internet)

config switch_vlan
option device 'switch0'
option vlan '2
option ports '0 6t'   <---------- 1 Port + CPU  WAN traffic
option vid '2'

config interface 'test'
option proto 'dhcp
option device 'eth0.2'

and for the three other ports on switch i wanna use for home net (192.168.1.0/24) VLAN 1
for LAN and WLAN traffic

config switch
option name 'switch0'
option reset '1'
option enable_vlan '1'

config switch_vlan
option device 'switch0'
option vlan '1'
option vid '1'
option ports '1 2 4 6t'   <----3 ports + CPU  LAN / WLAN traffic

Would data automatic route between the vlans? or i wanna configure this?

Can I implement the configuration like this?

by

hi guys, :smiley:

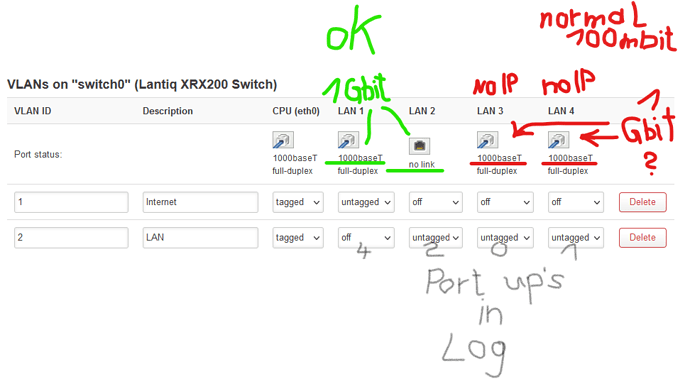

i have my configuration work's now, but from the 3 LAN Ports (VLAN 2) only the 1Gbit port work. The two 100 Mbit ports will not distribute IPs when link is up? The FB 7360sl have 4 ports, 2 x 1Gbit and 2 x 100 Mbit

my config

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd21:97d1:7937::/48'

config atm-bridge 'atm'
        option vpi '1'
        option vci '32'
        option encaps 'llc'
        option payload 'bridged'
        option nameprefix 'dsl'

config dsl 'dsl'
        option annex 'b'
        option tone 'av'
        option ds_snr_offset '0'
        option firmware '/lib/firmware/vr9-B-dsl.bin'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.2'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.1'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option broadcast '192.168.1.255'
        list dns 'xxx.xxx.xxx.xxx'
        list dns 'xxx.xxx.xxx.xxx'
        list dns '192.168.178.1'
        option gateway '192.168.178.100'

config device
        option name 'dsl0'
        option macaddr 'c0:25:06:51:c7:4f'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option vid '1'
        option ports '4 6t'  WAN <------------ work perfect
        option description 'Internet'

config interface 'tunnel'
        option device 'tun0'
        option proto 'none'
        option peerdns '0'
        list dns 'xxx.xxx.xxx.xxx'
        list dns 'xxx.xxx.xxx.xxx'

config switch_vlan
        option device 'switch0'
        option vlan '2'
        option vid '2'
        **option ports '0 1 2 6t'**  <----------------- LAN only the 1Gbit port have traffic and receives ip from dhcp
        option description 'LAN'

config interface 'WAN'
        option proto 'static'
        option ipaddr '192.168.178.100'
        option netmask '255.255.255.0'
        option gateway '192.168.178.1'
        option broadcast '192.168.178.255'
        list dns '192.168.178.1'
        option device 'eth0.1'


Thu Dec 9 21:52:15 2021 kern.info kernel: [ 7967.566300] lantiq,xrx200-net 1e108000.eth eth0: port 0 got link
Thu Dec 9 21:57:43 2021 daemon.warn dnsmasq-dhcp[2547]: no address range available for DHCP request via eth0.1
Thu Dec 9 21:57:43 2021 daemon.warn dnsmasq-dhcp[2547]: no address range available for DHCP request via eth0.1
Thu Dec 9 22:08:06 2021 kern.info kernel: [ 8918.850677] lantiq,xrx200-net 1e108000.eth eth0: port 0 lost link
Thu Dec 9 22:08:10 2021 kern.info kernel: [ 8922.786718] lantiq,xrx200-net 1e108000.eth eth0: port 2 got link
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq-dhcp[2547]: DHCPDISCOVER(br-lan) f4:39:09:83:10:19
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq-dhcp[2547]: DHCPOFFER(br-lan) 192.168.1.194 f4:39:09:83:10:19
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq[2547]: read /etc/hosts - 4 addresses
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq[2547]: read /tmp/hosts/odhcpd - 2 addresses
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq[2547]: read /tmp/hosts/dhcp.cfg01411c - 2 addresses
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq-dhcp[2547]: read /etc/ethers - 0 addresses
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq-dhcp[2547]: DHCPREQUEST(br-lan) 192.168.1.194 f4:39:09:83:10:19
Thu Dec 9 22:08:14 2021 daemon.info dnsmasq-dhcp[2547]: DHCPACK(br-lan) 192.168.1.194 f4:39:09:83:10:19 W10-123456
Thu Dec 9 22:08:26 2021 kern.info kernel: [ 8938.438398] lantiq,xrx200-net 1e108000.eth eth0: port 1 lost link
Thu Dec 9 22:11:52 2021 kern.info kernel: [ 9145.311601] lantiq,xrx200-net 1e108000.eth eth0: port 1 got link
Thu Dec 9 22:12:21 2021 kern.info kernel: [ 9173.983166] lantiq,xrx200-net 1e108000.eth eth0: port 1 lost link
Thu Dec 9 22:12:23 2021 kern.info kernel: [ 9175.903171] lantiq,xrx200-net 1e108000.eth eth0: port 0 got link
Thu Dec 9 22:12:35 2021 kern.info kernel: [ 9188.190884] lantiq,xrx200-net 1e108000.eth eth0: port 0 lost link
Thu Dec 9 22:12:39 2021 kern.info kernel: [ 9191.422877] lantiq,xrx200-net 1e108000.eth eth0: port 1 got link


config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

have you any ideas why?

It's confirmed bug on 21.02.xx and master . If You intend to use all ports 19.07.xx is safe bet .

1 Like

that's no good news ... i had flashed version 19.07.6 but my config backup files will not work after restore this :frowning: and i wanna no configure at startup :rage:
now i flashed 21.02 and my files backup is working.

anyway ... what do you mean would the bug in version 21.02 sometimes eliminated ?

best regards
