Cannot enable VLAN filtering

mvasek · January 13, 2025, 2:17pm

I cannot enable VLAN filtering in br-lan settings.

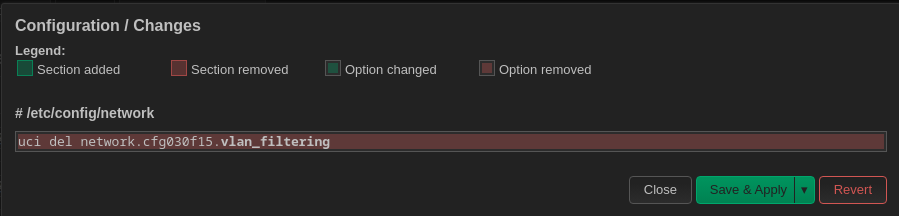

See screenshot:

When I try enabling VLAN filtering the network stops working and then one minute latter auto-revert kicks in (fortunately). It happens even when I am the WiFi not just when connected by a cable.

I run OpenWrt 23.05.3 on GL.iNet GL-MT6000.

lleachii · January 13, 2025, 2:26pm

Did you already create the actual VLANs and alter your networks (e.g., lan was br-lan and becomes br-lan.1) to reflect the changes?

Or merely enabled VLAN Filtering?

mvasek · January 13, 2025, 2:27pm

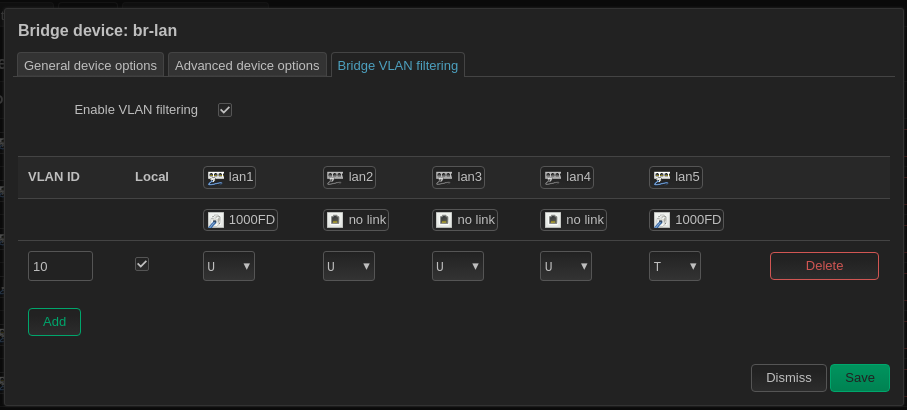

I think the VLANs are created automatically:
Screenshot from 2025-01-13 15-27-20

lleachii · January 13, 2025, 2:28pm

Did you alter your networks too (e.g. to br-lan to br-lan.10 and br-guest to br-guest.20)?

mvasek · January 13, 2025, 2:30pm

Thank you this seems to work!

I would swear that I also did try this yesterday but apparently I have not.

mvasek · January 13, 2025, 2:31pm

Thank you again. I tried to follow various tutorials on YT but most of them look they are for older OpenWRT.

mvasek · January 13, 2025, 2:37pm

It appears this fixes wired connection. But when I tried WiFi after the change does not seems to work. Do I need some additional steps for WifFi?

mvasek · January 13, 2025, 2:39pm

hmm It appears radio restart helped.

lleachii · January 13, 2025, 2:50pm

Nope, just ensure that the wireless SSID is set for the correct interface. This can be done in the web GUI.

Cool.
