Can we test both on the 'RTT' column here:

                 log_time;       rx_load;       tx_load;  baseline_RTT;           RTT;     delta_RTT;   cur_dl_rate;   cur_ul_rate;
20211119T210141.632780922;          0.00;          0.10;         45.59;         47.88;          2.29;      25000.00;      25000.00;
20211119T210142.543874758;          0.02;          0.36;         45.59;         47.95;          2.36;      25000.00;      25000.00;
20211119T210143.573865440;          0.02;          0.67;         45.59;         48.43;          2.84;      25000.00;      25050.00;

log_time; rx_load; tx_load; baseline_RTT; - Pastebin.com

I would like to see how with this real RTT data set this alternative routine compares in terms of how it adapts the baseline RTT. Maybe we need a larger data set though.

I'm a bit dubious about the importance of the RTT baseline. For my LTE connection it stays around 50ms. Some tests on my mobile phone show similar values in completely different locations. We have discussed above someone driving around, but that sounds like a pretty extreme case!

For most use cases, so long as RTT adjusts UP very slowly, isn't the EWMA with a constant that takes say 15 mins to adjust just fine?

As @moeller0 observed above, if baseline RTT is underestimated, this means punishing the bandwidth increase a little bit, which is not so bad because we still avoid bufferbloat then. Viewing this whole concept as a kind of 'turbo' function against the bandwidth that would otherwise be set (based on worst case bandwidth scenario) in CAKE, we are still offering an increase over what would otherwise have been set. Just perhaps not as much as would be available.

In stark contrast, by allowing baseline RTT to increase too quickly, we introduce the danger of letting through bufferbloat by overestimating the true baseline RTT. If we try to squeeze too much we introduce the possibility of letting lemon pips (or in our case bufferbloat) through:

Seems like the safe bet is slow RTT increase and fast RTT decrease.

Set against this backdrop, as for EWMA vs this two-pole butterworth filter, what benefit would the latter give in terms of 'reacting faster to changes'?

A complexity is that the RTT we look at has an increase associated with bufferbloat, and we need to avoid capturing the increase associated with bufferbloat in the baseline. Would the two-pole butterworth be good at that?

The present approach at least seems to handle the above issue well:

20211119T210541.207899347;          0.78;          0.08;         45.01;         49.69;          4.69;      34332.00;      25000.00;
20211119T210542.207050486;          0.77;          0.09;         45.01;         48.33;          3.32;      34557.00;      25000.00;
20211119T210543.253130538;          0.75;          0.09;         45.06;         91.12;         46.11;      32307.00;      25000.00;
20211119T210544.345748622;          0.69;          0.07;         45.15;        134.99;         89.93;      30057.00;      25000.00;
20211119T210545.464845349;          0.48;          0.05;         45.46;        358.24;        313.09;      27807.00;      25000.00;
20211119T210546.274829760;          0.82;          0.06;         45.46;         47.49;          2.03;      28032.00;      25000.00;

[nbd]

Yes, I think that's correct. I think for EWMA, the alpha value is typically calculated as 2 / (period + 1). So you use that to calculate a comparable setting for this filter

[Lynx]

Just had a really good example tonight of why users with variable rate connections really need adaptive bandwidth for CAKE.

A CAKE user faced with a variable rate connection is typically forced to sacrifice bandwidth so that bufferbloat is avoided only most of the time. Which is undesirable.

My LTE connection goes up to 70Mbit/s at best, and mostly, as in say 90% of the time, it can safely handle above 30Mbit/s. Having to set the absolute worst case in CAKE means taking a huge bandwidth hit. So I go for a compromise of 30Mbit/s or 35Mbit/s.

But during a lengthy 2.5 hour video call with my client today I went into the time of day of peak congestion for my connection and started to see stuttering on Microsoft Teams. I strayed into the 5% or 10% worst case scenario.

During the call I had to login to my router and manually set the CAKE bandwidth to 20Mbit/s for the stuttering to go away.

Had I been using an adaptive bandwidth routine then I'd have more happily set bandwidth of 20Mbit/s as minimum, in knowledge that the 'turbo' function of the routine will allow the bandwidth to scale up during periods of heavy usage, so long as the connection will sustain it without introducing heavy bufferbloat.

Of course the key point is the 'so long as the connection will sustain it without introducing heavy bufferbloat' and a key goal is to ensure that the bandwidth increase does not result in heavy bufferbloat, which is especially important when latency sensitive applications are presently in operation.

So the idea is that an adaptive bandwidth routine allows a user to opt for a lower bandwidth than they would be comfortable with compromising with, mindful that the routine will recover the extra bandwidth when it is needed for heavy downloads or uploads.

An alternative or complementary solution would be to vary bandwidth of CAKE in dependence upon detected traffic type. This latter option may warrant some further consideration.

[moeller0]

That does not sound bad, coefficients can be pre calculated at start up, and keeping two instead of one historic value is not too bad (except doing that in shell still is not much fun )

[Lynx]

But why the two-pole butterworth for RTT baseline?

I can see its application in financial data. But baseline RTT based on actual RTT + noise + bufferbloat?

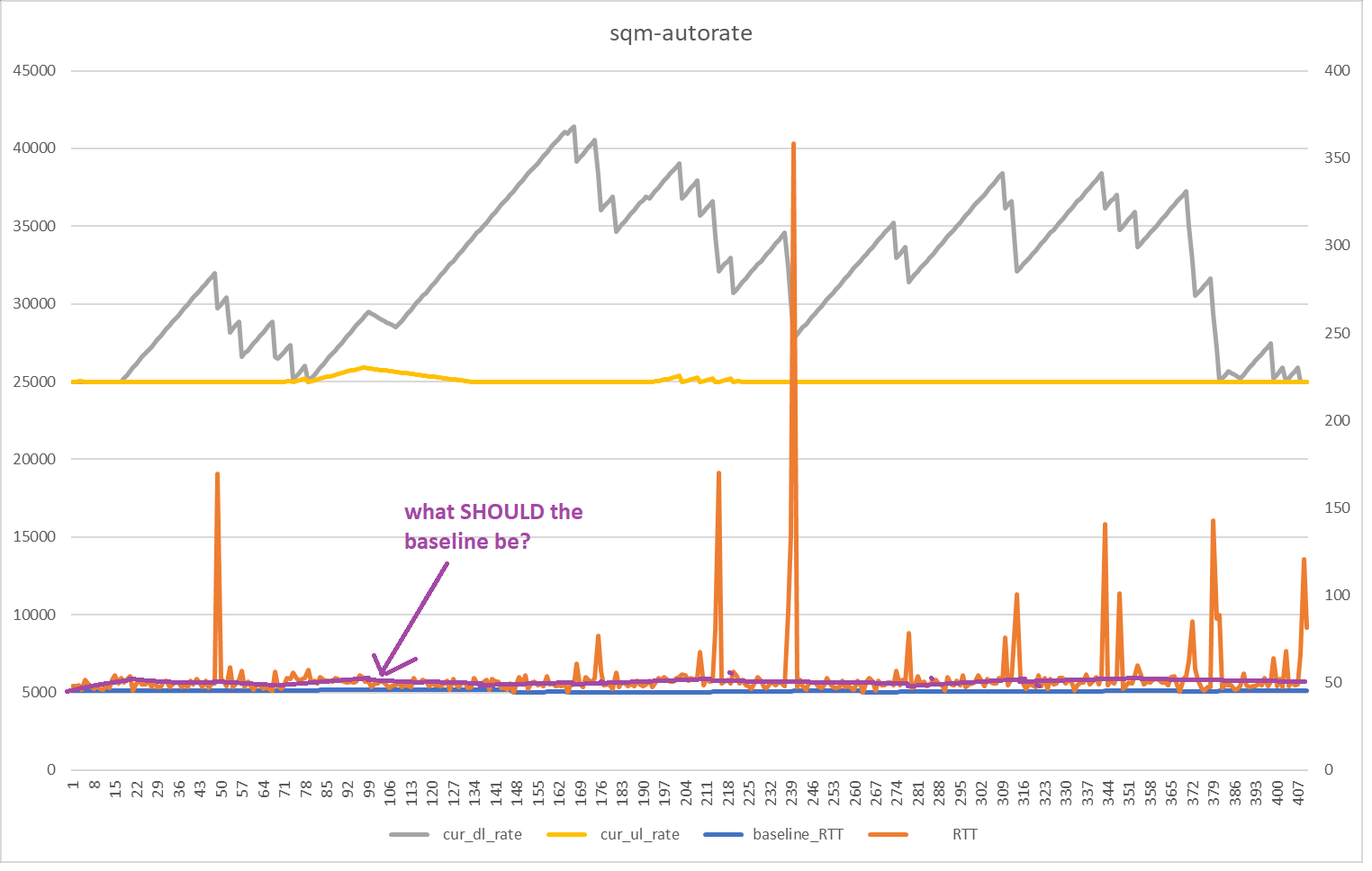

What should the baseline look like? Should it look like the below? But obviously smoother (I just drew this with lines on paint by eye).
