Assigning different HTTPS DNS proxy ports to specific MAC addresses in OpenWRT - how?

Installing and Using OpenWrt Network and Wireless Configuration
1

I am using HTTPS DNS Proxy on OpenWRT and have configured two separate DNS resolvers running on different ports.
I need to configure device with MAC1 to use DNS on Port1, and device with MAC2 to use DNS on Port2.

How can I achieve this? Please help! Thank you!

2

You can identify devices by their MAC address, and send them specific information from the DHCP server:

https://openwrt.org/docs/guide-user/base-system/dhcp_configuration#client_classifying_and_individual_options

3

Thank you for your reply! I tried this yesterday, but with no luck. Unfortunately I'm not experienced in this topic. Looks like something overwrite these rule :frowning:

Could you please clarify,
it should be like this?
uci add_list dhcp.mac1.dhcp_option="6,127.0.0.1#5053" ?
instead of:
uci add_list dhcp.mac1.dhcp_option="6,192.168.1.3"

4

this is a setting for the client(s), and they'll stick to port 53, your 2nd example is valid

127.0.0.1#5053 would apply to dnsmasq itself.

you could intercept DNS request from a specific IP/MAC in the firewall, and forward them to a secondary DNS, running on some random port, like 5053.

5

But how to specify port in this example?
uci add_list dhcp.mac1.dhcp_option="6,192.168.1.3"

my resolver (to witch I would like to point device with "mac1" ) is on 127.0.0.1:5053
I tried setting up iptables rule - did not work :frowning:

6

like I said, you can't.

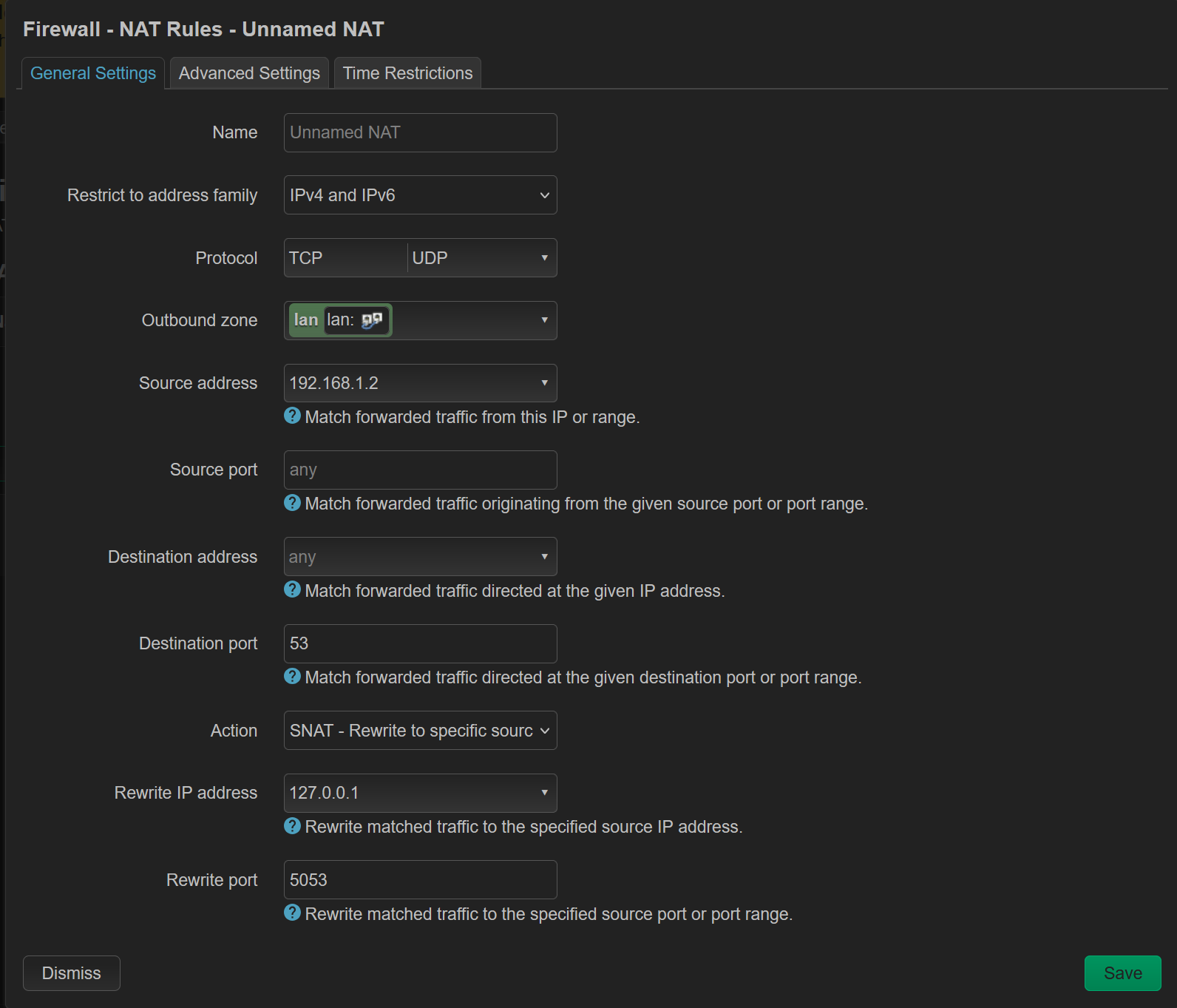

did it look anything like this ?

image1592×1363 195 KB

7

As @frollic commented, you can only send an IP address using option 6, not a port number, and this complicates things...

8

You need to make the https-dns-proxy instances listen on all interfaces and disable automatic creation of firewall rules.

# /etc/config/https-dns-proxy

config main 'config'
        option force_dns '0'
        ...

config https-dns-proxy
        option listen_addr '0.0.0.0'
        option listen_port '5053'
        ...

config https-dns-proxy
        option listen_addr '0.0.0.0'
        option listen_port '5054'
        ...

Then manually create the necessary firewall rules (the order of the DNAT rules matters).

# /etc/config/firewall
...
config redirect
        option target 'DNAT'
        option name 'DNS-Redirect-MAC1'
        list proto 'udp'
        option src 'lan'
        option src_dport '53'
        option dest_port '5053'
        list src_mac 'MAC1 here'

config redirect
        option target 'DNAT'
        option name 'DNS-Redirect-MAC2'
        list proto 'udp'
        option src 'lan'
        option src_dport '53'
        option dest_port '5054'
        list src_mac 'MAC2 here'

config redirect
        option target 'DNAT'
        option name 'DNS-Redirect-General'
        option src 'lan'
        option src_dport '53'

config rule
        option name 'Prohibit-DoT'
        option src 'lan'
        option dest_port '853'
        option target 'REJECT'
        option dest '*'
1 Like
