Hello, I'm trying to assign an additional IPv4 provided by my ISP to my homeserver to isolate it from the main network.
So far I got second DHCP server up and assign a correct IP to it using macvlan (ISP need new MAC in order to assign additional IP) but I have no clue how to connect my home server to the second DHCP server which is on lan1 port. I tried to creating zones as my main WAN and LAN config and kinda mimic its configuration but nothing worked.
Any help will be appreciated, or ask if i need to provide some info for more context, im kinda new to it.
Unfortunately, the screenshot does not provide all required information. We prefer to work with the configuration files here, so please:
Connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
Remember to redact passwords, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/dhcp
cat /etc/config/firewall
I suppose that you are missing some required firewall rules, but let's check.
2 Likes
Hello, thanks for the reply.
ubus call system board
{
"kernel": "5.15.167",
"hostname": "OpenWrt",
"system": "MediaTek MT7621 ver:1 eco:4",
"model": "ASUS RT-AX53U",
"board_name": "asus,rt-ax53u",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05.5",
"revision": "r24106-10cc5fcd00",
"target": "ramips/mt7621",
"description": "OpenWrt 23.05.5 r24106-10cc5fcd00"
}
}
cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix '0000000000000000000'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
option ifname 'tap0 tap0'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
config device
option name 'macvlan0'
option type 'macvlan'
option ifname 'wan'
option mode 'vepa'
option macaddr '00000000000'
config interface 'wan2'
option proto 'dhcp'
option macaddr '000000000'
option device 'macvlan0'
option defaultroute '0'
cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option localservice '1'
option ednspacket_max '1232'
list address '/*.localserv.lan/192.168.1.229'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
config host
option name 'localnserv'
option ip '192.168.1.230'
option mac '000000000'
option leasetime 'infinite'
config dhcp 'wan2'
option interface 'wan2'
option ignore '1'
cat /etc/config/firewall
config defaults
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option synflood_protect '1'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
config zone
option name 'wan'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config rule 'Allow_OpenVPN_Inbound'
option target 'ACCEPT'
option src '*'
option proto 'udp'
option dest_port '1194'
config zone 'vpn'
option name 'vpn'
option input 'ACCEPT'
option forward 'REJECT'
option output 'ACCEPT'
option masq '1'
config forwarding 'vpn_forwarding_lan_in'
option src 'vpn'
option dest 'lan'
config forwarding 'vpn_forwarding_lan_out'
option src 'lan'
option dest 'vpn'
config forwarding 'vpn_forwarding_wan'
option src 'vpn'
option dest 'wan'
config zone
option name 'wan2'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan2'
config zone
option name 'lan2'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
config forwarding
option src 'wan2'
option dest 'lan2'
This configuration does not match the screenshot. I assume that the text configuration is the current one and I'm going to ignore the screenshot.
In /etc/config/network remove "lan1" from the br-lan bridge:
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan2'
list ports 'lan3'
Add a new bridge with only "lan1" and create an interface configuration for it (yes, it should work without a bridge, but if you want to assign WiFi interfaces at a later stage, a bridge is useful):
config device
option name 'br-server'
option type 'bridge'
list ports 'lan1'
config interface 'lan2'
option device 'br-server'
option proto 'static'
option ipaddr '192.168.2.1'
option netmask '255.255.255.0'
option ip6assign '60'
In /etc/config/dhcp create a new DHCP server on this interface:
config dhcp 'lan2'
option interface 'lan2'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
The firewall configuration looks fine. I used 192.168.2.1 as IP for the lan1 port as this is what your screenshot shows.
1 Like
Thanks for the reply!

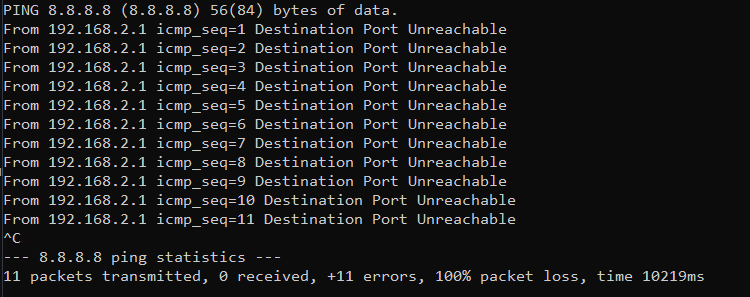

I did everything you said and it seems working fine, I got connected to my home server with SSH (locally) but I have no connection to the internet from it.

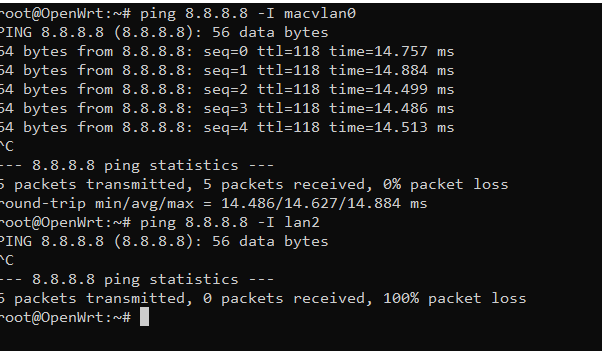

There is what I got from ping within OpenWRT
Good. I'm quite confident that the problem is the following:
You've got a default route on your router via wan. Your entire zone lan2 is not allowed to use wan, but should use wan2 instead - but it doesn't, since the default route points to wan.
I assume that you want to route out traffic from this host via wan2. AFAIK, you need some sort of policy-based routing for this. There is luci-app-pbr if you want to configure it via the GUI.
1 Like
Okay I got it installed. Can you please guide me on how exactly to do this?
I got it myself. Thank you very much! Finally I got it working and I don't have to pay extra for the switch
1 Like
Great! Could you post your final configuration for reference for others?
1 Like
Final config:
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fdb0:c2dc:e99a::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan2'
list ports 'lan3'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
option ifname 'tap0 tap0'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
config device
option name 'macvlan0'
option type 'macvlan'
option ifname 'wan'
option mode 'vepa'
option macaddr '<UNIQUE MAC>'
config interface 'wan2'
option proto 'dhcp'
option macaddr '<UNIQUE MAC>'
option device 'macvlan0'
option defaultroute '0'
config device
option name 'br-server'
option type 'bridge'
list ports 'lan1'
config interface 'lan2'
option device 'br-server'
option proto 'static'
option ipaddr '192.168.2.1'
option netmask '255.255.255.0'
option ip6assign '60'
config dnsmasq
option domainneeded '1'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option localservice '1'
option ednspacket_max '1232'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
config dhcp 'wan2'
option interface 'wan2'
option ignore '1'
config dhcp 'lan2'
option interface 'lan2'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
- Add contents below to /etc/config/firewall
config zone
option name 'wan2'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan2'
config zone
option name 'lan2'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan2'
config rule
option name 'Allow-All-From-LAN2-to-LAN'
option src 'lan2'
option dest 'lan'
option target 'ACCEPT'
config rule
option name 'Allow-All-From-LAN-to-LAN2'
option src 'lan'
option dest 'lan2'
option target 'ACCEPT'
config forwarding
option src 'lan2'
option dest 'wan2'
As an additional step, I installed luci-app-pbr and added new policy with all default settings and only changed the local addresses to my home server local IP. I assume you can add multiple IPs or use mask even.
Also, I have a question with this config, can I access my home server from the public IP if i just open the ports?
If you configure port-forwarding, I don't see a reason why this shouldn't work.
