AR-150 Gl.Inet #define AR933X_ETH_CFG_SW_ONLY_MODE BIT(6)

pippo1990 · November 18, 2025, 3:49pm

Hi there ,

I am trying to reproduce [Solved] Swconfig router and switch gl.inet ar150 . Setting both RJ45 Ethernet plugs working under the switch present in the minirouter: AR-150 Gl.Inet. (I guess it was OpenWRT 18.x.x).

First step with thev new Device Tree (DT) system is adding to ar9330_glinet_gl-ar150.dts (openwrt-main\target\linux\ath79\dts)

a line that says switch-only-mode = <1>; somewhere near where the device is descripted:

&eth1 {
	status = "okay";

	nvmem-cells = <&macaddr_art_0>;
	nvmem-cell-names = "mac-address";

	gmac-config {
		device = <&gmac>;

		switch-phy-addr-swap = <0>;
		switch-phy-swap = <0>;
		switch-only-mode = <1>;
	};
};

I don't know if it will work or not, but before that I have to add :

ag71xx_of_bit(np, "switch-only-mode", &val, AR933X_ETH_CFG_SW_ONLY_MODE);

into static void ag71xx_setup_gmac_933x(.........)

of ag71xx_gmac.c (\openwrt-main\target\linux\ath79\files\drivers\net\ethernet\atheros\ag71xx)

and #define AR933X_ETH_CFG_SW_ONLY_MODE BIT(6) into the * AR933X GMAC interface block of ag71xx_regs.h (\openwrt-main\target\linux\ath79\files\drivers\net\ethernet\atheros\ag71xx).

My problem so far is that using this approach will raise an [error: AR933X_ETH_CFG_SW_ONLY_MODE ‘undeclared' (first use in this function)] during compile/build; Function being ag71xx_setup_gmac_933x of ag71xx_gmac.c

while all the others #define don't throw any error at all.

I can get the Build process to terminate without error, adding #define AR933X_ETH_CFG_SW_ONLY_MODE BIT(6) into
ag71xx_gmac.c (\openwrt-main\target\linux\ath79\files\drivers\net\ethernet\atheros\ag71xx)
directly, but this makes me feel uneasy.

What am I getting wrong? Why is that?

ag71xx_gmac.c has a line with #include "ag71xx.h"

and ag71xx.h (openwrt-main\target\linux\ath79\files\drivers\net\ethernet\atheros\ag71xx) has a line that says #include <asm/mach-ath79/ar71xx_regs.h>

Why do I get the undecleared error ?

And what does #include <asm/mach-ath79/ar71xx_regs.h>, actually do ?

ElektromAn · November 19, 2025, 8:35pm

The entries/lines

#include <asm/mach-ath79/ar71xx_regs.h>
#include <asm/mach-ath79/ath79.h>

are little bit tricky to find ..

these are in

arch/mips/include/asm/mach-ath79

in you favorite linux source tree.

You have to create a patch and copy this into

target/linux/ath79/patches-6.12/

If you know how, this work of one minute

…

can you test ?

pippo1990 · November 19, 2025, 9:50pm

I cant understand your answer, my question is

given that ar71xx_regs.h is in openwrt\target\linux\ath79\image\lzma-loader\src

why I have #include <asm/mach-ath79/ar71xx_regs.h>

instead of #include <target\linux\ath79\image\lzma-loader\src/ar71xx_regs.h> ?

Or am I missing something about how compile build works ?

ElektromAn · November 20, 2025, 10:39am

please read here

Your target” directory will be at

build_dir/target-mips_24kc_musl/linux-ath79_generic/linux-6.12.57/

after “prepare” do here

git init
git add -A
git commit -m "root commit"

add the disiredt patches, i.e your BIT() thingy here, in

#include <asm/mach-ath79/ar71xx_regs.h>

commit with proper message

now do, for one patch

git format-patch -1 or better

copy the resulting "0001*” file to (note the nameing scheme there)

target/linux/ath79/patches-6.12

Voilà

pippo1990 · November 20, 2025, 2:10pm

I edited the sources and used make clean but the compiler still complained about the include were missing

ElektromAn · November 20, 2025, 8:02pm

make clean

will delete all you work

with the above instructions I’ve created this

$ cat 380-MIPS-ath79-AR933x-GMAC-add-missing-switch-only-bit.patch
From 46b49461c37d5d0deaa49f257309eb9213a72a63 Mon Sep 17 00:00:00 2001
From: Hans Ulli Kroll <linux@ulli-kroll.de>
Date: Thu, 20 Nov 2025 20:27:22 +0100
Subject: [PATCH] MIPS: ath79: AR933x GMAC add missing switch only bit

This adds missing switch only GMAC register definition for the
Qualcomm Atheros AR933X series MIPS SoCs.

Signed-off-by: Hans Ulli Kroll <linux@ulli-kroll.de>
---
 arch/mips/include/asm/mach-ath79/ar71xx_regs.h | 1 +
 1 file changed, 1 insertion(+)

diff --git a/arch/mips/include/asm/mach-ath79/ar71xx_regs.h b/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
index 38177c16a..3357169dd 100644
--- a/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
+++ b/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
@@ -1204,6 +1204,7 @@
 #define AR933X_ETH_CFG_MII_GE0_MASTER	BIT(3)
 #define AR933X_ETH_CFG_MII_GE0_SLAVE	BIT(4)
 #define AR933X_ETH_CFG_MII_GE0_ERR_EN	BIT(5)
+#define AR933X_ETH_CFG_SW_ONLY_MODE	BIT(6)
 #define AR933X_ETH_CFG_SW_PHY_SWAP	BIT(7)
 #define AR933X_ETH_CFG_SW_PHY_ADDR_SWAP	BIT(8)
 #define AR933X_ETH_CFG_RMII_GE0		BIT(9)
--
2.51.2

If you read the instruction carefully, you should know in which directory the patch belongs.

And yes this is compile tested with your ""switch-only-mode".

pippo1990 · November 20, 2025, 8:56pm

ok got that , but if I want to add the define in source code where should I put it ?

My first question was wrong, can't edit anymore. I added the define to

openwrt\target\linux\ath79\image\lzma-loader\src\ar71xx_regs.h.

But the compiler was throwing the error. I get the all patching stuff, but why changing

ar71xx_regs.h doesnt get somehow into final build. I would expect that definitions to get somehow into build_dir ........

why ag71xx_gmac.c imports from ag71xx.h but not from ar71xx_regs.h ?

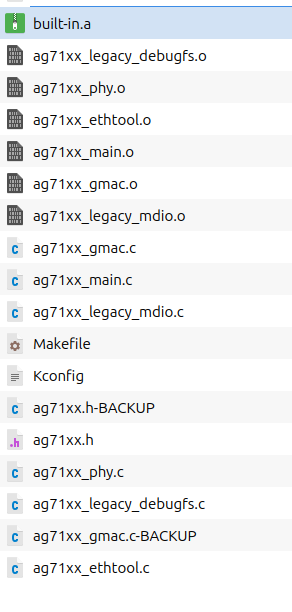

Ok think I got it because imports are to be considered at build_dir not source:

Is it ? Or am I wrong again ? Not sure my ar71xx_regs.h. in build_dir doesnt get the define SW_ONLY_MODE line , think I have to try clean rebuild again .....
..... not getting it, all other modified file keep modification in build_dir .......
unlesss some patch is reverting my changes ...

ElektromAn · November 21, 2025, 9:35am

yes

I thougt your where not stupid ..

Your have too combine the last two post from me.

Now the simpler solution,

openwrt $ cat target/linux/ath79/patches-6.12/380-MIPS-ath79-AR933x-GMAC-add-missing-switch-only-bit.patch

From 46b49461c37d5d0deaa49f257309eb9213a72a63 Mon Sep 17 00:00:00 2001
From: Hans Ulli Kroll <linux@ulli-kroll.de>
Date: Thu, 20 Nov 2025 20:27:22 +0100
Subject: [PATCH] MIPS: ath79: AR933x GMAC add missing switch only bit

This adds missing switch only GMAC register definition for the
Qualcomm Atheros AR933X series MIPS SoCs.

Signed-off-by: Hans Ulli Kroll <linux@ulli-kroll.de>
---
 arch/mips/include/asm/mach-ath79/ar71xx_regs.h | 1 +
 1 file changed, 1 insertion(+)

diff --git a/arch/mips/include/asm/mach-ath79/ar71xx_regs.h b/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
index 38177c16a..3357169dd 100644
--- a/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
+++ b/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
@@ -1204,6 +1204,7 @@
 #define AR933X_ETH_CFG_MII_GE0_MASTER	BIT(3)
 #define AR933X_ETH_CFG_MII_GE0_SLAVE	BIT(4)
 #define AR933X_ETH_CFG_MII_GE0_ERR_EN	BIT(5)
+#define AR933X_ETH_CFG_SW_ONLY_MODE	BIT(6)
 #define AR933X_ETH_CFG_SW_PHY_SWAP	BIT(7)
 #define AR933X_ETH_CFG_SW_PHY_ADDR_SWAP	BIT(8)
 #define AR933X_ETH_CFG_RMII_GE0		BIT(9)
--
2.51.2

read carefully the first line and verify this with your openwrt tree.

Did you see something ?

maybe something missing ?

pippo1990 · November 21, 2025, 8:03pm

yep went thorough QUILT, not brave enough to try git for the same purpose. Instructions seems clear here https://openwrt.org/docs/guide-developer/toolchain/use-patches-with-buildsystem#adding_or_editing_kernel_patches but they are not , a lot of try & redo. Are patches numbered with a precise pattern or just the last one get the higher number ?

ElektromAn · November 23, 2025, 1:44pm

Good you have found the solution, this was my idea

the quitl thing is for editing patches for a new version …

for numbering look here

Take the “closest” one

If you do a pull request it is very normal, that someone is arguing about your code ..

Make a good commit message,

pippo1990 · November 23, 2025, 9:08pm

inside openwrt (source top level, cloned by git, let's say Documents/openwrt) --> make target/linux/{clean,prepare} V=s QUILT=1

then same dir --> cd build_dir/target-mips_24kc_musl/linux-ath79_generic/linux-X.X.XXX

then --> quilt series

then --> quilt push -a

then --> quilt new platform/380-MIPS-ath79-AR933x-GMAC-add-missing-switch-only-bit.patch

then --> in editor add the modification to the file in your configured editor (sudo update- alternatives --config editor stuff)

quilt edit arch/mips/include/asm/mach-ath79/ar71xx_regs.h

then --> quilt diff

Checks the patch results as an example for my needs:

         				Index: linux-6.6.114/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
				===================================================================
				--- linux-X.X.XXX.orig/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
				+++ linux-X.X.X/arch/mips/include/asm/mach-ath79/ar71xx_regs.h
				@@ -1204,12 +1204,17 @@
 				#define AR933X_ETH_CFG_MII_GE0_MASTER	BIT(3)
 				#define AR933X_ETH_CFG_MII_GE0_SLAVE	BIT(4)
 				#define AR933X_ETH_CFG_MII_GE0_ERR_EN	BIT(5)
				+
				+#define AR933X_ETH_CFG_SW_ONLY_MODE	BIT(6)
				+
 				#define AR933X_ETH_CFG_SW_PHY_SWAP	BIT(7)
 				#define AR933X_ETH_CFG_SW_PHY_ADDR_SWAP	BIT(8)
 				#define AR933X_ETH_CFG_RMII_GE0		BIT(9)
 				#define AR933X_ETH_CFG_RMII_GE0_SPD_10	0
 				#define AR933X_ETH_CFG_RMII_GE0_SPD_100	BIT(10)

				+#define AR933X_RESET_GE0_MDIO		BIT(22)
				+
 				/*
  				* AR934X GMAC Interface
  				*/

then --> quilt refresh

then --> Change back to the toplevel directory of the buildroot (source top level, cloned by git; for me, as above: Documents/openwrt)

then --> make target/linux/update package/index V=s

should appear patch in :

      ~/Documents/OpenWRT/openwrt/target/linux/ath79/patches-X.X/380-MIPS-ath79-AR933x-GMAC-add-missing-switch-only-bit.patch

then --> make js=1 or make js=1 V=s or make clean js=1 V=s (it will recompile everything though) to get the new build openwrt.bin with patch 480
