Hi community,

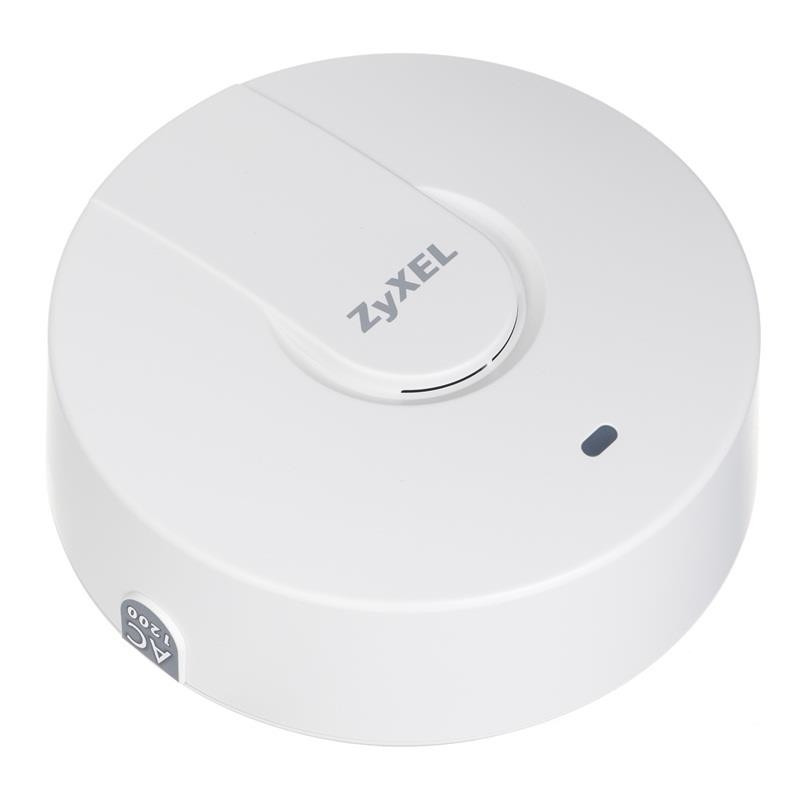

I have this Wireless Access Point:
NWA5123-AC v.1.0
Documentation:
https://prodotti.zyxel.it/USERSGUIDE/NWA5123-AC-EU0101F.pdf
Specifications:
https://www.zyxelguard.com/NWA5123-AC.asp
Datasheets:
https://www.zyxelguard.com/datasheets/NWA5123-AC_6.pdf
Quick Start Guide:
https://us.v-cdn.net/6029482/uploads/TO7KXGWJ4F1Y/nwa5123-ac-quick-start-guide-001.pdf
Official Firmwares:
NWA5123-AC_6.10(AAZY.8)C0
NWA5123-AC_5.00(AAZY.3)C0
NWA5123-AC_4.30(AAZY.0)C0
Do you think it is possible to integrate OpenWrt?
Zyxel no longer provides support for this device...
CPU: Qualcomm Atheros AR9344-DC3A MIPS 74Kc
RAM: 2 X W9751G6KB-25 (2 x 64MB)
I have uploaded several photos regarding the instrument directly to OpenWrt -> Media Manager -> Zyxel -> nwa5123-ac
Serial Port:

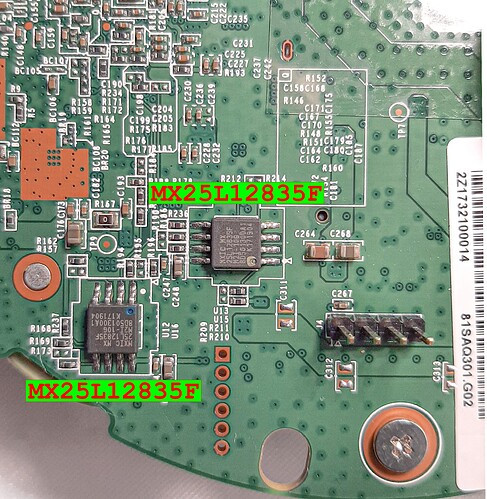

Flash:

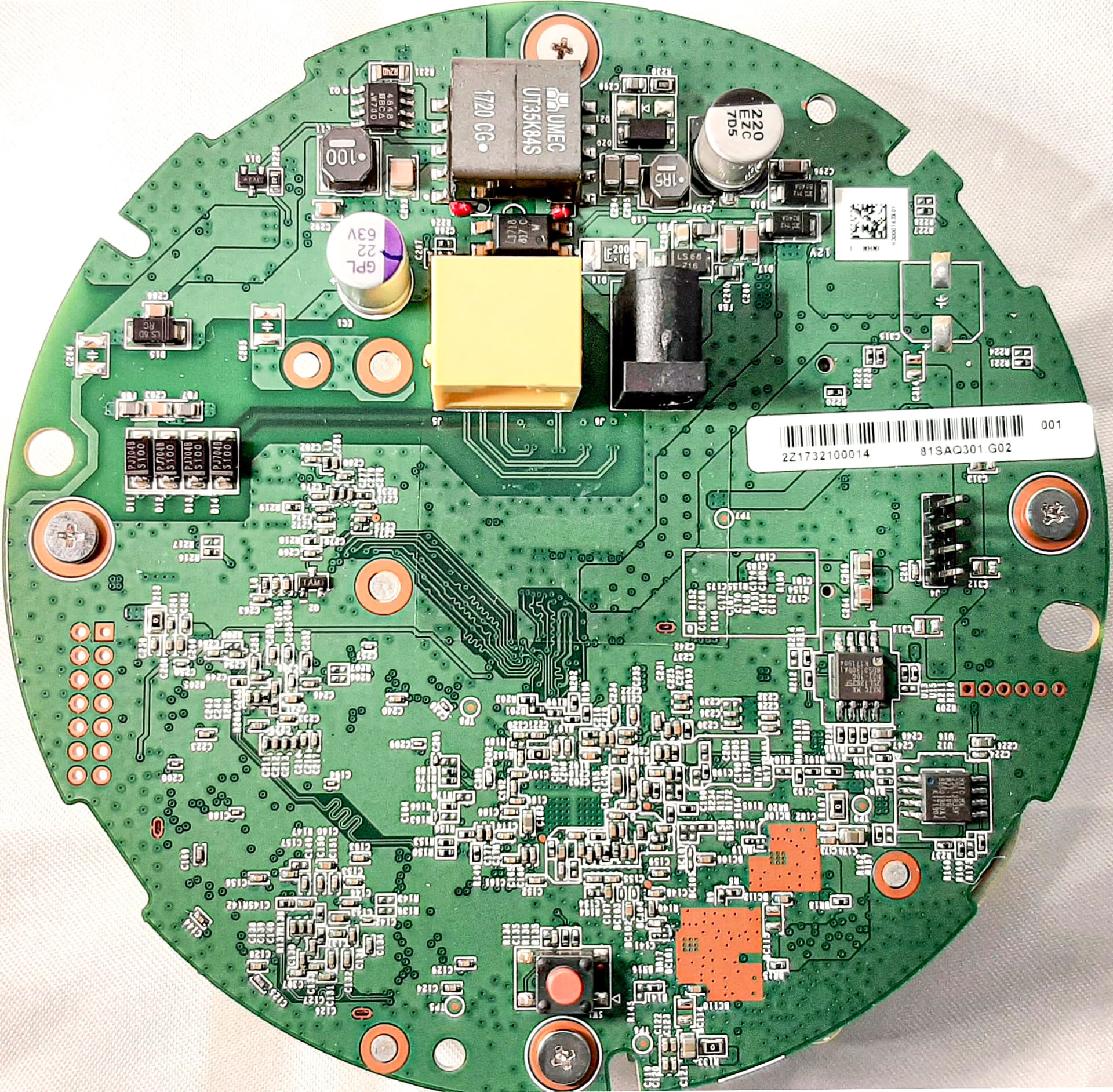

PCB top:
PCB bottom
I performed a complete dump of both Flash memories present: 2 x MX25L12835F (2 x 16MB):
FLASH A
A.bin
6.10(AAZY.8) | 2020-10-06 12:58:15
MD5: 81fea4a46797fe1cdcea789de6b96fb6
FLASH B
B.bin
5.00(AAZY.5) 2018-07-26 151015
MD5: 2c561a177463322752620bffaf7921c0
Through the UART port, I was able to get some information as follows:
Router# show version
Zyxel Communications Corp.
model : NWA5123-AC
firmware version: V6.10(AAZY.8)
BM version : V2.3
build date : 2020-10-06 12:58:15
Router# show mac
MAC address: B8:EC:A3:A7:AD:60-B8:EC:A3:A7:AD:62
Router# show serial-number
serial number: S172Z32100856
Router# debug system partition
dev: size erasesize name
mtd0: 00030000 00010000 "bootm"
mtd1: 00120000 00010000 "kernel"
mtd2: 00d50000 00010000 "zldfs"
mtd3: 00100000 00010000 "conf"
mtd4: 00010000 00010000 "myZyXEL"
mtd5: 00010000 00010000 "mrd"
mtd6: 00030000 00010000 "disklog"
mtd7: 00010000 00010000 "ART"
mtd8: 00180000 00010000 "recovery"
mtd9: 00120000 00010000 "backup_ker"
mtd10: 00d50000 00010000 "backup_fs"
mtd11: 00010000 00010000 "myZyXEL"
zysudo uid=10001,euid=0
Router#
Router# show interface all
No. Name Status IP Address Mask IP Assignment
===============================================================================
2 lan Up 0.0.0.0 0.0.0.0 DHCP client
3 wlan-1 n/a n/a n/a n/a
4 wlan-1-1 Up 0.0.0.0 0.0.0.0 static
5 wlan-2 n/a n/a n/a n/a
6 wlan-2-1 Up 0.0.0.0 0.0.0.0 static
Router> debug dual-image show
KERNEL
Image0 Kernel Version : 2.6.31 | 2020-10-06 12:45:43
Image0 Zldfs Version : 6.10(AAZY.8) | 2020-10-06 12:58:15
Image0 Status : SUCCESS
Last Upgrade Time : 2021-06-28 13:08:03
BACK UP KERNEL
Image1 Kernel Version : 2.6.31 | 2018-07-26 14:55:09
Image1 Zldfs Version : 5.00(AAZY.5) | 2018-07-26 15:10:15
Image1 Status : SUCCESS
Last Upgrade Time : 2020-10-27 09:39:03
Boot Image num : 0
Current Image num : 0
Router# debug system dmesg
[ 0.000000] Linux version 2.6.31 (jenkins@zybuild-234) (gcc version 4.6.3 20120201 (prerelease) (Linaro GCC 4.6-2012.02) ) #1 Tue Oct 6 12:45:39 CST 2020
[ 0.000000] flash_size passed from bootloader = 32
[ 0.000000] arg 1: console=ttyS0,115200
[ 0.000000] arg 2: root=31:02
[ 0.000000] arg 3: init=/sbin/zyinit
[ 0.000000] arg 4: rootfstype=squashfs
[ 0.000000] arg 5: mtdparts=ath-nor0:192k(bootm),1152k(kernel),13632k(zldfs),1024k(conf),64k(myZyXEL),64k(mrd),192k(disklog),64k(ART);ath-nor1:1536k(recovery),1152k(backup_ker),13632k(backup_fs),64k(myZyXEL);
[ 0.000000] arg 6: bootImage=0
[ 0.000000] arg 7: mem=128M
[ 0.000000] CPU revision is: 0001974c (MIPS 74Kc)
[ 0.000000] ath_sys_frequency: cpu srif ddr srif cpu 560 ddr 430 ahb 215
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 02000000 @ 00000000 (usable)
[ 0.000000] User-defined physical RAM map:
[ 0.000000] memory: 08000000 @ 00000000 (usable)
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Zone PFN ranges:
[ 0.000000] Normal 0x00000000 -> 0x00008000
[ 0.000000] Movable zone start PFN for each node
[ 0.000000] early_node_map[1] active PFN ranges
[ 0.000000] 0: 0x00000000 -> 0x00008000
[ 0.000000] On node 0 totalpages: 32768
[ 0.000000] free_area_init_node: node 0, pgdat 8029fa40, node_mem_map 81000000
[ 0.000000] Normal zone: 256 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 32512 pages, LIFO batch:7
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32512
[ 0.000000] Kernel command line: console=ttyS0,115200 root=31:02 init=/sbin/zyinit rootfstype=squashfs mtdparts=ath-nor0:192k(bootm),1152k(kernel),13632k(zldfs),1024k(conf),64k(myZyXEL),64k(mrd),192k(disklog),64k(ART);ath-nor1:1536k(recovery),1152k(backup_ker),13632k(backup_fs),64k(myZyXEL); bootImage=0 mem=128M
[ 0.000000] PID hash table entries: 512 (order: 9, 2048 bytes)
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 122680k/131072k available (2146k kernel code, 8216k reserved, 539k data, 152k init, 0k highmem)
[ 0.000000] NR_IRQS:128
[ 0.000000] plat_time_init: plat time init done
[ 0.000000] Calibrating delay loop... 279.55 BogoMIPS (lpj=559104)
[ 0.096000] Mount-cache hash table entries: 512
[ 0.096000] SKBUFF Debug 2k range: 802e6fa0 to 803e6fa0
[ 0.096000] SKBUFF Debug 4k range: 803e6fa0 to 806e6fa0
[ 0.096000]
[ 0.096000] ****************ALLOC***********************
[ 0.096000] Packet mem: 802e6fa0 (0x400000 bytes)
[ 0.096000] ********************************************
[ 0.096000]
[ 0.096000] NET: Registered protocol family 16
[ 0.096000] ath_pcibios_init: bus 0
[ 0.096000] ath_pcibios_init(250): PCI 0 CMD write: 0x356
[ 0.096000] registering PCI controller with io_map_base unset
[ 0.096000] bio: create slab <bio-0> at 0
[ 0.096000] SCSI subsystem initialized
[ 0.096000] pci 0000:00:00.0: reg 10 64bit mmio: [0x000000-0x1fffff]
[ 0.096000] pci 0000:00:00.0: reg 30 32bit mmio: [0x000000-0x00ffff]
[ 0.096000] pci 0000:00:00.0: supports D1 D2
[ 0.096000] pcibios_map_irq: IRQ 70 for bus 0
[ 0.100000] NET: Registered protocol family 2
[ 0.100000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.100000] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.100000] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.100000] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.100000] TCP reno registered
[ 0.100000] NET: Registered protocol family 1
[ 0.100000] ATH GPIOC major 0
[ 0.100000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.100000] JFFS2 version 2.2 (ZLIB) (RTIME) (c) 2001-2006 Red Hat, Inc.
[ 0.100000] fuse init (API version 7.12)
[ 0.100000] msgmni has been set to 239
[ 0.100000] io scheduler noop registered
[ 0.100000] io scheduler deadline registered (default)
[ 0.100000] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 0.100000] serial8250.0: ttyS0 at MMIO 0xb8020000 (irq = 19) is a 16550A
[ 0.100000] console [ttyS0] enabled
[ 0.100000] brd: module loaded
[ 0.104000] mtd: no mtd-id
[ 0.104000] 8 cmdlinepart partitions found on MTD device ath-nor0
[ 0.104000] Creating 8 MTD partitions on "ath-nor0":
[ 0.104000] 0x000000000000-0x000000030000 : "bootm"
[ 0.104000] 0x000000030000-0x000000150000 : "kernel"
[ 0.104000] 0x000000150000-0x000000ea0000 : "zldfs"
[ 0.104000] 0x000000ea0000-0x000000fa0000 : "conf"
[ 0.104000] 0x000000fa0000-0x000000fb0000 : "myZyXEL"
[ 0.104000] 0x000000fb0000-0x000000fc0000 : "mrd"
[ 0.104000] 0x000000fc0000-0x000000ff0000 : "disklog"
[ 0.104000] 0x000000ff0000-0x000001000000 : "ART"
[ 0.104000] 4 cmdlinepart partitions found on MTD device ath-nor1
[ 0.104000] Creating 4 MTD partitions on "ath-nor1":
[ 0.104000] 0x000000000000-0x000000180000 : "recovery"
[ 0.104000] 0x000000180000-0x0000002a0000 : "backup_ker"
[ 0.104000] 0x0000002a0000-0x000000ff0000 : "backup_fs"
[ 0.104000] 0x000000ff0000-0x000001000000 : "myZyXEL"
[ 0.104000] u32 classifier
[ 0.104000] Performance counters on
[ 0.104000] nf_conntrack version 0.5.0 (2048 buckets, 8192 max)
[ 0.104000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 0.104000] TCP cubic registered
[ 0.104000] NET: Registered protocol family 10
[ 0.108000] lo: Disabled Privacy Extensions
[ 0.108000] IPv6 over IPv4 tunneling driver
[ 0.108000] sit0: Disabled Privacy Extensions
[ 0.108000] ip6tnl0: Disabled Privacy Extensions
[ 0.108000] NET: Registered protocol family 17
[ 0.108000] Bridge firewalling registered
[ 0.108000] Ebtables v2.0 registered
[ 0.108000] 802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
[ 0.108000] All bugs added by David S. Miller <davem@redhat.com>
[ 0.108000] athwdt_init: Registering WDT success
[ 0.108000] ath_otp_init: Registering OTP success
[ 0.108000] ath_clksw_init: Registering Clock Switch Interface success
[ 0.116000] VFS: Mounted root (squashfs filesystem) readonly on device 31:2.
[ 0.120000] Freeing unused kernel memory: 152k freed
[ 0.128000] Please be patient, while OpenWrt loads ...
[ 4.736000] zld_mrd: module license 'ZyXEL' taints kernel.
[ 4.736000] Disabling lock debugging due to kernel taint
[ 4.748000] init kernel log netlink done
[ 4.920000] ATHR_GMAC: Length per segment 1536
[ 4.920000] ATHR_GMAC: fifo cfg 3 01f00140
[ 4.920000] ATHR_GMAC: RX TASKLET - Pkts per Intr:100
[ 4.920000] ATHR_GMAC: Mac address for unit 0:bfff0000
[ 4.920000] ATHR_GMAC: ff:ff:ff:ff:ff:ff
[ 5.472000] ATHR_GMAC: Max segments per packet : 1
[ 5.472000] ATHR_GMAC: Max tx descriptor count : 128
[ 5.472000] ATHR_GMAC: Max rx descriptor count : 192
[ 5.472000] ATHR_GMAC: Mac capability flags : 2380
[ 5.524000] platform_support_init: insert module
[ 5.528000] athr_gmac_ring_alloc Allocated 2048 at 0x87a27000
[ 5.528000] athr_gmac_ring_alloc Allocated 3072 at 0x87a00000
[ 5.828000] WASP ----> F1e PHY
[ 5.828000] Setting Drop CRC Errors, Pause Frames and Length Error frames
[ 5.828000] Setting PHY...
[ 5.828000] ATHR_AUTONEG_ADVERT:DE1
[ 5.828000] ATHR_1000BASET_CONTROL:200
[ 5.828000] ATHR_PHY_CONTROL:1000
[ 5.828000] ATHRSF1_PHY: Port 0, Neg Success
[ 5.828000] ATHRSF1_PHY: unit 0 phy addr 0
[ 5.828000] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 9.848000] notify_userspace:1322 >> Fail to lkud_notify_userspace!
[ 9.848000] ATH_MAC_TIMER: enet unit:0 is up...
[ 9.848000] RGMii 1000Mbps full duplex
[ 9.848000] ATH_MAC_TIMER: done cfg2 0x7215 ifctl 0x0 miictrl
[ 9.848000] Setting Drop CRC Errors, Pause Frames and Length Error frames
[ 9.848000] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 20.764000] eth0: no IPv6 routers present
[ 23.736000] ATHR_AUTONEG_ADVERT:DE1
[ 23.736000] ATHR_1000BASET_CONTROL:200
[ 23.736000] ATHR_PHY_CONTROL:1000
[ 23.736000] ATHRSF1_PHY: Port 0, Neg Success
[ 23.736000] ATHRSF1_PHY: unit 0 phy addr 0 athr_gmac_ring_free Freeing at 0x87a27000
[ 23.912000] athr_gmac_ring_free Freeing at 0x87a00000
[ 23.924000] athr_gmac_ring_alloc Allocated 2048 at 0x87a27000
[ 23.924000] athr_gmac_ring_alloc Allocated 3072 at 0x87a00000
[ 24.224000] WASP ----> F1e PHY
[ 24.224000] Setting Drop CRC Errors, Pause Frames and Length Error frames
[ 24.224000] Setting PHY...
[ 24.224000] ATHR_AUTONEG_ADVERT:DE1
[ 24.224000] ATHR_1000BASET_CONTROL:200
[ 24.224000] ATHR_PHY_CONTROL:1000
[ 24.224000] ATHRSF1_PHY: Port 0, Neg Success
[ 24.224000] ATHRSF1_PHY: unit 0 phy addr 0
[ 24.228000] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 28.244000] ATH_MAC_TIMER: enet unit:0 is up...
[ 28.244000] RGMii 1000Mbps full duplex
[ 28.244000] ATH_MAC_TIMER: done cfg2 0x7215 ifctl 0x0 miictrl
[ 28.244000] Setting Drop CRC Errors, Pause Frames and Length Error frames
[ 28.244000] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 30.976000] ip_set version 4 loaded
[ 34.276000] ****Address of trace_timer :858db680
[ 34.924000] ath_hal: 0.9.17.1 (AR5416, AR9380, DEBUG, REGOPS_FUNC, WRITE_EEPROM, TX_DATA_SWAP, RX_DATA_SWAP, 11D)
[ 35.044000] ath_rate_atheros: Copyright (c) 2001-2005 Atheros Communications, Inc, All Rights Reserved
[ 35.056000] ath_tx99: Version 2.0
[ 35.056000] Copyright (c) 2010 Atheros Communications, Inc, All Rights Reserved
[ 35.076000] ath_spectral: Version 2.0.0
[ 35.076000] Copyright (c) 2005-2009 Atheros Communications, Inc. All Rights Reserved
[ 35.080000] SPECTRAL module built on Oct 6 2020 12:44:38
[ 35.188000] ath_dfs: Version 2.0.0
[ 35.188000] Copyright (c) 2005-2006 Atheros Communications, Inc. All Rights Reserved
[ 35.584000] ath_dev: Copyright (c) 2001-2007 Atheros Communications, Inc, All Rights Reserved
[ 38.160000] ath_ahb: 10.2.r2-00013-4 (Atheros/multi-bss)
[ 38.160000] __ath_attach: Set global_scn[0]
[ 38.160000] *** All the minfree values should be <= ATH_TXBUF-32, otherwise default value will be used instead ***
[ 38.160000] ACBKMinfree = 48
[ 38.160000] ACBEMinfree = 32
[ 38.160000] ACVIMinfree = 16
[ 38.160000] ACVOMinfree = 0
[ 38.160000] CABMinfree = 48
[ 38.160000] UAPSDMinfree = 0
[ 38.160000] ATH_TXBUF=1024
[ 38.164000] Bootstrap clock 40MHz
[ 38.168000] Enterprise mode: 0x00000000
[ 38.168000] Restoring Cal data from Flash
[ 38.172000] SPECTRAL : get_capability not registered
[ 38.172000] HAL_CAP_PHYDIAG : Capable
[ 38.172000] SPECTRAL : Need to fix the capablity check for RADAR (spectral_attach : 231)
[ 38.172000] SPECTRAL : get_capability not registered
[ 38.172000] HAL_CAP_RADAR : Capable
[ 38.172000] SPECTRAL : Need to fix the capablity check for SPECTRAL
[ 38.172000] (spectral_attach : 236)
[ 38.172000] SPECTRAL : get_capability not registered
[ 38.172000] HAL_CAP_SPECTRAL_SCAN : Capable
[ 38.172000] SPECTRAL : get_tsf64 not registered
[ 38.172000] spectral_init_netlink 52 NULL SKB
[ 38.172000] SPECTRAL : No ADVANCED SPECTRAL SUPPORT
[ 38.172000] SPECTRAL :----- module attached
[ 38.172000] Green-AP : Green-AP : Attached
[ 38.172000]
[ 38.176000] ath_get_caps[6196] rx chainmask mismatch actual 3 sc_chainmak 0
[ 38.176000] ath_get_caps[6171] tx chainmask mismatch actual 3 sc_chainmak 0
[ 38.180000] ath_attach_dfs[12669] dfsdomain 1
[ 38.188000] SPECTRAL : module already attached
[ 38.188000] ald_init_netlink NETLINK_KERNEL_CREATE FAILED
[ 38.192000] ath_tx_paprd_init sc 859f0000 PAPRD disabled in HAL
[ 38.200000] SC Callback Registration for wifi0
[ 38.200000] wifi0: Atheros 9340: mem=0xb8100000, irq=2
[ 38.200000] ath_pci: 10.2.r2-00013-4 (Atheros/multi-bss)
[ 38.200000] ath_pci_probe
[ 38.200000] PCI device id is 003c :003c
[ 38.200000] PCI: Setting latency timer of device 0000:00:00.0 to 64
[ 38.204000] ath_pci 0000:00:00.0: ath DEBUG: sc=0x85866c00
[ 38.204000]
[ 38.204000] ol_ath_pci_configure : num_desired MSI set to 0
[ 38.204000]
[ 38.204000] Using PCI Legacy Interrupt
[ 39.008000] CE_per_engine_handler_adjust, base=85866c00 offset=57400
[ 39.008000] CE_per_engine_handler_adjust, base=85866c00 offset=57800
[ 39.016000] __ol_ath_attach: ath_attach TODO
[ 39.020000] __ol_ath_attach: dev name wifi1
[ 39.020000] ol_ath_set_default_tgt_config : AC Minfree buffer allocation through module param (umac.ko)
[ 39.020000] OL_ACBKMinfree : 0
[ 39.020000] OL_ACBEMinfree : 0
[ 39.020000] OL_ACVIMinfree : 0
[ 39.020000] OL_ACVOMinfree : 0
[ 39.020000] ol_ath_attach() BMI inited.
[ 39.020000] ol_ath_attach() BMI Get Target Info.
[ 39.020000] ol_ath_attach() TARGET TYPE: 7 Vers 0x4100016c
[ 39.020000] NUM_DEV=1 FWMODE=0x2 FWSUBMODE=0x0 FWBR_BUF 0
[ 39.020000] ol_ath_attach() configure Target .
[ 39.020000] ol_transfer_bin_file 1947: Download Board data len 2116
[ 39.028000] ol_ath_download_firmware: Using 0x1234 for the remainder of init
[ 39.028000] ol_transfer_bin_file 1939: Download OTP data len 7208
[ 39.112000] ol_transfer_bin_file 1985: Download Firmware data len 234648:234646
[ 40.108000] ol_ath_attach() Download FW.
[ 40.108000] ol_ath_attach() HT Create .
[ 40.108000] ol_ath_attach() HIF Claim.
[ 40.108000] ol_ath_attach() BMI Done.
[ 40.108000] ol_ath_attach() WMI attached. wmi_handle 845c0000
[ 40.108000] +HWT
[ 40.108000] SOC_RESET_CONTROL_ADDRESS : 800
[ 40.108000] CPU_INTR_ADDRESS = [2000000]
[ 40.108000] SOC_GLOBAL_RESET_ADDRESS = [0]
[ 40.108000] Rx_Filter : [0]
[ 40.108000] CE_per_engine_handler_adjust, base=85866c00 offset=57400
[ 40.108000] CE_per_engine_handler_adjust, base=85866c00 offset=57800
[ 40.108000] CE_per_engine_handler_adjust, base=85866c00 offset=57c00
[ 40.108000] CE_per_engine_handler_adjust, base=85866c00 offset=58000
[ 40.108000] CE_per_engine_handler_adjust, base=85866c00 offset=58400
[ 40.108000] CE_per_engine_handler_adjust, base=85866c00 offset=58800
[ 40.112000] CE_recv_buf_enqueue 653 Populate last entry 512 for CE 5
[ 40.112000] CE_recv_buf_enqueue 662 CE 5 wi 511 dest_ptr 0x4127020 nbytes 0 recv_ctxt 0x84122080
[ 40.112000] -HWT
[ 40.116000] HTC Service:0x0300 ep:1 TX flow control disabled
[ 40.124000] CE_pkt_dl_len_set CE 4 Pkt download length 64
[ 40.124000] ol_txrx_pdev_attach: 1424 tx desc's allocated ; range starts from 83db0000
[ 40.124000] TXRX: Created pdev 8415ee00
[ 40.124000] HTC Service:0x0100 ep:2 TX flow control disabled
[ 40.128000] wmi_service_ready_event_rx: WMI UNIFIED SERVICE READY event
[ 40.128000] num_rf_chain : 00000002
[ 40.128000] ht_cap_info: : 0000085b
[ 40.128000] vht_cap_info : 338001b2
[ 40.128000] vht_supp_mcs : 0000fffa
[ 40.128000] LARGE_AP enabled. num_peers 131, num_vdevs 16, num_tids 230
[ 40.128000] idx 0 req 1 num_units 0 num_unit_info 2 unit size 440 actual units 132
[ 40.128000] chunk 0 len 58080 requested ,ptr 0x3dc0000
[ 40.136000] FIRMWARE:P 132 V 16 T 404
[ 40.136000]
[ 40.136000] FIRMWARE:ZyXEL build - NO ED2 patch7 @ Apr 29 2020 13:36:25
[ 40.136000] FIRMWARE:_wlan_rtt_enable
[ 40.148000] wmi_ready_event_rx: WMI UNIFIED READY event
[ 40.148000] ol_ath_connect_htc() WMI is ready
[ 40.148000] ol_ath_set_host_app_area TODO
[ 40.148000] target uses HTT version 2.1; host uses 2.1
[ 40.152000] ol_ath_attach() connect HTC.
[ 40.152000] bypasswmi : 0
[ 40.152000] ol_regdmn_start: reg-domain param: regdmn=0, countryName=, wModeSelect=FFFFFFFF, netBand=FFFFFFFF, extendedChanMode=0.
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 40.152000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 40.152000] Add VHT80 channel: 5210
[ 40.152000] Add VHT80 channel: 5290
[ 40.152000] Add VHT80 channel: 5530
[ 40.152000] Add VHT80 channel: 5610
[ 40.152000] Add VHT80 channel: 5690
[ 40.152000] Add VHT80 channel: 5775
[ 40.152000] Skipping VHT80 channel 5825
[ 40.156000] ol_ath_phyerr_attach: called
[ 40.156000] OL Resmgr Init-ed
[ 40.156000] ol_if_spectral_setup
[ 40.156000] SPECTRAL : get_capability not registered
[ 40.156000] HAL_CAP_PHYDIAG : Capable
[ 40.156000] SPECTRAL : Need to fix the capablity check for RADAR (spectral_attach : 231)
[ 40.156000] SPECTRAL : get_capability not registered
[ 40.156000] HAL_CAP_RADAR : Capable
[ 40.156000] SPECTRAL : Need to fix the capablity check for SPECTRAL
[ 40.156000] (spectral_attach : 236)
[ 40.156000] SPECTRAL : get_capability not registered
[ 40.156000] HAL_CAP_SPECTRAL_SCAN : Capable
[ 40.156000] SPECTRAL : get_tsf64 not registered
[ 40.156000] spectral_init_netlink 52 NULL SKB
[ 40.156000] Green-AP : Green-AP : Attached
[ 40.156000]
[ 40.156000] Green-AP : Attached
[ 40.156000] ol_if_dfs_setup: called
[ 40.156000] ol_if_dfs_attach: called; ptr=83da9974, radar_info=858b9af0
[ 40.160000] ol_ath_rtt_meas_report_attach: called
[ 40.160000] wmi_unified_register_event_handler : event handler is already registered: event id 0x901f
[ 40.160000] ol_ath_attach() UMAC attach .
[ 40.160000] ol_if_dfs_configure: called
[ 40.160000] ol_if_dfs_configure: FCC domain
[ 40.160000] ol_if_dfs_disable: called
[ 40.160000] ol_ath_attach: Calling ol_if_dfs_configure
[ 40.160000] ald_init_netlink NETLINK_KERNEL_CREATE FAILED
[ 40.160000] __ol_ath_attach: init tx/rx TODO
[ 40.160000] __ol_ath_attach: hard_header_len reservation 58
[ 40.160000] SC Callback Registration for wifi1
[ 40.232000] Initializing Pktlogs for 11ac
[ 40.368000] ath_attach_dfs[12669] dfsdomain 1
[ 40.400000] isCountryCodeValid: EEPROM regdomain 0x0
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 40.400000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 40.400000] Add VHT80 channel: 5210
[ 40.400000] Add VHT80 channel: 5290
[ 40.400000] Add VHT80 channel: 5530
[ 40.400000] Add VHT80 channel: 5610
[ 40.400000] Skipping VHT80 channel 5660
[ 40.400000] Skipping VHT80 channel 5680
[ 40.400000] Skipping VHT80 channel 5700
[ 41.112000] FWLOG: [44338] WHAL_ERROR_RECV_STOPPCU ( 0x110298a, 0x3 )
[ 41.112000] FWLOG: [44338] WHAL_ERROR_RESET_PM ( )
[ 52.008000] device vlan1 entered promiscuous mode
[ 52.008000] device eth0 entered promiscuous mode
[ 52.484000] ADDRCONF(NETDEV_CHANGE): vlan1: link becomes ready
[ 54.160000] br0: port 1(vlan1) entering forwarding state
[ 55.804000] ol_if_dfs_clist_update: called, cmd=1, nollist=(null), nentries=0
[ 65.188000] ath_attach_dfs[12669] dfsdomain 2
[ 65.328000] sc nodebug 0
[ 65.340000] DCS for CW interference mitigation: 0
[ 65.340000] DCS for WLAN interference mitigation: 0
[ 65.836000] wlan_vap_create : enter. devhandle=0x844602c0, opmode=IEEE80211_M_HOSTAP, flags=0x1
[ 65.836000] wlan_vap_create : exit. devhandle=0x844602c0, opmode=IEEE80211_M_HOSTAP, flags=0x1.
[ 65.836000] WDS Vlan Disable adf_net_vlan_attach: VAP(wlan-1-1)
[ 65.836000] VAP device wlan-1-1 created osifp: (83f2fac0) os_if: (84404000)
[ 65.996000] ieee80211_ioctl_siwmode: imr.ifm_active=131712, new mode=3, valid=1
[ 66.040000] Set freq vap stop send + 84404000
[ 66.040000] Set freq vap stop send -84404000
[ 66.168000] Set wait done --84404000
[ 68.428000] ieee80211_ioctl_siwmode: imr.ifm_active=131712, new mode=3, valid=1
[ 68.428000] DEVICE IS DOWN ifname=wlan-1-1
[ 68.428000] DEVICE IS DOWN ifname=wlan-1-1
[ 68.432000]
[ 68.432000] DES SSID SET=Zyxel-AD60
[ 68.588000] device wlan-1-1.1 entered promiscuous mode
[ 68.588000] device wlan-1-1 entered promiscuous mode
[ 68.588000] br0: port 2(wlan-1-1.1) entering forwarding state
[ 73.628000] ol_if_dfs_clist_update: called, cmd=1, nollist=(null), nentries=0
[ 74.296000] TXRX printout level changed from 3 to 0
[ 74.324000] isCountryCodeValid: EEPROM regdomain 0x0
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 74.324000] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 74.324000] Add VHT80 channel: 5210
[ 74.324000] Add VHT80 channel: 5290
[ 74.324000] Add VHT80 channel: 5530
[ 74.324000] Add VHT80 channel: 5610
[ 74.324000] Skipping VHT80 channel 5660
[ 74.324000] Skipping VHT80 channel 5680
[ 74.324000] Skipping VHT80 channel 5700
[ 74.448000] dfs_control enable detects, ignore_dfs 0
[ 74.612000] ath_ioctl: SIOC80211IFCREATE CALLED
[ 74.612000] wmi_unified_vdev_create_send: ID = 0 VAP Addr = b8:ec:a3:a7:ad:62:
[ 74.616000] Setting dscp for vap id: 0
[ 74.616000] WDS Vlan Disable adf_net_vlan_attach: VAP(wlan-2-1)
[ 74.616000] VAP device wlan-2-1 created osifp: (83ee32c0) os_if: (84408000)
[ 74.764000] ieee80211_ioctl_siwmode: imr.ifm_active=66176, new mode=3, valid=1
[ 74.808000] Set freq vap stop send + 84408000
[ 74.808000] OL vap_stop +
[ 74.808000] wmi_unified_vdev_stop_send for vap 0 (845c0000)
[ 74.808000] OL vap_stop -
[ 74.808000] STOPPED EVENT for vap 0 (845c0000)
[ 74.808000] Set freq vap stop send -84408000
[ 74.936000] Set wait done --84408000
[ 76.452000] ieee80211_ioctl_siwmode: imr.ifm_active=66176, new mode=3, valid=1
[ 76.452000] DEVICE IS DOWN ifname=wlan-2-1
[ 76.452000] DEVICE IS DOWN ifname=wlan-2-1
[ 76.456000]
[ 76.456000] DES SSID SET=Zyxel-AD60
[ 76.456000] OL vap_stop +
[ 76.456000] wmi_unified_vdev_stop_send for vap 0 (845c0000)
[ 76.456000] OL vap_stop -
[ 76.460000] STOPPED EVENT for vap 0 (845c0000)
[ 76.588000] OL vap_start +
[ 76.588000] wmi_unified_vdev_start_send for vap 0 (845c0000)
[ 76.588000] OL vap_start -
[ 76.596000] ol_vdev_start_resp_ev for vap 0 (845c0000)
[ 76.596000] ol_ath_vap_join: join operation is only for STA/IBSS mode
[ 76.596000] ol_ath_wmm_update:
[ 76.596000] wmi_unified_vdev_up_send for vap 0 (845c0000)
[ 76.596000] Notification to UMAC VAP layer
[ 77.588000] device wlan-2-1.1 entered promiscuous mode
[ 77.588000] device wlan-2-1 entered promiscuous mode
[ 77.592000] br0: port 3(wlan-2-1.1) entering forwarding state
[ 77.812000] ol_ath_vap_set_param: VAP Mcast to Unicast buffer release (cmd): 0
[ 77.812000] wmi_mcast_buf_release_handler: VAP Mcast to Unicast buffer released:0
[ 77.816000] ol_ath_vap_set_param: VAP param is now supported param:66 value:0
[ 77.816000] wmi_mcast_buf_release_handler: VAP Mcast to Unicast buffer released:0
[ 77.820000] ol_ath_vap_set_param: VAP param is now supported param:11 value:3
[ 84.272000] br0: port 2(wlan-1-1.1) entering disabled state
[ 85.276000] Set freq vap stop send + 84404000
[ 85.276000] Set freq vap stop send -84404000
[ 85.428000] Set wait done --84404000
[ 85.596000] br0: port 2(wlan-1-1.1) entering forwarding state
[ 93.144000] wmi_unified_vdev_stop_send for vap 0 (845c0000)
[ 93.144000] STOPPED EVENT for vap 0 (845c0000)
[ 93.160000] br0: port 3(wlan-2-1.1) entering disabled state
[ 94.176000] Set freq vap stop send + 84408000
[ 94.176000] OL vap_stop +
[ 94.176000] wmi_unified_vdev_stop_send for vap 0 (845c0000)
[ 94.176000] OL vap_stop -
[ 94.176000] STOPPED EVENT for vap 0 (845c0000)
[ 94.176000] Set freq vap stop send -84408000
[ 94.304000] Set wait done --84408000
[ 94.304000] OL vap_stop +
[ 94.304000] wmi_unified_vdev_stop_send for vap 0 (845c0000)
[ 94.304000] OL vap_stop -
[ 94.304000] STOPPED EVENT for vap 0 (845c0000)
[ 94.432000] OL vap_start +
[ 94.432000] wmi_unified_vdev_start_send for vap 0 (845c0000)
[ 94.432000] OL vap_start -
[ 94.440000] ol_vdev_start_resp_ev for vap 0 (845c0000)
[ 94.440000] ol_ath_vap_join: join operation is only for STA/IBSS mode
[ 94.440000] ol_ath_wmm_update:
[ 94.440000] wmi_unified_vdev_up_send for vap 0 (845c0000)
[ 94.440000] Notification to UMAC VAP layer
[ 95.432000] br0: port 3(wlan-2-1.1) entering forwarding state
[ 127.164000] br0: port 2(wlan-1-1.1) entering disabled state
[ 128.172000] Set freq vap stop send + 84404000
[ 128.172000] Set freq vap stop send -84404000
[ 128.300000] Set wait done --84404000
[ 128.460000] br0: port 2(wlan-1-1.1) entering forwarding state
zysudo uid=10001,euid=0
If you need, I can provide you with further details...
