Glad it worked for you
Do you have V1 or V2 version of the device?
@elmismo I speak Portuguese and English. I can understand basic Spanish as any Portuguese does, but don't speak it very well.
If you have V2 version, I'm curious to see if this build works... specially the 5GHz wifi, since it was mentioned here that it would have a different chipset (I only have V1 and it's been working great so far). Because if this works for both versions I can submit a pull request and see of they make this official.
I have v1.
Looks like I'll need some time to learn how to properly configure openwrt
I'm experiencing issues with connectivity. I've configured this device as an AP and have connected to LAN port on existing home router.
Setup:
ISP -- routerA (192.168.7.1) - [LAN Port - 192.168.7.0/24] -- (192.168.7.70) AP (192.168.1.1)-- wlan (192.168.1.0/24 -- client pc (192.168.1.x)
After random time, the AP stops passing traffic to WAN. From client pc I am able to ping 192.168.7.70 but not 192.168.7.1
Also noticed these messages in syslog.
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.314579] ------------[ cut here ]------------
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.323824] WARNING: CPU: 0 PID: 669 at backports-5.10.42-1/net/mac80211/airtime.c:457 0x83556180 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.346244] Modules linked in: pppoe ppp_async iptable_nat xt_state xt_nat xt_conntrack xt_REDIRECT xt_MASQUERADE xt_FLOWOFFLOAD xt_CT pppox ppp_generic nf_nat nf_flow_table_hw nf_flow_table nf_conntrack mt76x2e mt76x2_common mt76x02_lib mt7603e mt76 mac80211 ipt_REJECT cfg80211 xt_time xt_tcpudp xt_multiport xt_mark xt_mac xt_limit xt_comment xt_TCPMSS xt_LOG slhc nf_reject_ipv4 nf_log_ipv4 nf_defrag_ipv6 nf_defrag_ipv4 iptable_mangle iptable_filter ip_tables crc_ccitt compat nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 leds_gpio gpio_button_hotplug
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.453437] CPU: 0 PID: 669 Comm: mt76-tx phy1 Not tainted 5.4.143 #0
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.466242] Stack : 00000000 8005ab38 805d0000 80565780 00000000 00000000 00000000 00000000
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.482868] 00000000 00000000 00000000 00000000 00000000 00000001 8379bc60 2171a291
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.499442] 8379bcf8 00000000 00000000 00000000 00000038 804f1304 65746e69 2e352064
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.516000] 00000000 00000338 00000000 0006eb3d 00000000 8379bc40 00000000 83556180
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.532555] 00000009 00000014 00000004 00000002 00000000 802b9154 00000000 80700000
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.549170] ...
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.554037] Call Trace:
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.554051] [<8005ab38>] 0x8005ab38
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.565794] [<805d0000>] 0x805d0000
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.572820] [<804f1304>] 0x804f1304
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.579768] [<83556180>] 0x83556180 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.591502] [<802b9154>] 0x802b9154
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.598424] [<80009790>] 0x80009790
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.605335] [<80009798>] 0x80009798
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.612247] [<800236d0>] 0x800236d0
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.619171] [<83556180>] 0x83556180 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.630900] [<80023778>] 0x80023778
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.637836] [<83556180>] 0x83556180 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.649664] [<835036a0>] 0x835036a0 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.661431] [<83556368>] 0x83556368 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.673163] [<8033cbbc>] 0x8033cbbc
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.680169] [<83556448>] 0x83556448 [mac80211@99d79169+0x7c8d0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.691939] [<8033d644>] 0x8033d644
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.698883] [<83472a24>] 0x83472a24 [mt76x02_lib@2456de0e+0x9cc0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.710964] [<8348048c>] 0x8348048c [mt76@3f083819+0x9440]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.721839] [<834865ac>] 0x834865ac [mt76@3f083819+0x9440]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.732706] [<8004b2dc>] 0x8004b2dc
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.739660] [<8348048c>] 0x8348048c [mt76@3f083819+0x9440]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.750607] [<83474fe4>] 0x83474fe4 [mt76x02_lib@2456de0e+0x9cc0]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.762713] [<8348048c>] 0x8348048c [mt76@3f083819+0x9440]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.773600] [<83480520>] 0x83480520 [mt76@3f083819+0x9440]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.784551] [<804f2988>] 0x804f2988
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.791501] [<8003fdbc>] 0x8003fdbc
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.798419] [<8003fc84>] 0x8003fc84
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.805340] [<8003fc84>] 0x8003fc84
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.812258] [<800050b8>] 0x800050b8
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.819178]
Tue Oct 12 20:47:47 2021 kern.warn kernel: [16575.822129] ---[ end trace bc5c27c4e7bfae24 ]---
Hmm... not looking good.
I'm not having issues with this device, but I looked at the logs of my other OpenWRT routers and found the same messages on my xiaomi 4a gigabit router, also for phy1 (which should be the 5GHz radio). That router has the latest stable official build so it's not specific to this device and must be some mt76 WiFi driver issue.
I've seen some commits fixing possible loops on the mt76 master code, but until we get the next stable release of OpenWRT we won't be lucky, so please try the following to see if it mitigates the issue:
- ssh into the router (using putty or whatever ssh client you have at hand), with user root and your router password
- Enter the following command:
echo 0 > /sys/kernel/debug/ieee80211/phy1/airtime_flags
This will revert if you reboot the router. To make it persistent edit /etc/rc.local (can you use the vi editor?) and add it there before the exit 0 line. However, for now, I'd say to leave it only in memory to see if it gets more stable, before making it persistent on boot. Alternatively, try turning off the 5 GHz radio for a while just to see if you also experience the issue with the 2.4 GHz radio as well.
Thank you for the Support.
I have a
Model Joowin WR758AC
Architecture MediaTek MT7628AN ver:1 eco:2
Firmware Version OpenWrt 21.02.0 r16279-5cc0535800 / LuCI openwrt-21.02 branch git-21.295.67054-13df80d
Kernel Version 5.4.143
At the Wireless Overview shows:
MediaTek MT76x8 802.11bgn
why does it not supported the ´5.0 Gigahertz network?
Mit freundlichen Grüßen
Kind regards
derAuge

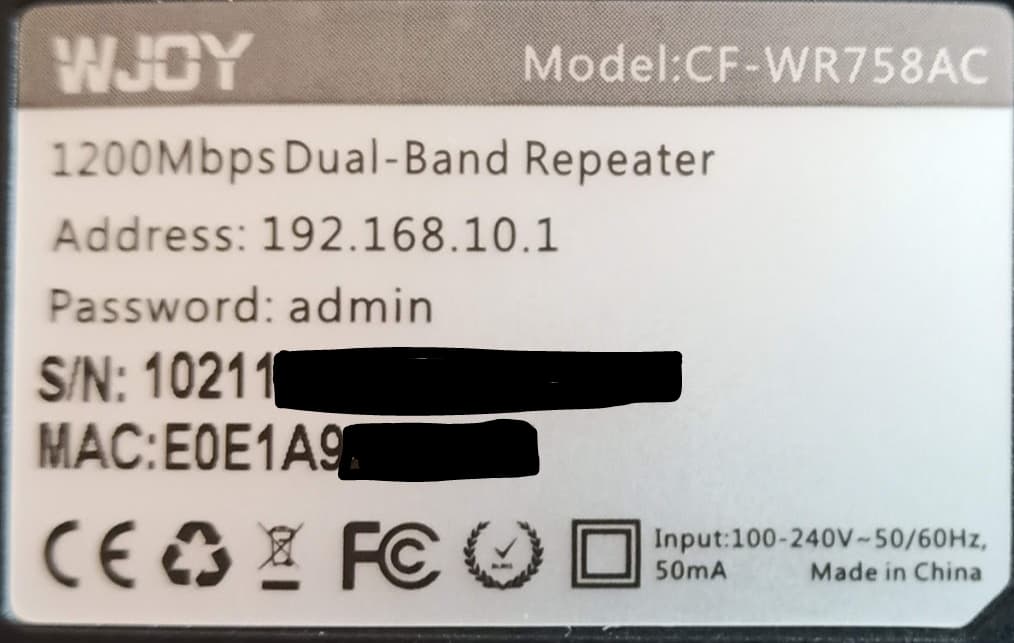

Hi. Most likely you have the V2 version. Can you check on the label in the back of the device?
Strange.
Please do the following:
- ssh into the device as root user
- Run the following:
opkg update
opkg install pciutils
If you have connectivity errors, please ensure you have configured your network settings correctly on the LAN interface (default gateway, DNS servers, and so on)
- Having installed pcutils successfully, please run the following commands and paste the output here:
lspci -v
lsmod
ip link
ifconfig -a
iw list
(if you prefer, can attach it in a text file or something, or put it in pastbin, so that it won't clutter the thread too much)
Best regards.
BusyBox v1.33.1 (2021-08-31 22:20:08 UTC) built-in shell (ash)
_______ ________ __
| |.-----.-----.-----.| | | |.----.| |_
| - || _ | -__| || | | || _|| _|
|_______|| __|_____|__|__||________||__| |____|
|__| W I R E L E S S F R E E D O M
-----------------------------------------------------
OpenWrt 21.02.0, r16279-5cc0535800
-----------------------------------------------------
root@WJoyOpenWrt:~# opkg update
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_core
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/base/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_base
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/base/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/luci/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_luci
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/luci/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_packages
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/routing/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_routing
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/routing/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/telephony/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_telephony
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/telephony/Packages.sig
Signature check passed.
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# opkg install pciutils
Installing pciutils (3.7.0-2) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/pciutils_3.7.0-2_mipsel_24kc.ipk
Installing zlib (1.2.11-3) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/base/zlib_1.2.11-3_mipsel_24kc.ipk
Installing libkmod (27-2) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/libkmod_27-2_mipsel_24kc.ipk
Installing libpci (3.7.0-2) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/libpci_3.7.0-2_mipsel_24kc.ipk
Installing pciids (0.350-1) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/pciids_0.350-1_mipsel_24kc.ipk
Configuring libpci.
Configuring pciids.
Configuring zlib.
Configuring libkmod.
Configuring pciutils.
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# lspci -v
00:00.0 PCI bridge: MEDIATEK Corp. Device 0801 (rev 01) (prog-if 00 [Normal decode])
Device tree node: /sys/firmware/devicetree/base/pcie@10140000/pcie@0,0
Flags: bus master, fast devsel, latency 0, IRQ 255
Memory at 20200000 (32-bit, non-prefetchable) [size=64K]
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: [disabled]
Memory behind bridge: [disabled]
Prefetchable memory behind bridge: 20000000-201fffff [size=2M]
Capabilities: [40] Power Management version 3
Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
Capabilities: [70] Express Root Port (Slot-), MSI 00
Capabilities: [100] Advanced Error Reporting
Capabilities: [140] Virtual Channel
lspci: Unable to load libkmod resources: error -12
01:00.0 Unclassified device [0002]: MEDIATEK Corp. Device 7663 (prog-if 80)
Subsystem: MEDIATEK Corp. Device 7663
Device tree node: /sys/firmware/devicetree/base/pcie@10140000/pcie@0,0/mt76@0,0
Flags: fast devsel
Memory at 20000000 (64-bit, prefetchable) [disabled] [size=1M]
Memory at 20100000 (64-bit, prefetchable) [disabled] [size=16K]
Memory at 20104000 (64-bit, prefetchable) [disabled] [size=4K]
Capabilities: [80] Express Endpoint, MSI 1f
Capabilities: [e0] MSI: Enable- Count=1/32 Maskable+ 64bit+
Capabilities: [f8] Power Management version 3
Capabilities: [100] Vendor Specific Information: ID=1556 Rev=1 Len=008 <?>
Capabilities: [110] L1 PM Substates
Capabilities: [200] Advanced Error Reporting
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# lspci -vn
00:00.0 0604: 14c3:0801 (rev 01) (prog-if 00 [Normal decode])
Device tree node: /sys/firmware/devicetree/base/pcie@10140000/pcie@0,0
Flags: bus master, fast devsel, latency 0, IRQ 255
Memory at 20200000 (32-bit, non-prefetchable) [size=64K]
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: [disabled]
Memory behind bridge: [disabled]
Prefetchable memory behind bridge: 20000000-201fffff [size=2M]
Capabilities: [40] Power Management version 3
Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
Capabilities: [70] Express Root Port (Slot-), MSI 00
Capabilities: [100] Advanced Error Reporting
Capabilities: [140] Virtual Channel
lspci: Unable to load libkmod resources: error -12
01:00.0 0002: 14c3:7663 (prog-if 80)
Subsystem: 14c3:7663
Device tree node: /sys/firmware/devicetree/base/pcie@10140000/pcie@0,0/mt76@0,0
Flags: fast devsel
Memory at 20000000 (64-bit, prefetchable) [disabled] [size=1M]
Memory at 20100000 (64-bit, prefetchable) [disabled] [size=16K]
Memory at 20104000 (64-bit, prefetchable) [disabled] [size=4K]
Capabilities: [80] Express Endpoint, MSI 1f
Capabilities: [e0] MSI: Enable- Count=1/32 Maskable+ 64bit+
Capabilities: [f8] Power Management version 3
Capabilities: [100] Vendor Specific Information: ID=1556 Rev=1 Len=008 <?>
Capabilities: [110] L1 PM Substates
Capabilities: [200] Advanced Error Reporting
root@WJoyOpenWrt:~# lsmod
cfg80211 275152 4 mt76x02_lib,mt7603e,mt76,mac80211
compat 1088 2 mac80211,cfg80211
crc_ccitt 1664 1 ppp_async
gpio_button_hotplug 6976 0
ip_tables 10784 4 iptable_nat,iptable_mangle,iptable_filter
ip6_tables 10624 24 ip6table_mangle,ip6table_filter
ip6t_REJECT 1216 2
ip6table_filter 896 1
ip6table_mangle 1312 1
ipt_REJECT 1152 2
iptable_filter 864 1
iptable_mangle 1024 1
iptable_nat 1056 1
leds_gpio 2976 0
mac80211 510160 4 mt76x2e,mt76x02_lib,mt7603e,mt76
mt76 37952 4 mt76x2e,mt76x2_common,mt76x02_lib,mt7603e
mt7603e 38016 0
mt76x02_lib 40128 2 mt76x2e,mt76x2_common
mt76x2_common 11392 1 mt76x2e
mt76x2e 10112 0
nf_conntrack 69136 8 xt_state,xt_nat,xt_conntrack,xt_REDIRECT,xt_MASQUERADE,xt_CT,nf_nat,nf_flow_table
nf_defrag_ipv4 1184 1 nf_conntrack
nf_defrag_ipv6 5328 1 nf_conntrack
nf_flow_table 14896 2 xt_FLOWOFFLOAD,nf_flow_table_hw
nf_flow_table_hw 2240 1
nf_log_common 2944 2 nf_log_ipv4,nf_log_ipv6
nf_log_ipv4 3584 0
nf_log_ipv6 4288 0
nf_nat 21744 4 iptable_nat,xt_nat,xt_REDIRECT,xt_MASQUERADE
nf_reject_ipv4 2240 1 ipt_REJECT
nf_reject_ipv6 2656 1 ip6t_REJECT
ppp_async 7072 0
ppp_generic 24080 3 pppoe,ppp_async,pppox
pppoe 8640 0
pppox 1264 1 pppoe
slhc 5248 1 ppp_generic
x_tables 15248 24 xt_state,xt_nat,xt_conntrack,xt_REDIRECT,xt_MASQUERADE,xt_FLOWOFFLOAD,xt_CT,ipt_REJECT,xt_time,xt_tcpudp,xt_multiport,xt_mark,xt_mac,xt_limit,xt_comment,xt_TCPMSS,xt_LOG,iptable_mangle,iptable_filter,ip_tables,ip6table_mangle,ip6table_filter,ip6_tables,ip6t_REJECT
xt_CT 2848 0
xt_FLOWOFFLOAD 3200 0
xt_LOG 736 0
xt_MASQUERADE 800 1
xt_REDIRECT 672 0
xt_TCPMSS 3136 4
xt_comment 480127
xt_conntrack 2400 14
xt_limit 1312 20
xt_mac 608 0
xt_mark 640 0
xt_multiport 1280 0
xt_nat 2400 0
xt_state 800 0
xt_tcpudp 1792 12
xt_time 1888 0
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# ip link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UNKNOWN qlen 1000
link/ether e0:e1:a9:2c:8c:b1 brd ff:ff:ff:ff:ff:ff
5: br-lan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
link/ether e0:e1:a9:2c:8c:b1 brd ff:ff:ff:ff:ff:ff
6: eth0.1@eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-lan state UP qlen 1000
link/ether e0:e1:a9:2c:8c:b1 brd ff:ff:ff:ff:ff:ff
7: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
link/ether e0:e1:a9:2c:8c:b3 brd ff:ff:ff:ff:ff:ff
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# ifconfig -a
br-lan Link encap:Ethernet HWaddr E0:E1:A9:2C:8C:B1
inet addr:192.168.28.111 Bcast:192.168.28.255 Mask:255.255.255.0
inet6 addr: fe80::e2e1:a9ff:fe2c:8cb1/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:1873942 errors:0 dropped:463919 overruns:0 frame:0
TX packets:3251388 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:168776765 (160.9 MiB) TX bytes:4467775796 (4.1 GiB)
eth0 Link encap:Ethernet HWaddr E0:E1:A9:2C:8C:B1
inet6 addr: fe80::e2e1:a9ff:fe2c:8cb1/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:1875690 errors:0 dropped:74 overruns:0 frame:0
TX packets:3283725 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:202661880 (193.2 MiB) TX bytes:187692356 (178.9 MiB)
Interrupt:5
eth0.1 Link encap:Ethernet HWaddr E0:E1:A9:2C:8C:B1
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:1874567 errors:0 dropped:624 overruns:0 frame:0
TX packets:3283704 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:168844627 (161.0 MiB) TX bytes:4469520860 (4.1 GiB)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:6768 errors:0 dropped:0 overruns:0 frame:0
TX packets:6768 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:624529 (609.8 KiB) TX bytes:624529 (609.8 KiB)
wlan0 Link encap:Ethernet HWaddr E0:E1:A9:2C:8C:B3
inet addr:192.168.8.111 Bcast:192.168.8.255 Mask:255.255.255.0
inet6 addr: fe80::e2e1:a9ff:fe2c:8cb3/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:3165488 errors:0 dropped:0 overruns:0 frame:0
TX packets:1112785 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:4392965576 (4.0 GiB) TX bytes:119300925 (113.7 MiB)
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# iw list
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 4
max scan IEs length: 2257 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* mesh point
* P2P-client
* P2P-GO
Band 1:
Capabilities: 0x1fe
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 3839 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
Frequencies:
* 2412 MHz [1] (20.0 dBm)
* 2417 MHz [2] (20.0 dBm)
* 2422 MHz [3] (20.0 dBm)
* 2427 MHz [4] (20.0 dBm)
* 2432 MHz [5] (20.0 dBm)
* 2437 MHz [6] (20.0 dBm)
* 2442 MHz [7] (20.0 dBm)
* 2447 MHz [8] (20.0 dBm)
* 2452 MHz [9] (20.0 dBm)
* 2457 MHz [10] (20.0 dBm)
* 2462 MHz [11] (20.0 dBm)
* 2467 MHz [12] (20.0 dBm) (no IR)
* 2472 MHz [13] (20.0 dBm)
* 2484 MHz [14] (20.0 dBm) (no IR)
valid interface combinations:
* #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 4,
total <= 4, #channels <= 1, STA/AP BI must match
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Supported extended features:
* [ RRM ]: RRM
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ SCAN_RANDOM_SN ]: use random sequence numbers in scans
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
As I suspected, you have V2 of the device since your 5GHz chip has the 14c3:7663 ID (mine has 14c3:7662). If we can make sure installing the following packages/drivers works fine on your device, then I can add a variant (and build a different image with those packages, and without unnecessary ones, for each variant) before submitting my patch to OpenWRT.
For now please try the following, it should install the appropriate packages on your device. If it works, I'll build later a proper image for V2:
opkg update
opkg install kmod-mt7615e kmod-mt7663-firmware-ap
and reboot.
(note: there is also another package kmod-mt7663-firmware-sta but what I've seen is that one is not necessary, and can even interfere with AP mode; please try it only with the ones I've said above, because if it works OK then I'll start working on V2 image build as soon as I have time)
Best regards.
It works
MediaTek MT76x8 802.11bgn
MediaTek MT7613BE 802.11nac
Thank you
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# opkg update
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_core
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/base/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_base
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/base/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/luci/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_luci
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/luci/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_packages
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/packages/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/routing/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_routing
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/routing/Packages.sig
Signature check passed.
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/telephony/Packages.gz
Updated list of available packages in /var/opkg-lists/openwrt_telephony
Downloading https://downloads.openwrt.org/releases/21.02.0/packages/mipsel_24kc/telephony/Packages.sig
Signature check passed.
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~# opkg install kmod-mt7615e kmod-mt7663-firmware-ap
Installing kmod-mt7615e (5.4.143+2021-06-06-22b69033-4) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/kmod-mt7615e_5.4.143%2b2021-06-06-22b69033-4_mipsel_24kc.ipk
Installing kmod-mt76-connac (5.4.143+2021-06-06-22b69033-4) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/kmod-mt76-connac_5.4.143%2b2021-06-06-22b69033-4_mipsel_24kc.ipk
Installing kmod-hwmon-core (5.4.143-1) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/kmod-hwmon-core_5.4.143-1_mipsel_24kc.ipk
Installing kmod-mt7615-common (5.4.143+2021-06-06-22b69033-4) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/kmod-mt7615-common_5.4.143%2b2021-06-06-22b69033-4_mipsel_24kc.ipk
Installing kmod-mt7663-firmware-ap (5.4.143+2021-06-06-22b69033-4) to root...
Downloading https://downloads.openwrt.org/releases/21.02.0/targets/ramips/mt76x8/packages/kmod-mt7663-firmware-ap_5.4.143%2b2021-06-06-22b69033-4_mipsel_24kc.ipk
Configuring kmod-mt76-connac.
Configuring kmod-hwmon-core.
Configuring kmod-mt7615-common.
Configuring kmod-mt7615e.
Configuring kmod-mt7663-firmware-ap.
root@WJoyOpenWrt:~#
root@WJoyOpenWrt:~#
Wonderful
I'm a bit busy for now but as soon as I can I'll add a variant so that people with the V2 can install a image with only the modules they need, and get more free space for other packages and other stuff they want.
2 Likes
Hi. Can you tell me the config file with the options for the mt7663 chipset (v2)?
I want to compile my own version for learning.
Thank you.
Hi. It's on the google drive, it's the config.buildinfo file. Just rename it .config and place it on your openwrt source directory.
But that config not included the options for the 7663 chipset, or yes? I've used it to compile and the firmware not find the 5ghz networks. Sorry for my bad english.
Thanks.
Hi. No, that build and config are for V1 only. You can make menuconfig and adapt.
However openwrt 21.02.1 is out. As soon as I have time I'll rework my patch to include the V2 variant and build updated images for both variants. Stay tuned.
A segunda, 1/11/2021, 21:22, yo via OpenWrt Forum <mail@forum.openwrt.org> escreveu:
Ok. I've change the options in menuconfig and finally my build it's ok. i disabled the " kmod-mt76x2"
option and enabled "kmod-mt7615e" and "kmod-mt7663-firmware-ap".
Thank you. I stay tuned.
2 Likes
@elmismo so you have V2 right? can you just run a ifconfig -a and verify if the MAC address on OpenWRT (for the ethernet and both wlan interfaces) is the same as in stock firmware? (It's correct for V1, but I don't know if they changed the offset on the factory partition for it on V2, I just want to ensure it's OK as it is on the upcoming patch)
Also, can you test the leds to see if they are working on V2? (again, they work on V1, I tested all GPIOs to find them on my V1 devices, and would like to ensure they are the same on V2)
Thanks.
