Probably to be able to flash back to stock firmware
Non serial flashing would be ideal if that's possible
I'm sorry for letting you guys wait. My personal life is at its worst ever.
I will put it up today i promise.
5 Likes
Flashing can wait. Please take your time.
Sorry guy's i have made mistake regarding ubootmod. It's still very possible, but i just haven't checked and tested it enough times to reduce the risks.
Also it's not my finest work, Because like i said i was actually looking for a less complicated way.
This one is for OpenWrt with stock layout. For ubootmod see Adding OpenWrt support for Zyxel EX5601-T0 - #815 by thehybrid1337
And the files
https://thehybrid1337.com/sshflash/
Please be cautious. I was very tired while making this so it might be that i have made a mistake somewhere. Let's hope not.
At some point i forgot i was even taking screenshots so sorry for the missing screenshots.
Also the whole editing zyfwinfo is not necessary i think.
Edit: made the links easier and fixed 3 mistakes regarding ubi/ubi2 , mtd5/mtd6
5 Likes
Thank you for the guide.
After obtaining root access on Odido firmware, will the following steps allow us to install ubootmod?
- Replace bl2 and fip partitions
insmod mtd-rw.ko i_want_a_brick=1
mtd write openwrt-23.05.5-mediatek-filogic-zyxel_ex5601-t0-ubootmod-preloader.bin bl2
mtd write openwrt-23.05.5-mediatek-filogic-zyxel_ex5601-t0-ubootmod-bl31-uboot.fip fip
-
Reboot the router
-
Continue with Option A (TFTP) in @frollic's guide
The fact that managing services is disabled by hiding them from the GUI at runtime is wild...
Yes i had also thought about it, and it worked the 1 time that i tried it.
But i had no time to further check the mtd partitions addresses and offsets etc, i dont know if theyre the same for those partitions with the stock layout and the ubootmod layout.
Because if i remember correctly, the stock fip is a larger file than ubootmod fip.
It seemed to risky to post it without checking 10 times first, because if it goes wrong, you will need serial console and im trying to prevent it.
1 Like
Still a pretty low price to pay, IMHO.
1 Like
I checked, and it works.
After obtaining root SSH access on Odido firmware, only 2 commands are necessary before rebooting and serving openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb over TFTP.
mtd write openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-preloader.bin /dev/mtd0
mtd write openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-bl31-uboot.fip /dev/mtd4
5 Likes
Hey guys, does the stable openwrt for the EX5601 support 5G at 160MHz? I have two Zyxels (old Wind3) one on 23.05 and the other on 24.10 and on both, when I select 160MHz for the 5G WiFi, it stops working regardless of the mode (AX or AC) or the channel I choose. Instead, 80MHz works fine. Since the MT7986 supports 160MHz by specs, is there some setting I need to enable or does it just not work in openwrt?
160MHz works fine for me on T-56. Could it be that DFS is kicking in for one of the channels in your setup?
2 Likes
You are correct. It was the DFS. Thanks
Thanks for testing this.
I'll edit my guide to include this.
2 Likes
Flashing OpenWrt ubootmod on Zyxel EX5601-t1 (T-56 Odido) (NO SERIAL)
It's relatively safe and easy to flash OpenWrt if you follow the instructions.
Please check your current firmware version and make sure not to connect the WAN cable to prevent it from updating.
All firmware versions are possible to be flashed except for:
- V5.70(ACEA.0)T56C_b10_0122
- V5.70(ACEA.0)T56C_b10_0410(rumored new fw)
This list will grow in the future as Odido will be rolling out new firmware updates to prevent us from being able to flash OpenWrt.
My own device running that firmware got bricked, but it was my fault. It might still be possible to flash OpenWrt on it, but i strongly don't recommend it as you won't be able to recover if it gets bricked.
On all older versions you can recover over the Serial port using mtk_uartboot if it gets bricked.
If you have any questions please don't hesitate to ask them here or you can also send me a pm. They will be answered asap.
This procedure does not include backing up the stock Odido firmware.
This guide below is how you can return to Odido firmware, it also includes all the required files, so you don't have to worry about not making a backup.
DOWNLOAD FILES :
The files are available on the OpenWrt website.
You will need the ubootmod files for EX5601-T0 (except zyxel_ex5601-t0-ubootmod-initramfs-factory.ubi, as it is not needed).
I will also provide them all with a direct download link below. (The download links are for release 24.10.0)
zyxel_ex5601-t0-ubootmod-squashfs-sysupgrade.itb
zyxel_ex5601-t0-ubootmod-preloader.bin
zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb
zyxel_ex5601-t0-ubootmod-bl31-uboot.fip
kmod-mtd-rw_6.6.73.2021.02.28~e8776739-r1_aarch64_cortex-a53.ipk
Important before flashing
Make sure you're connected to LAN2 (1 Gbps LAN port)
You will need to set up a TFTP-server and adjust your network adapter to have a static IPv4-address instead of DHCP
You will need to rename openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb to exclude the release version.
IPv4-address 192.168.1.254
Subnet mask 255.255.255.0
Turn off Windows Firewall and make sure the file is renamed to "openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb" and is available in the TFTP folder.
In my case its "C:\OpenTFTPServer\openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb"
Turn on your router, connect to its LAN2 port, don't connect WAN.
http://192.168.1.1
Login
Login with username :
supervisor
Default password for supervisor is :
:Uo1=8mR~`f.t?;MVsfk&e;u!L|;'4
If the password is incorrect, you first have to factory reset your router. You can do this by logging in as admin or holding reset button, don't connect it to WAN

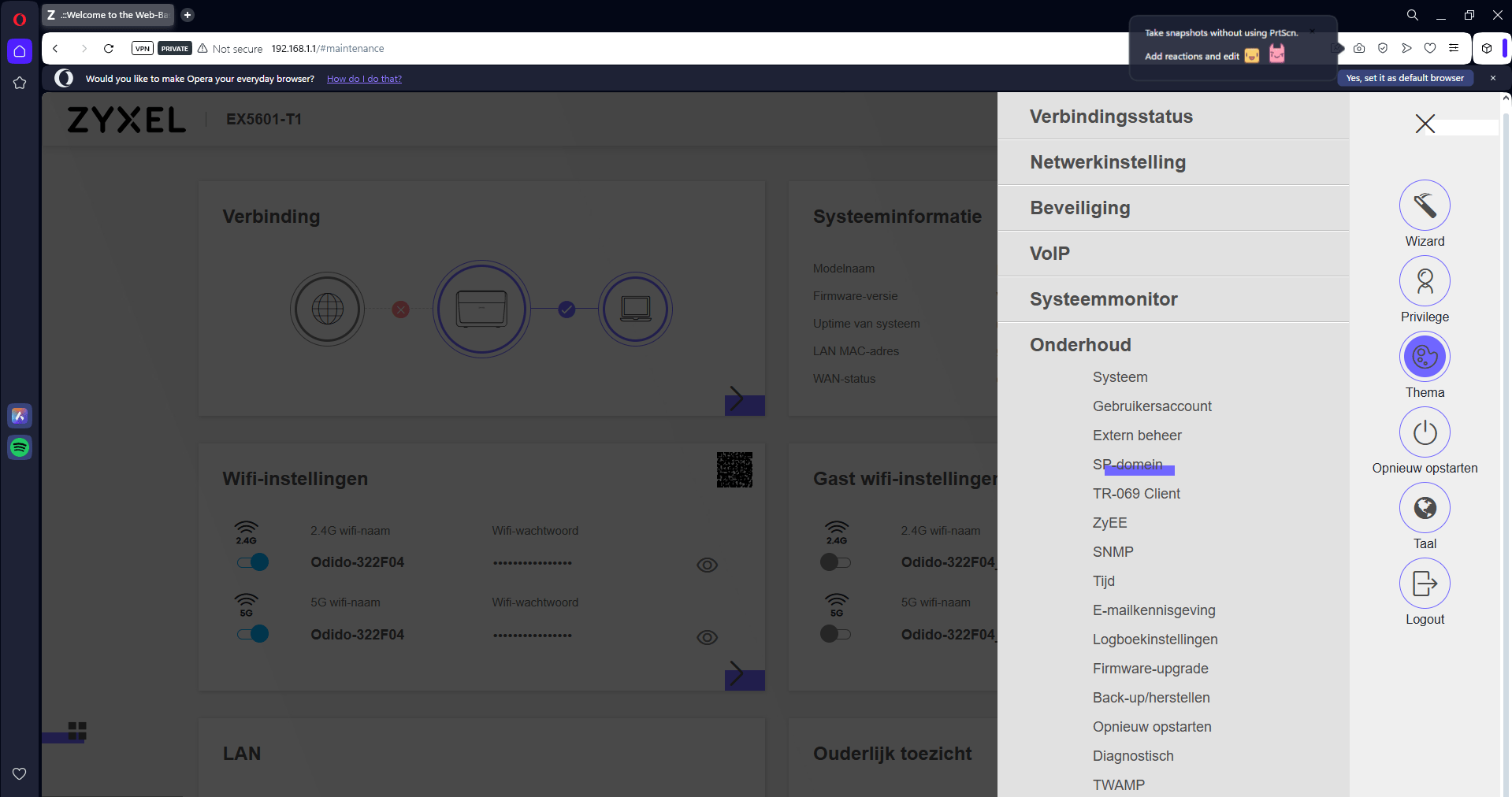

Once you have logged in head over to Maintenance and SP Domain
SP Domain
Check everything and apply
In the 2nd tab replace the ip to 192.168.1.0/24
Remote Management
Open the Maintenance tab in the menu and click on Remote Management

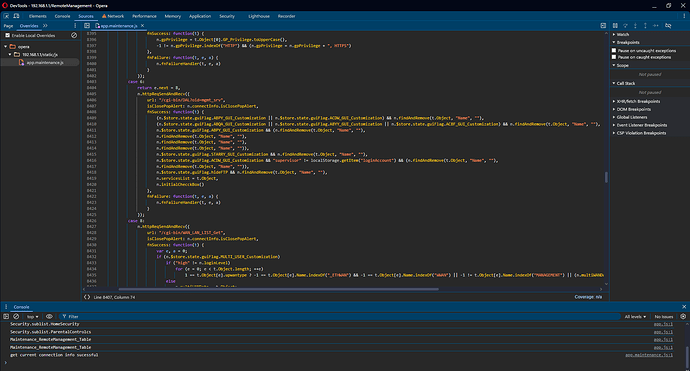

Click on F12 to open DevTools or right click with mouse anywhere on page and hit inspect element.
Open the "Sources" tab and on the left side find app.maintenance.js, right click on it and select override content -
(top > 192.168.1.1 > static > js > app.maintenance.js) is the tree
Use CTRL + F to Search for FindAndRemove
At the 1st search result you will find
fnSuccess: function(t)
(n.$store.state.guiFlag.ABPY_GUI_Customization || n.$store.state.guiFlag.ACDW_GUI_Customization) && n.findAndRemove(t.Object, "Name", "HTTP"),
(n.$store.state.guiFlag.ABQA_GUI_Customization || n.$store.state.guiFlag.ABYY_GUI_Customization || n.$store.state.guiFlag.ACBF_GUI_Customization) && n.findAndRemove(t.Object, "Name", "SNMP"),
n.$store.state.guiFlag.ABPY_GUI_Customization && (n.findAndRemove(t.Object, "Name", "FTP"),
n.findAndRemove(t.Object, "Name", "TELNET"),
n.findAndRemove(t.Object, "Name", "SSH"),
n.findAndRemove(t.Object, "Name", "SNMP")),
n.$store.state.guiFlag.STARRY_GUI_Customization && n.findAndRemove(t.Object, "Name", "SSH"),
n.$store.state.guiFlag.ACDW_GUI_Customization && "supervisor" != localStorage.getItem("loginAccount") && (n.findAndRemove(t.Object, "Name", "TELNET"),
n.findAndRemove(t.Object, "Name", "SSH")),
n.$store.state.guiFlag.hideFTP && n.findAndRemove(t.Object, "Name", "FTP"),
n.servicesList = t.Object,
n.initialChecckBox()
},
So basically just remove the names of the protocols here, and leave it blank. For example "HTTP" will be ""
After you have changed it for all of them. Hit CTRL + S to save and you should see app.maintenance.js with a purple circle in the icon and the tab will be Overrides instead of Page.
Now head back to the router page and refresh with F5.

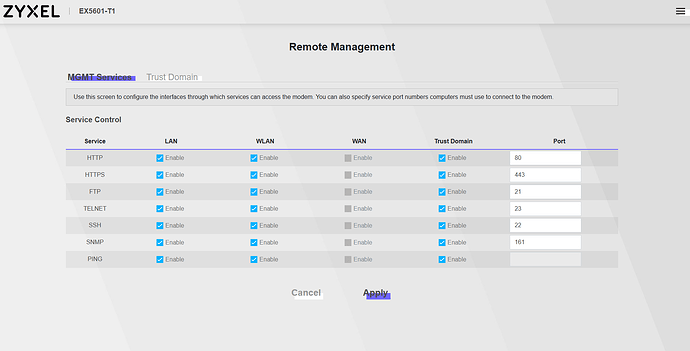

Enable everything here for LAN, WLAN and Trust Domain
Open the Trust Domain tab and add 192.168.1.0/24 as a Trust Domain
SSH

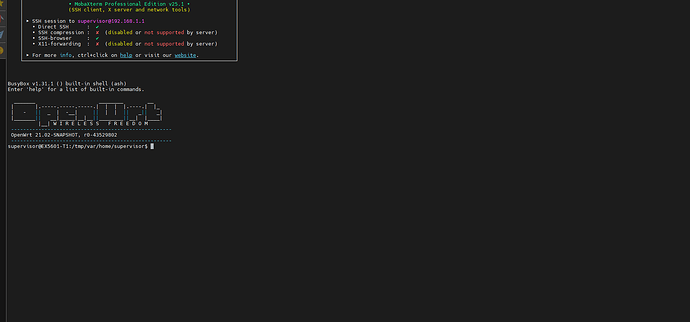

Connect to 192.168.1.1 by ssh with username supervisor
Accept the certficiate and copy and paste the password
:Uo1=8mR~`f.t?;MVsfk&e;u!L|;'4
Enter the command
sys atsh
Here you will have to copy your First MAC Address and enter it in the next command followed by a 0 and a 1.
sys atwz (mac) 0 1
now for the root password enter the following command (the root password is called supervisor password)
sys atck
SSH root@192.168.1.1 and flashing FIP
Login as root with the password you received from before.
Now we have to overwrite the current FIP with the ubootmod version.
The FIP will have the correct details for the partition layout and will forever try to TFTP boot "openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb" after restarting.
now transfer following file to /tmp folder. (I use WinSCP and file protocol SCP)
"openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-bl31-uboot.fip"
now enter the following command to flash the new FIP .
mtd write /tmp/openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-bl31-uboot.fip FIP
Now you can reboot the router. Make sure your TFTP-server is on.
Router booting in recovery mode and flashing firmware
Username: root
Password: (blank)
Connect with SSH and transfer all downloaded files to /tmp folder.
kmod-mtd-rw_6.6.73.2021.02.28~e8776739-r1_aarch64_cortex-a53.ipk
openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-bl31-uboot.fip
openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb
openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-preloader.bin
openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-squashfs-sysupgrade.itb
install and load the kmod-mtd-rw
opkg install /tmp/kmod-mtd-rw_6.6.73.2021.02.28~e8776739-r1_aarch64_cortex-a53.ipk
insmod mtd-rw i_want_a_brick=1
Flash the firmware
ubidetach -p /dev/mtd5; ubiformat /dev/mtd5 -y; ubiattach -p /dev/mtd5
ubimkvol /dev/ubi0 -n 0 -N ubootenv -s 128KiB
ubimkvol /dev/ubi0 -n 1 -N ubootenv2 -s 128KiB
ubimkvol /dev/ubi0 -n 2 -N recovery -s 10MiB
ubiupdatevol /dev/ubi0_2 /tmp/openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb
mtd write /tmp/openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-preloader.bin bl2
mtd write /tmp/openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-bl31-uboot.fip fip
sysupgrade -n /tmp/openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-squashfs-sysupgrade.itb
Your Router wil automatically restart using 192.168.1.1 and the flashing procedure will be done.
You can also remove the static IPv4 settings for your network adapter and select for DHCP (Obtain an IP Address automatically), otherwise you will have problems connecting to the Internet.
22 Likes
nice!
link added to the wiki page
1 Like
I have an new coming will try for sure. (www.marktplaats.nl for 10 euro ex shipping)
I think it might also work without the supervisor account.
I think whille logged in as admin in the ZySH prompt it may be possible to run command : zycli sys atsh, atwz, atck. Though i'm not sure.
1 Like
@thehybrid1337 , you are the man!
I just went through the process (Odido stock to OpenWrt ubootmod w/o serial access), worked like a charm.
I've still got 2 more devices on Odido stock FW and am happy to test further ideas/approaches.
Thank you for all your efforts and sharing the results!
2 Likes
Hi I have a couple of questions regarding the naming of the initramfs-recovery.itb file. In the beginning you state:
Should it be "zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb" or "openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb" (as in the file path). Perhaps it doesn't matter?
Also further down:
the filename used in copying and flashing seems to be "openwrt-24.10.0-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-recovery.itb", with the version number. Am I misunderstanding something?
