Good day! I have an openwrt dumb access point with a running wifi guest network! I have configured the guest wifi according to the user's guide:
https://openwrt.org/docs/guide-user/network/wifi/guestwifi/guestwifi_dumbap
I was wonderig if I can add one of the lan ports to that guest network
This is generally quite easy to do, but the specific method depends on you device and configuration. Let’s take a look and then we can guide you through the process.
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
Remember to redact passwords, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.68",
"hostname": "OpenWrt",
"system": "MediaTek MT7620A ver:2 eco:6",
"model": "TP-Link EC220-G5 v2",
"board_name": "tplink,ec220-g5-v2",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"revision": "r28476-2456a2fd7f",
"target": "ramips/mt7620",
"description": "OpenWrt SNAPSHOT r28476-2456a2fd7f",
"builddate": "1735781424"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd5e:fdd0:bcbe::/48'
config device
option name 'br-lan'
option type 'bridge'
list ports 'eth0.1'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.2'
option netmask '255.255.255.0'
option ip6assign '60'
option gateway '192.168.1.1'
list dns '192.168.1.1'
config device
option name 'eth0.2'
option macaddr 'xxxxxxxxxxx'
config switch
option name 'switch0'
option reset '1'
option enable_vlan '0'
config switch
option name 'switch1'
option reset '1'
option enable_vlan '1'
config switch_vlan
option device 'switch1'
option vlan '1'
option ports '0 1 2 4 7t'
config switch_vlan
option device 'switch1'
option vlan '2'
option ports '3 7t'
config device
option type 'bridge'
option name 'br_guest'
option bridge_empty '1'
config interface 'guest'
option proto 'static'
option device 'br_guest'
option ipaddr '192.168.2.1'
option netmask '255.255.255.0'
The wan port has been removed, but vlan 2 still exists.
Just add eth0.2 to the guest bridge device and you should be able to use the blue colored port as a wired port for the guest network.
config device
option type 'bridge'
option name 'br_guest'
list ports 'eth0.2'
If you need more ports, you can move some from vlan 1 to vlan 2, e.g.
config switch_vlan
option device 'switch1'
option vlan '1'
option ports '0 1 4 7t'
config switch_vlan
option device 'switch1'
option vlan '2'
option ports '2 3 7t'
doesn't eth0.2 represent second LAN port? If that's the case, then I don't want to touch that port because it's already in use, should I go with eth0.3 instead?
No. This notation indicates sub-interface with a vlan.
I have added this, but all the ports still connect to the main network, the router has only 3 ports, 2 of them are already in use LAN 3 is the only one available.
Run swconfig dev switch0 show to find out which switch number corresponds to the physical port you want to use. Check the switch status both with and without a live cable plugged in to the port to see which one changes.
Then add that port to switch-vlan number 2. eth0.2 means vlan 2 going into the switch, which physical port(s) it is depends on the switch vlan configuration.
Why is enable_vlan set to 0?
I count at least 7 ports....
And is port 7 or 0 your CPU? Every single VLAN needs to be tagged on the (internal) CPU(-Port).

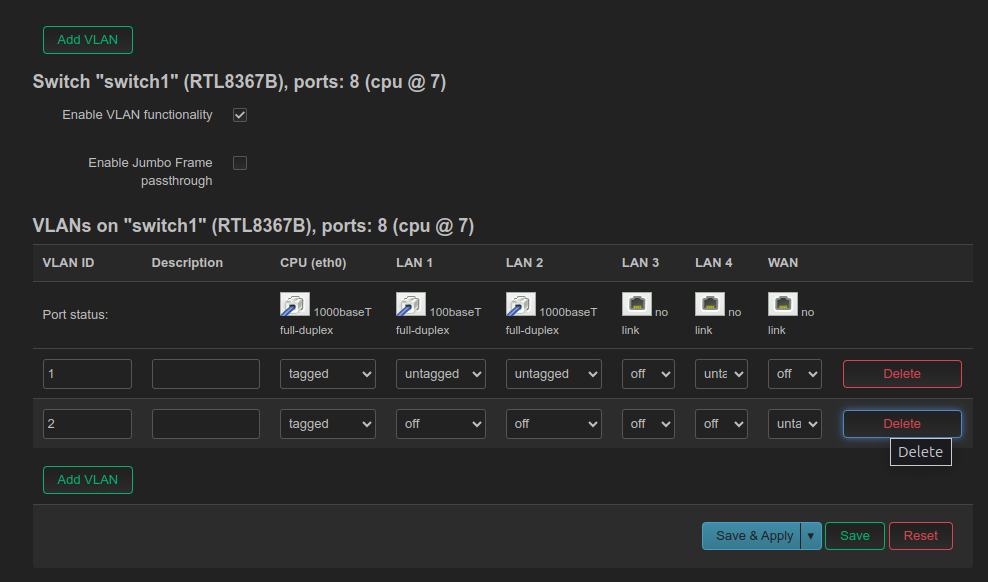

weirdo lol, I'm using snapshots version, I guess, it's not built correctly, I also see 4 lan ports in switch page
it's port 7
Then you have to ensure its set to tagged on every used VLAN!
So if you plug something in to the unused third port on the back, one of those icons should change from "empty socket" to "cable plugged in".

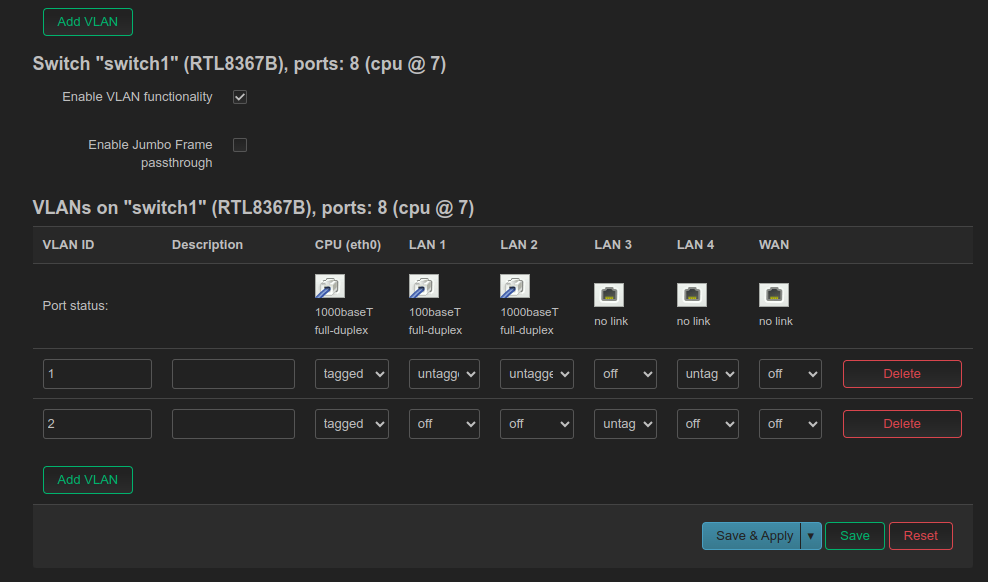

this is the solution! thank you so much, I only had to disable the traffic rule that was blocking the guest network from using LAN ports and I also switched off the wan port on eth0.2, shortly here is how the switch looks now:
