the problem is that ports 1 to 3 arent working and the utility cannot get a response from the router.
So I see UART as being the only way.
So heres whats going on. I had a snap shot loaded on the router but I had to power cycle it. now only the power light and the wan light stay on but there is no way to get inside the router without using UART. or serial.
I have tried using the "rescue mode" but only lan ports 3 to 8 work. the blue port is not working no matter what I do.
I am able to get into the routers command line via serial console command but at this point, I dont know what im doing exactly and could use some assistance.
I would like to think that there is a command to clear the nvram and hope for the best but again, not sure.
EDIT: it appears I can reach the OpenWRT terminal inside the serial console...
EDIT2: this is...frusterating. command "firstboot" and then "reset" did not fix the nvram thing. and im starting to think that I basically just wasted this router. like its FUBAR.
would greatly appreciate it if anyone here can help. I will upload boot log of this router later when I can.
Maybe it's missing the Luci package?
Part 1
=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2024.09.12 23:09:44 =~=~=~=~=~=~=~=~=~=~=~=
Format: Log Type - Time(microsec) - Message - Optional Info
Log Type: B - Since Boot(Power On Reset), D - Delta, S - Statistic
S - QC_IMAGE_VERSION_STRING=BOOT.BF.3.3.1-00158
S - IMAGE_VARIANT_STRING=HAACANAZA
S - OEM_IMAGE_VERSION_STRING=CRM
S - Boot Config, 0x000002e5
B - 201 - PBL, Start
B - 2736 - bootable_media_detect_entry, Start
B - 3444 - bootable_media_detect_success, Start
B - 3448 - elf_loader_entry, Start
B - 6115 - auth_hash_seg_entry, Start
B - 6358 - auth_hash_seg_exit, Start
B - 68380 - elf_segs_hash_verify_entry, Start
B - 131223 - PBL, End
B - 142130 - SBL1, Start
B - 194041 - GCC [RstStat:0x10, RstDbg:0x600000] WDog Stat : 0x4
B - 200507 - pm_device_init, Start
B - 321348 - PM_SET_VAL:Skip
D - 120383 - pm_device_init, Delta
B - 323757 - pm_driver_init, Start
D - 5368 - pm_driver_init, Delta
B - 330132 - clock_init, Start
D - 2135 - clock_init, Delta
B - 334066 - boot_flash_init, Start
D - 8631 - boot_flash_init, Delta
B - 346480 - boot_config_data_table_init, Start
D - 3080 - boot_config_data_table_init, Delta - (575 Bytes)
B - 353952 - Boot Setting : 0x00000618
B - 357887 - CDT version:2,Platform ID:8,Major ID:1,Minor ID:0,Subtype:0
B - 364810 - sbl1_ddr_set_params, Start
B - 368623 - CPR configuration: 0x30c
B - 371978 - cpr_init, Start
B - 374845 - Rail:0 Mode: 5 Voltage: 808000
B - 379969 - CL CPR settled at 760000mV
B - 382897 - Rail:1 Mode: 5 Voltage: 880000
B - 387075 - Rail:1 Mode: 7 Voltage: 888000
D - 16531 - cpr_init, Delta
B - 393846 - Pre_DDR_clock_init, Start
B - 397964 - Pre_DDR_clock_init, End
B - 401258 - DDR Type : PCDDR3
B - 406961 - do ddr sanity test, Start
D - 1067 - do ddr sanity test, Delta
B - 411811 - DDR: Start of HAL DDR Boot Training
B - 416477 - DDR: End of HAL DDR Boot Training
B - 422242 - DDR: Checksum to be stored on flash is -1191405122
B - 432673 - Image Load, Start
D - 224297 - QSEE Image Loaded, Delta - (1376448 Bytes)
B - 657031 - Image Load, Start
D - 30 - SEC Image Loaded, Delta - (0 Bytes)
B - 664717 - Image Load, Start
D - 10705 - DEVCFG Image Loaded, Delta - (26008 Bytes)
B - 675514 - Image Load, Start
D - 22051 - RPM Image Loaded, Delta - (86584 Bytes)
B - 697657 - Image Load, Start
D - 119255 - APPSBL Image Loaded, Delta - (740440 Bytes)
B - 817034 - QSEE Execution, Start
D - 61 - QSEE Execution, Delta
B - 822859 - USB D+ check, Start
D - 0 - USB D+ check, Delta
B - 829234 - SBL1, End
D - 689422 - SBL1, Delta
S - Flash Throughput, 6786 KB/s (2230055 Bytes, 328599 us)
S - DDR Frequency, 466 MHz
S - Core 0 Frequency, 1651 MHz
U-Boot 2016.01 (Jun 03 2020 - 20:30:04 +0800)
RT-AX89U bootloader version: 2.2.2.1
DRAM: smem ram ptable found: ver: 1 len: 4
ASUS RT-AX89U gpio init : buttons
1 GiB
NAND: Could not find nand_gpio in dts, using defaults
ONFI device found
ID = 1590aaef
Vendor = ef
Device = aa
SF: Unsupported flash IDs: manuf ff, jedec ffff, ext_jedec ffff
ipq_spi: SPI Flash not found (bus/cs/speed/mode) = (0/0/48000000/0)
256 MiB
MMC:
*** Warning - bad CRC, using default environment
In: serial@78B3000
Out: serial@78B3000
Err: serial@78B3000
Check bootloader area ...
machid: 8010000
Net: MAC0 addr:0:aa:bb:cc:dd:e0
PORT0/5/6_PAD_CTRL 0x05080000/01000000/00000080
PORT0/5/6_STATUS 0x0000007e/00001ffe/00000230
8075 PHY ID1: 0x4d
8075 PHY ID2: 0xd0b1
switch_mac_mode: 0x5/ff/2
EDMA ver 1 hw init
Num rings - TxDesc:1 (0-0) TxCmpl:1 (7-7)
RxDesc:1 (15-15) RxFill:1 (7-7)
ipq807x_edma_alloc_rings: successfull
ipq807x_edma_setup_ring_resources: successfull
ipq807x_edma_configure_rings: successfull
ipq807x_edma_hw_init: successfull
eth0
ubi0: attaching mtd1
qpic_nand_read_oob: correctable error @ page 0x880
ubi0: scanning is finished
ubi0: attached mtd1 (name "mtd=2", size 252 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 2016, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 6, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 20/12, WL threshold: 4096, image sequence number: 777439194
ubi0: available PEBs: 0, total reserved PEBs: 2016, PEBs reserved for bad PEB handling: 40
UBI: vol_id reserved_pebs alignment data_pad vol_type usable_leb_size used_ebs used_bytes last_eb_bytes corrupted upd_marker name_len name
UBI: 0 3 1 0 dynamic 1f000 3 5d000 1f000 0 0 5 nvram
UBI: 1 3 1 0 dynamic 1f000 3 5d000 1f000 0 0 7 Factory
UBI: 2 3 1 0 dynamic 1f000 3 5d000 1f000 0 0 8 Factory2
UBI: 3 2c 1 0 dynamic 1f000 2c 554000 1f000 0 0 5 linux
UBI: 4 38 1 0 dynamic 1f000 38 6c8000 1f000 0 0 5 jffs2
UBI: 5 747 1 0 dynamic 1f000 747 e199000 1f000 0 0 b rootfs_data
UBI: 7fffefff 2 1 0 dynamic 1f000 2 3e000 2 0 0 d layout volume
UBI volume [linux] size 554000 smaller than 6406000!
Read 5d000 bytes from volume Factory offset 0 to 4a08270c
EEPROM set 0: OK (version 214)
Read 5d000 bytes from volume Factory2 offset 0 to 4a08270c
EEPROM set 1: OK (version 214)
Read 5d000 bytes from volume Factory offset 0 to 4a0e2ba0
Select EEPROM set 0 at offset 0x0.
Please choose the operation:
1: Load System code to SDRAM via TFTP.
2: Load System code then write to Flash via TFTP.
3: Boot System code via Flash (default).
4: Entr boot command line interface.
7: Load Boot Loader code then write to Flash via Serial.
9: Load Boot Loader code then write to Flash via TFTP.
1 0
3: Boot System code via Flash (default).
Part 2
RT-AX89U bootloader version: 2.2.2.1
MAC Address: F0:2F:74:C5:B5:68
Read 40 bytes from volume linux offset 0 to 4b000000
Read 536a49 bytes from volume linux offset 40 to 4b000040
## Booting kernel from Legacy Image at 4b000000 ...
Image Name: ARM64 OpenWrt Linux-6.6.48
Image Type: AArch64 Linux Multi-File Image (gzip compressed)
Data Size: 5466697 Bytes = 5.2 MiB
Load Address: 41000000
Entry Point: 41000000
Contents:
Image 0: 5416383 Bytes = 5.2 MiB
Image 1: 32 Bytes = 32 Bytes
Image 2: 50265 Bytes = 49.1 KiB
Verifying Checksum ... OK
CRC check good on phy fw file (0xDED4)
PHYFW:Loading IRAM...........done.
PHYFW:Loading DRAM..............done.
phy fw image load good CRC-16 matches (0x85F7)
AQR PHY ID1: 0x31c3
AQR PHY ID2: 0x1c42
## Booting kernel from Legacy Image at 4b000000 ...
Image Name: ARM64 OpenWrt Linux-6.6.48
Image Type: AArch64 Linux Multi-File Image (gzip compressed)
Data Size: 5466697 Bytes = 5.2 MiB
Load Address: 41000000
Entry Point: 41000000
Contents:
Image 0: 5416383 Bytes = 5.2 MiB
Image 1: 32 Bytes = 32 Bytes
Image 2: 50265 Bytes = 49.1 KiB
## Loading init Ramdisk from multi component Legacy Image at 4b000000 ...
## Flattened Device Tree from multi component Image at 4B000000
Booting using the fdt at 0x4b52a630
Uncompressing Multi-File Image ... OK
Loading Ramdisk to 4a0de000, end 4a0de020 ... OK
Loading Device Tree to 4a0ce000, end 4a0dd458 ... OK
Using machid 0x8010000 from environment
Starting kernel ...
Jumping to AARCH64 kernel via monitor
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 6.6.48 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 r27290-64dae1052b) 13.3.0, GNU ld (GNU Binutils) 2.42) #0 SMP Mon Sep 2 11:27:47 2024
[ 0.000000] Machine model: Asus RT-AX89X
[ 0.000000] OF: reserved mem: 0x0000000040000000..0x0000000040ffffff (16384 KiB) nomap non-reusable nss@40000000
[ 0.000000] OF: reserved mem: 0x000000004a400000..0x000000004a5fffff (2048 KiB) nomap non-reusable tzapp@4a400000
[ 0.000000] OF: reserved mem: 0x000000004a600000..0x000000004a9fffff (4096 KiB) nomap non-reusable bootloader@4a600000
[ 0.000000] OF: reserved mem: 0x000000004aa00000..0x000000004aafffff (1024 KiB) nomap non-reusable sbl@4aa00000
[ 0.000000] OF: reserved mem: 0x000000004ab00000..0x000000004abfffff (1024 KiB) nomap non-reusable smem@4ab00000
[ 0.000000] OF: reserved mem: 0x000000004ac00000..0x000000004affffff (4096 KiB) nomap non-reusable memory@4ac00000
[ 0.000000] OF: reserved mem: 0x000000004b000000..0x0000000050efffff (97280 KiB) nomap non-reusable wcnss@4b000000
[ 0.000000] OF: reserved mem: 0x0000000050f00000..0x0000000050ffffff (1024 KiB) nomap non-reusable q6_etr_dump@50f00000
[ 0.000000] OF: reserved mem: 0x0000000051000000..0x00000000510fffff (1024 KiB) nomap non-reusable m3_dump@51000000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x000000007fffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000040ffffff]
[ 0.000000] node 0: [mem 0x0000000041000000-0x000000004a3fffff]
[ 0.000000] node 0: [mem 0x000000004a400000-0x00000000510fffff]
[ 0.000000] node 0: [mem 0x0000000051100000-0x000000007fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000007fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 18 pages/cpu s35752 r8192 d29784 u73728
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 rootfstype=squashfs root=/dev/mtdblock4 ubi.block=0,jffs2 root=/dev/ubiblock0_4
[ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 258048
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 1MB
[ 0.000000] software IO TLB: area num 4.
[ 0.000000] software IO TLB: mapped [mem 0x000000007eb00000-0x000000007ec00000] (1MB)
[ 0.000000] Memory: 885220K/1048576K available (8512K kernel code, 898K rwdata, 2556K rodata, 1536K init, 290K bss, 163356K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479]
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 19.20MHz (virt/virt).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns
[ 0.000001] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns
[ 0.000134] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.40 BogoMIPS (lpj=192000)
[ 0.000148] pid_max: default: 32768 minimum: 301
[ 0.005288] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.005303] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.009668] RCU Tasks Trace: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1.
[ 0.009895] rcu: Hierarchical SRCU implementation.
[ 0.009899] rcu: Max phase no-delay instances is 1000.
[ 0.010849] smp: Bringing up secondary CPUs ...
[ 0.011518] Detected VIPT I-cache on CPU1
[ 0.011622] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.012301] Detected VIPT I-cache on CPU2
[ 0.012372] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[ 0.013026] Detected VIPT I-cache on CPU3
[ 0.013092] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[ 0.013161] smp: Brought up 1 node, 4 CPUs
[ 0.013169] SMP: Total of 4 processors activated.
[ 0.013175] CPU features: detected: 32-bit EL0 Support
[ 0.013180] CPU features: detected: CRC32 instructions
[ 0.013247] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.013254] CPU: All CPU(s) started at EL1
[ 0.013257] alternatives: applying system-wide alternatives
[ 0.025110] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.025137] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.026918] pinctrl core: initialized pinctrl subsystem
[ 0.029076] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.029668] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[ 0.029711] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.029745] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.030205] thermal_sys: Registered thermal governor 'step_wise'
[ 0.030263] cpuidle: using governor menu
[ 0.030477] ASID allocator initialised with 65536 entries
[ 0.087072] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4
[ 0.090682] Modules: 29280 pages in range for non-PLT usage
[ 0.090691] Modules: 520800 pages in range for PLT usage
[ 0.094078] SCSI subsystem initialized
[ 0.094327] usbcore: registered new interface driver usbfs
[ 0.094364] usbcore: registered new interface driver hub
[ 0.094429] usbcore: registered new device driver usb
[ 0.094940] qcom_scm: convention: smc arm 64
[ 0.096757] clocksource: Switched to clocksource arch_sys_counter
[ 0.100802] NET: Registered PF_INET protocol family
[ 0.100966] IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 0.104058] tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 8192 bytes, linear)
[ 0.104081] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.104097] TCP established hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.104182] TCP bind hash table entries: 8192 (order: 6, 262144 bytes, linear)
[ 0.104453] TCP: Hash tables configured (established 8192 bind 8192)
[ 0.104558] UDP hash table entries: 512 (order: 2, 16384 bytes, linear)
[ 0.104609] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes, linear)
[ 0.105176] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.105218] PCI: CLS 0 bytes, default 64
[ 0.105442] Unpacking initramfs...
[ 0.106880] workingset: timestamp_bits=46 max_order=18 bucket_order=0
[ 0.107723] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.107730] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.111709] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248)
[ 0.114536] qcom-qmp-usb-phy 58000.phy: supply vdda-phy not found, using dummy regulator
[ 0.114700] qcom-qmp-usb-phy 58000.phy: supply vdda-pll not found, using dummy regulator
[ 0.116200] qcom-qmp-usb-phy 78000.phy: supply vdda-phy not found, using dummy regulator
[ 0.116337] qcom-qmp-usb-phy 78000.phy: supply vdda-pll not found, using dummy regulator
[ 0.118151] qcom-qusb2-phy 59000.phy: supply vdd not found, using dummy regulator
[ 0.118331] qcom-qusb2-phy 59000.phy: supply vdda-pll not found, using dummy regulator
[ 0.118374] qcom-qusb2-phy 59000.phy: supply vdda-phy-dpdm not found, using dummy regulator
[ 0.118575] qcom-qusb2-phy 59000.phy: Registered Qcom-QUSB2 phy
[ 0.118808] qcom-qusb2-phy 79000.phy: supply vdd not found, using dummy regulator
[ 0.118925] qcom-qusb2-phy 79000.phy: supply vdda-pll not found, using dummy regulator
[ 0.118983] qcom-qusb2-phy 79000.phy: supply vdda-phy-dpdm not found, using dummy regulator
[ 0.119183] qcom-qusb2-phy 79000.phy: Registered Qcom-QUSB2 phy
[ 0.130258] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.134360] msm_serial 78b3000.serial: msm_serial: detected port #0
[ 0.134400] msm_serial 78b3000.serial: uartclk = 3686400
[ 0.134737] 78b3000.serial: ttyMSM0 at MMIO 0x78b3000 (irq = 20, base_baud = 230400) is a MSM
[ 0.134774] msm_serial: console setup on port #0
[ 0.134817] printk: console [ttyMSM0] enabled
[ 0.955359] msm_serial: driver initialized
[ 0.964851] loop: module loaded
[ 0.966361] nand: device found, Manufacturer ID: 0xef, Chip ID: 0xaa
[ 0.966846] nand: Winbond W29N02GZ
[ 0.973396] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 0.976954] 10 fixed-partitions partitions found on MTD device qcom_nand.0
[ 0.984195] OF: Bad cell count for /soc@0/nand-controller@79b0000/nand@0/partitions
[ 0.991050] OF: Bad cell count for /soc@0/nand-controller@79b0000/nand@0/partitions
[ 0.999004] Creating 10 MTD partitions on "qcom_nand.0":
[ 1.006216] 0x000000000000-0x000000060000 : "0:sbl1"
[ 1.012747] 0x000000060000-0x0000000a0000 : "0:mibib"
[ 1.017528] 0x0000000a0000-0x000000280000 : "0:qsee"
[ 1.023689] 0x000000280000-0x0000002a0000 : "0:devcfg"
[ 1.027299] 0x0000002a0000-0x0000002c0000 : "0:apdp"
[ 1.032238] 0x0000002c0000-0x000000300000 : "0:rpm"
[ 1.037497] 0x000000300000-0x000000320000 : "0:cdt"
[ 1.041950] 0x000000320000-0x0000003e0000 : "0:appsbl"
[ 1.047359] 0x0000003e0000-0x000000400000 : "0:appsblenv"
[ 1.052054] 0x000000400000-0x000010000000 : "UBI_DEV"
[ 1.256475] ubi0: attaching mtd9
[ 1.916774] random: crng init done
[ 2.449265] ubi0: scanning is finished
[ 2.457783] ubi0: attached mtd9 (name "UBI_DEV", size 252 MiB)
[ 2.457828] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 2.462520] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 2.469397] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 2.476237] ubi0: good PEBs: 2016, bad PEBs: 0, corrupted PEBs: 0
[ 2.483012] ubi0: user volume: 6, internal volumes: 1, max. volumes count: 128
[ 2.489264] ubi0: max/mean erase counter: 20/12, WL threshold: 4096, image sequence number: 777439194
[ 2.496381] ubi0: available PEBs: 0, total reserved PEBs: 2016, PEBs reserved for bad PEB handling: 40
[ 2.505689] ubi0: background thread "ubi_bgt0d" started, PID 324
[ 2.506286] block ubiblock0_4: created from ubi0:4(jffs2)
[ 2.521435] spmi spmi-0: PMIC arbiter version v2 (0x20010000)
[ 2.553656] i2c_dev: i2c /dev entries driver
[ 2.561009] sdhci: Secure Digital Host Controller Interface driver
[ 2.561053] sdhci: Copyright(c) Pierre Ossman
[ 2.566088] sdhci-pltfm: SDHCI platform and OF driver helper
[ 2.572476] remoteproc remoteproc0: releasing cd00000.q6v5_wcss
[ 2.578833] NET: Registered PF_INET6 protocol family
[ 2.582784] Segment Routing with IPv6
[ 2.587203] In-situ OAM (IOAM) with IPv6
[ 2.590727] NET: Registered PF_PACKET protocol family
[ 2.594694] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 2.599995] 8021q: 802.1Q VLAN Support v1.8
[ 2.641339] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4
[ 2.641689] cpr4_ipq807x_apss_read_fuse_data: apc_corner: speed bin = 0
[ 2.647507] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR fusing revision = 1
[ 2.654065] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR misc fuse value = 0
[ 2.661784] cpr4_ipq807x_apss_read_fuse_data: apc_corner: Voltage boost fuse config = 0 boost = disable
[ 2.669258] cpr3_mem_acc_init: apc: not using memory accelerator regulator
[ 2.678387] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused SVS: open-loop= 704000 uV
[ 2.685319] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused NOM: open-loop= 840000 uV
[ 2.695319] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused TURBO: open-loop= 904000 uV
[ 2.705131] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused STURBO: open-loop= 984000 uV
[ 2.714987] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused SVS: quot[ 7]= 714, quot_offset[ 7]= 0
[ 2.724750] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused NOM: quot[ 7]= 980, quot_offset[ 7]= 265
[ 2.735597] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused TURBO: quot[ 7]=1089, quot_offset[ 7]= 105
[ 2.746534] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused STURBO: quot[ 7]=1235, quot_offset[ 7]= 145
[ 2.757694] cpr3_regulator_init_ctrl: apc: Default CPR mode = closed-loop
[ 2.762984] cpufreq: cpufreq_online: CPU0: Running at unlisted initial frequency: 800000 KHz, changing to: 1017600 KHz
[ 2.776859] remoteproc remoteproc0: cd00000.q6v5_wcss is avai[ 2.794301] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
[ 2.794790] Freeing unused kernel memory: 1536K
[ 2.800529] Run /sbin/init as init process
[ 2.938099] init: Console is alive
[ 2.938227] init: - watchdog -
[ 3.425707] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 3.453939] gpio_button_hotplug: loading out-of-tree module taints kernel.
[ 3.488433] ssdk_dt_parse_interrupt[941]:INFO:intr-gpio does not exist
[ 3.548994] sfp_phy_init[419]:INFO:qca probe sfp phy driver succeeded!
[ 5.336842] regi_init[2525]:INFO:Initializing HPPE Done!!
[ 5.336984] regi_init[2574]:INFO:qca-ssdk module init succeeded!
[ 5.343416] EDMA ver 1 hw init
[ 5.347546] EDMA HW Reset completed succesfully
[ 5.350202] Num rings - TxDesc:1 (23-23) TxCmpl:1 (7-7)
[ 5.354596] RxDesc:1 (15-15) RxFill:1 (7-7)
[ 5.360235] dp1: ppe offload disabled: 0 for macid 1
[ 5.363972] dp1: Switch attached to macid 1 status: 0
[ 5.567542] Qualcomm QCA8075 90000.mdio-1:08: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:08, irq=POLL)
[ 5.568416] dp2: ppe offload disabled: 0 for macid 2
[ 5.576436] dp2: Switch attached to macid 2 status: 0
[ 5.667132] Qualcomm QCA8075 90000.mdio-1:09: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:09, irq=POLL)
[ 5.667944] dp3: ppe offload disabled: 0 for macid 3
[ 5.676032] dp3: Switch attached to macid 3 status: 0
[ 5.726992] qca8k 90000.mdio-1:10: PHY [90000.mdio-1:05] driver [Qualcomm Atheros AR8035] (irq=POLL)
[ 5.729326] qca8k 90000.mdio-1:10: configuring for phy/rgmii-rxid link mode
[ 5.757096] Qualcomm QCA8075 90000.mdio-1:0a: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:0a, irq=POLL)
[ 5.758086] dp4: ppe offload disabled: 0 for macid 4
[ 5.765998] dp4: Switch attached to macid 4 status: 0
[ 5.827182] qca8k 90000.mdio-1:10 lan7 (uninitialized): PHY [90000.mdio-1:00] driver [Qualcomm Atheros 8337 internal PHY] (irq=POLL)
[ 5.857122] Qualcomm QCA8075 90000.mdio-1:0b: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:0b, irq=POLL)
[ 5.857960] dp5-syn: ppe offload disabled: 0 for macid 5
[ 5.866023] dp5-syn: Switch attached to macid 5 status: 0
[ 5.871659] QCA SFP 90000.mdio-1:1e: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:1e, irq=POLL)
[ 5.877739] dp6-syn: ppe offload disabled: 0 for macid 6
[ 5.885988] dp6-syn: Switch attached to macid 6 status: 0
[ 5.891436] nss-dp 3a007000.dp6-syn 10g-copper (uninitialized): failed to connect to phy device
[ 5.896687] nss-dp: probe of 3a007000.dp6-syn failed with error -14
[ 5.905290] **********************************************************
[ 5.907142] qca8k 90000.mdio-1:10 lan6 (uninitialized): PHY [90000.mdio-1:01] driver [Qualcomm Atheros 8337 internal PHY] (irq=POLL)
[ 5.911430] * NSS Data Plane driver
[ 5.930090] **********************************************************
[ 5.948771] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 5.948818] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 1
[ 5.953273] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000008002000010
[ 5.960762] xhci-hcd xhci-hcd.1.auto: irq 41, io mem 0x08a00000
[ 5.970206] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 5.975985] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 2
[ 5.981564] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
[ 5.989564] hub 1-0:1.0: USB hub found
[ 5.995706] hub 1-0:1.0: 1 port detected
[ 5.997288] qca8k 90000.mdio-1:10 lan5 (uninitialized): PHY [90000.mdio-1:02] driver [Qualcomm Atheros 8337 internal PHY] (irq=POLL)
[ 5.999741] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 6.015765] hub 2-0:1.0: USB hub found
[ 6.023503] hub 2-0:1.0: 1 port detected
[ 6.027375] xhci-hcd xhci-hcd.2.auto: xHCI Host Controller
[ 6.031112] xhci-hcd xhci-hcd.2.auto: new USB bus registered, assigned bus number 3
[ 6.036532] xhci-hcd xhci-hcd.2.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000008002000010
[ 6.044007] xhci-hcd xhci-hcd.2.auto: irq 42, io mem 0x08c00000
[ 6.053439] xhci-hcd xhci-hcd.2.auto: xHCI Host Controller
[ 6.059238] xhci-hcd xhci-hcd.2.auto: new USB bus registered, assigned bus number 4
[ 6.064790] xhci-hcd xhci-hcd.2.auto: Host supports USB 3.0 SuperSpeed
[ 6.072854] hub 3-0:1.0: USB hub found
[ 6.077096] qca8k 90000.mdio-1:10 lan4 (uninitialized): PHY [90000.mdio-1:03] driver [Qualcomm Atheros 8337 internal PHY] (irq=POLL)
[ 6.079010] hub 3-0:1.0: 1 port detected
[ 6.095083] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[ 6.099164] hub 4-0:1.0: USB hub found
[ 6.106762] hub 4-0:1.0: 1 port detected
[ 6.112454] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 6.117013] init: - preinit -
[ 6.157203] qca8k 90000.mdio-1:10 lan3 (uninitialized): PHY [90000.mdio-1:04] driver [Qualcomm Atheros 8337 internal PHY] (irq=POLL)
[ 6.237165] qca8k 90000.mdio-1:10 lan8 (uninitialized): PHY [90000.mdio-1:06] driver [Qualcomm Atheros AR8031/AR8033] (irq=POLL)
[ 6.237811] nss-dp 3a001000.dp1 switch: entered promiscuous mode
[ 6.247919] DSA: tree 0 setup
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[ 8.719239] UBIFS (ubi0:5): Mounting in unauthenticated mode
[ 8.719347] UBIFS (ubi0:5): background thread "ubifs_bgt0_5" started, PID 966
[ 8.748443] UBIFS (ubi0:5): recovery needed
[ 8.860265] UBIFS (ubi0:5): recovery completed
[ 8.860387] UBIFS (ubi0:5): UBIFS: mounted UBI device 0, volume 5, name "rootfs_data"
[ 8.863613] UBIFS (ubi0:5): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 8.871538] UBIFS (ubi0:5): FS size: 235032576 bytes (224 MiB, 1851 LEBs), max 1863 LEBs, journal size 11808768 bytes (11 MiB, 93 LEBs)
[ 8.881426] UBIFS (ubi0:5): reserved for root: 4952683 bytes (4836 KiB)
[ 8.893392] UBIFS (ubi0:5): media format: w5/r0 (latest is w5/r0), UUID 32BFDD7D-68AE-4E8E-8ADE-810757867654, small LPT model
[ 8.902871] mount_root: switching to ubifs overlay
[ 8.914967] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 8.920521] urandom-seed: Seeding with /etc/urandom.seed
[ 8.972732] procd: - early -
[ 8.972841] procd: - watchdog -
[ 9.510907] procd: - watchdog -
[ 9.511465] procd: - ubus -
[ 9.575657] procd: - init -
Please press Enter to activate this console.
[ 9.762412] kmodloader: loading kernel modules from /etc/modules.d/*
[ 9.847025] gpio-fan gpio-fan: GPIO fan initialized
[ 9.850690] Loading modules backported from Linux version v6.9.9-0-g28fdf4518483
[ 9.850730] Backport generated by backports.git v6.1.97-1-29-gf1d24a3683b2
[ 9.862971] NET: Registered PF_QIPCRTR protocol family
[ 9.920668] PPP generic driver version 2.4.2
[ 9.921395] NET: Registered PF_PPPOX protocol family
[ 9.931637] ath11k c000000.wifi: ipq8074 hw2.0
[ 9.931672] ath11k c000000.wifi: FW memory mode: 0
[ 9.969192] urngd: v1.0.2 started.
[ 9.969598] remoteproc remoteproc0: powering up cd00000.q6v5_wcss
[ 9.971777] remoteproc remoteproc0: Booting fw image IPQ8074/q6_fw.mdt, size 668
[ 11.046246] remoteproc remoteproc0: remote processor cd00000.q6v5_wcss is now up
[ 33.126794] l11: disabling
[ 74.726770] ath11k c000000.wifi: Coldboot Calibration timed out
[ 74.729660] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 76.750947] br-lan: port 1(10g-sfp) entered blocking state
[ 76.750993] br-lan: port 1(10g-sfp) entered disabled state
[ 76.755372] nss-dp 3a003000.dp5-syn 10g-sfp: entered allmulticast mode
[ 76.761153] nss-dp 3a003000.dp5-syn 10g-sfp: entered promiscuous mode
[ 76.816388] br-lan: port 2(lan1) entered blocking state
[ 76.816444] br-lan: port 2(lan1) entered disabled state
[ 76.820531] nss-dp 3a001400.dp3 lan1: entered allmulticast mode
[ 76.825846] nss-dp 3a001400.dp3 lan1: entered promiscuous mode
[ 76.835473] br-lan: port 3(lan2) entered blocking state
[ 76.837494] br-lan: port 3(lan2) entered disabled state
[ 76.842607] nss-dp 3a001200.dp2 lan2: entered allmulticast mode
[ 76.848103] nss-dp 3a001200.dp2 lan2: entered promiscuous mode
[ 76.861684] qca8k 90000.mdio-1:10 lan3: configuring for phy/gmii link mode
[ 76.862362] br-lan: port 4(lan3) entered blocking state
[ 76.867524] br-lan: port 4(lan3) entered disabled state
[ 76.872633] qca8k 90000.mdio-1:10 lan3: entered allmulticast mode
[ 76.877831] nss-dp 3a001000.dp1 switch: entered allmulticast mode
[ 76.885239] qca8k 90000.mdio-1:10 lan3: entered promiscuous mode
[ 76.903752] qca8k 90000.mdio-1:10 lan4: configuring for phy/gmii link mode
[ 76.904084] br-lan: port 5(lan4) entered blocking state
[ 76.909565] br-lan: port 5(lan4) entered disabled state
[ 76.914688] qca8k 90000.mdio-1:10 lan4: entered allmulticast mode
[ 76.920551] qca8k 90000.mdio-1:10 lan4: entered promiscuous mode
[ 76.938981] qca8k 90000.mdio-1:10 lan5: configuring for phy/gmii link mode
[ 76.939291] br-lan: port 6(lan5) entered blocking state
[ 76.944751] br-lan: port 6(lan5) entered disabled state
[ 76.949912] qca8k 90000.mdio-1:10 lan5: entered allmulticast mode
[ 76.955807] qca8k 90000.mdio-1:10 lan5: entered promiscuous mode
[ 76.974626] qca8k 90000.mdio-1:10 lan6: configuring for phy/gmii link mode
[ 76.974969] br-lan: port 7(lan6) entered blocking state
[ 76.980421] br-lan: port 7(lan6) entered disabled state
[ 76.985546] qca8k 90000.mdio-1:10 lan6: entered allmulticast mode
[ 76.991592] qca8k 90000.mdio-1:10 lan6: entered promiscuous mode
[ 77.008987] qca8k 90000.mdio-1:10 lan7: configuring for phy/gmii link mode
[ 77.009404] br-lan: port 8(lan7) entered blocking state
[ 77.014754] br-lan: port 8(lan7) entered disabled state
[ 77.019912] qca8k 90000.mdio-1:10 lan7: entered allmulticast mode
[ 77.025966] qca8k 90000.mdio-1:10 lan7: entered promiscuous mode
[ 77.044392] qca8k 90000.mdio-1:10 lan8: configuring for inband/sgmii link mode
[ 77.047291] br-lan: port 9(lan8) entered blocking state
[ 77.050517] br-lan: port 9(lan8) entered disabled state
[ 77.055678] qca8k 90000.mdio-1:10 lan8: entered allmulticast mode
[ 77.064015] qca8k 90000.mdio-1:10 lan8: entered promiscuous mode
[ 80.247938] qca8k 90000.mdio-1:10 lan3: Link is Up - 1Gbps/Full - flow control rx/tx
[ 80.247972] br-lan: port 4(lan3) entered blocking state
[ 80.254759] br-lan: port 4(lan3) entered forwarding state
BusyBox v1.36.1 (2024-09-02 11:27:47 UTC) built-in shell (ash)
_______ ________ __
| |.-----.-----.-----.| | | |.----.| |_
| - || _ | -__| || | | || _|| _|
|_______|| __|_____|__|__||________||__| |____|
|__| W I R E L E S S F R E E D O M
-----------------------------------------------------
OpenWrt SNAPSHOT, r27290-64dae1052b
-----------------------------------------------------
=== WARNING! =====================================
There is no root password defined on this device!
Use the "passwd" command to set up a new password
in order to prevent unauthorized SSH logins.
--------------------------------------------------
root@OpenWrt:~#
@Gin1AK-tion1 take a look at the discussion I had up here. I bricked mine too with an incompatible firmware and got it running again with the help of this nice community
These would be my approaches, starting with the easiest one:
- have a try with
firstboot, maybe that suffices already - my approach would be trying to mount a USB stick and get a new/ working firmware (sysupgrade) from there, that obviously only works if you had USB/ filesystem modules installed before
- you have a root shell, try to use it to accomplish a network connection manually (regardless of internet or local only), so you can get a new firmware on there
- try all ports
- tftpboot (option 1) an initramfs image an go on from there
I am still using the snapshot that was off the Google drive. I will probably upgrade to a real image in the next week. Is there a way to get the list of packages that were pre-installed? I believe there were a bunch of custom packages on there.
it did have the luci package until I used "firstboot" in the serial console. Not SSH console. It wont give me an IP either.
I flashed this from OpenWRT to stock firmware to dd-wrt and then stock firmware and then back to OpenWRT. I dont know if NOT doing a factory reset each time is what might have did it for me...
I will take a look at your posts though.
- Already tried. but might try again.
- I think its got teh modules already loaded but I think its also safe to say that I dont think its got ALL of them. so USB may not be effective.
- I dont know how to do that honestly. I got access to root shell via serial console but I cannot get any ip address from this router nor can I get this router to connect to the internet.
- ill take a look. but I dont think ill make progress.
The DD-WRT developers have some very bad ideas:
UPD: Common sense won out after all
https://github.com/mirror/dd-wrt/commit/3fe6ce6b3f10b9046de3f6a24c79e4938d21ed68#diff-3cdc08551d57876829a832a24988dad251b6973038a3fa37414582a0cc718381L466-R471
DD-WRT developers set limit to 60 degrees:
And change to 65:
And set hysteresis to 4 degrees. it just flip flops too often:
UPD: Back to 60 degrees:
Hi all,

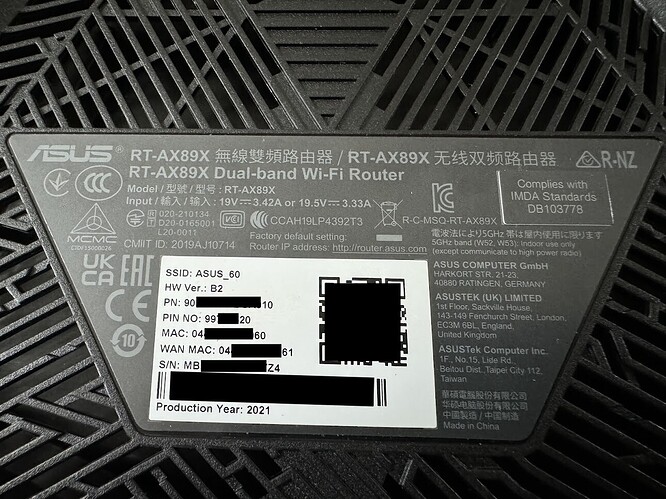

I have "B2" version with me. Can I flash it with OpenWrt? Will it work?
Based on information on https://openwrt.org/toh/asus/rt-ax89x, the supported version is "B". So, I want to confirm first.
Thanks.
Yeah, the hysteresis probably should be 4-5 degrees.
I am working on adding the Aquantia PHY as a thermal zone so it cools once it gets hot as well, but there is an issue with the way hwmon issues low thermal limits
2 Likes
Yeah, I based it on the B2 version as that is what I have
something tells me that this is what broke my router. Like possibly FUBAR levels of broke.
ill still make an attempt to fix the router, but I am considering just donating this router to an OpenWRT developer living in the USA.
No offense to my non-american folks, but your goverments are making it hard for my package to enter your country. Germany as one good example.
So B2 should work?
Yes, it will work
@remittor This is what I get when I run "mtdparts"
RT-AX89U# mtdparts
device nand0 <nand0>, # parts = 3
#: name size offset mask_flags
0: Bootloader 0x003e0000 0x00000000 0
1: environment 0x00020000 0x003e0000 0
2: UBI_DEV 0x0fc00000 0x00400000 0
active partition: nand0,0 - (Bootloader) 0x003e0000 @ 0x00000000
defaults:
mtdids : none
mtdparts: none
RT-AX89U#
So based on what I am seeing here, dd-wrt might have screwed up the routers "stored hardware configuration" to the point where I would need an a backup file of this router but from stock firmware that has everything at default.
Ports 1, 2, WAN, and the 10GBe all will not work regardless if im in serial console, rescue mode, or OpenWRT firmware.
I did look into the "kermit" protocol but that seems like another headache...
@robimarko Is it possible to flash factory stock firmware over serial? I see there is an option to "7: Load Boot Loader code then write to Flash via Serial"
EDIT: It appears the user "jferris" has exactly the same issue as me. but never got his router working so it seems.
