Hello im using openwrt as my main router on a network 192.168.2.0/24, use a gateway lite on a network 192.168.1.0/24 (only use to control my unifi stuff camaras,cloudkey, ap's and sensors).
My problem is i cant access the unfi GUI, do i have to unbridge 1 port from my lan and create a inferface whith that port and use a static ip from the subnet 192.168.1.0/24 like 192.168.1.245
Typically it should 'just work' but this very much depends on the topology and the configuration.
Can you provide a simple topology diagram that shows how things are connected?
And let's see your relevant config files:
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button (red circle; this works best in the 'Markdown' composer view in the blue oval):
Remember to redact passwords, VPN keys, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/firewall
"kernel": "6.6.119",
"hostname": "VDF-WRT",
"system": "ARMv8 Processor rev 4",
"model": "GL.iNet GL-MT6000",
"board_name": "glinet,gl-mt6000",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.5",
"revision": "r29087-d9c5716d1d",
"target": "mediatek/filogic",
"description": "OpenWrt 24.10.5 r29087-d9c5716d1d",
"builddate": "1766005702"
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd07:cd58:c764::/48'
option packet_steering '0'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
list ports 'lan5'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.2.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device 'eth1.100'
option proto 'dhcp'
config interface 'wan6'
option device 'eth1.100'
option proto 'dhcpv6'
option reqaddress 'try'
option reqprefix 'auto'
option norelease '1'
config device
option type '8021q'
option ifname 'eth1'
option vid '100'
option name 'eth1.100'
config defaults
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'REJECT'
option synflood_protect '1'
config zone
option name 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
list network 'lan'
config zone
option name 'wan'
option input 'DROP'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
list network 'wan'
list network 'wan6'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule
option name 'Allow-Ping'
option src 'wan'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Input'
option src 'wan'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config redirect 'adblock_lan53'
option name 'Adblock DNS (lan, 53)'
option src 'lan'
option proto 'tcp udp'
option src_dport '53'
option dest_port '53'
option target 'DNAT'
option family 'any'
config redirect
option name 'Adblock DNS (lan, 853)'
option src 'lan'
option proto 'tcp udp'
option src_dport '853'
option dest_port '853'
option target 'DNAT'
option family 'any'
config redirect
option name 'Adblock DNS (lan, 5353)'
option src 'lan'
option proto 'tcp udp'
option src_dport '5353'
option dest_port '5353'
option target 'DNAT'
option family 'any'
config rule 'adblock_lan853'
option name 'Adblock DNS (lan, 853)'
option src 'lan'
option proto 'tcp udp'
option dest_port '853'
option target 'REJECT'
option dest '*'
config rule 'adblock_lan5353'
option name 'Adblock DNS (lan, 5353)'
option src 'lan'
option proto 'tcp udp'
option dest_port '5353'
option target 'REJECT'
option dest '*'
I don’t see any issues with the configs.
This is the part that is pretty critical now. We need to understand your topology.

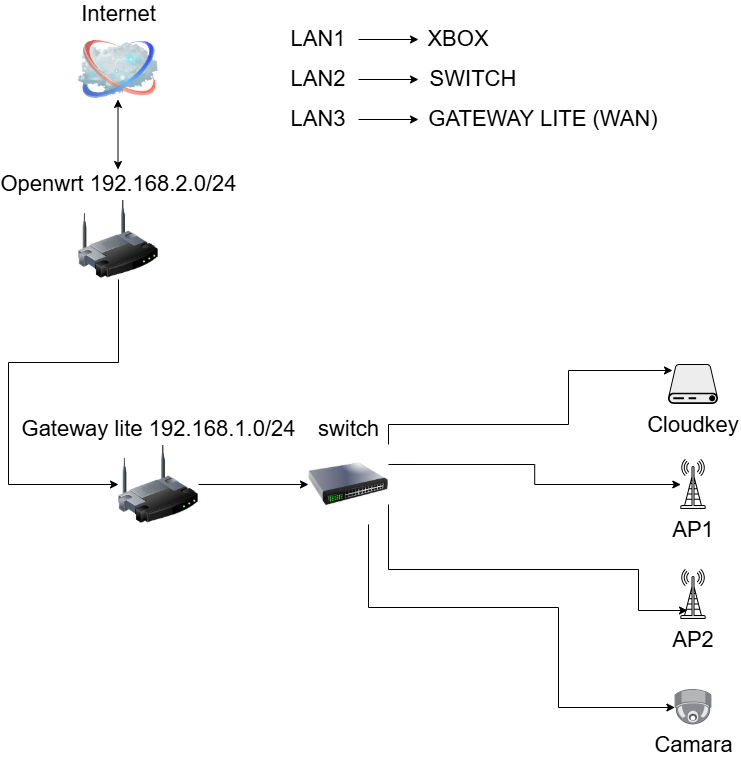

On my Gateway lite i have a wan ip from openwrt as 192.168.2.205, all my wireless devices are on the gateway lite network and they have internet from openwrt.
My PC i use is on the openwrt network, and i cant go to the gateway lite GUI
The Gateway Lite only have 1Wan port and 1Lan port.
Lan4 and Lan5 on Openwrt i dont use can i remove lan4 from br-lan and use with a static-ip with the network of gateway lite.
Well the topology shows the problem. Your unifi system’s wan does not allow incoming connections. Further, it is setup with NAT, so the network behind it is not directly accessible.
The correct way to do this would be to allow the inbound connections on the unifi wan.
The workaround would be to add an additional connection and a separate interface from the main router to the unifi lan side.
Given your topology, what is the purpose of the openwrt router? Seems like it isn’t really needed.
