5 GHz band always busy (24.10.5)

Klingon · February 17, 2026, 11:37am

Hi everyone,

Running a wireless scan on 5 Ghz. band (in luci or cli) is always busy, showing no results.
Devices can connect with no issues... but no info about my neighbours channels.

root@DAP2610:~# ubus call system board
{
        "kernel": "6.6.119",
        "hostname": "DAP2610",
        "system": "ARMv7 Processor rev 5 (v7l)",
        "model": "D-Link DAP 2610",
        "board_name": "dlink,dap-2610",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "24.10.5",
                "revision": "r29087-d9c5716d1d",
                "target": "ipq40xx/generic",
                "description": "OpenWrt 24.10.5 r29087-d9c5716d1d",
                "builddate": "1766005702"
        }
}
root@DAP2610:~#

root@DAP2610:~# opkg list-installed | grep -i ath10
ath10k-board-qca4019 - 20241110-r2
ath10k-firmware-qca4019-ct - 2020.11.08-r1
kmod-ath10k-ct - 6.6.119.2024.07.30~ac71b14d-r2
root@DAP2610:~#

No matter what I do (reboot, shutdown and wait, disable/enable interface....) always same result.
In 2.4 Ghz band, no issues about, only in 5 Ghz.

Anyone in the same way?

Thanks,

frollic · February 17, 2026, 11:41am

run logread -f via ssh.
click scan button
post log entries from logread.

have you by any chance updated any packages ?

egc · February 17, 2026, 11:41am

Perhaps try the non CT firmware

Klingon · February 17, 2026, 11:51am

No wifi log:

Tue Feb 17 12:38:33 2026 authpriv.info dropbear[4866]: Exit (root) from <192.168.8.2:54392>: Exited normally
Tue Feb 17 12:47:01 2026 daemon.err uhttpd[1486]: [info] luci: accepted login on / for root from 192.168.8.2
Tue Feb 17 12:47:11 2026 authpriv.info dropbear[4968]: Child connection from 192.168.8.2:54836
Tue Feb 17 12:47:16 2026 authpriv.notice dropbear[4968]: Password auth succeeded for 'root' from 192.168.8.2:54836

"have you by any chance updated any packages ?"

No, default packages...

Klingon · February 17, 2026, 11:57am

I'll try it again (I tested with 25.12.XX), the result was the same as CT.

anon63541380 · February 17, 2026, 12:09pm

Whic+ of 2 wireless scans you are running? Both require country set.

Klingon · February 17, 2026, 2:01pm

Interface scanning:

2.4 Ghz. - Working
5 Ghz. - Not Working

Both interfaces same country set

If I run 2.4 Ghz. I get info about my interface + neighbours channels.

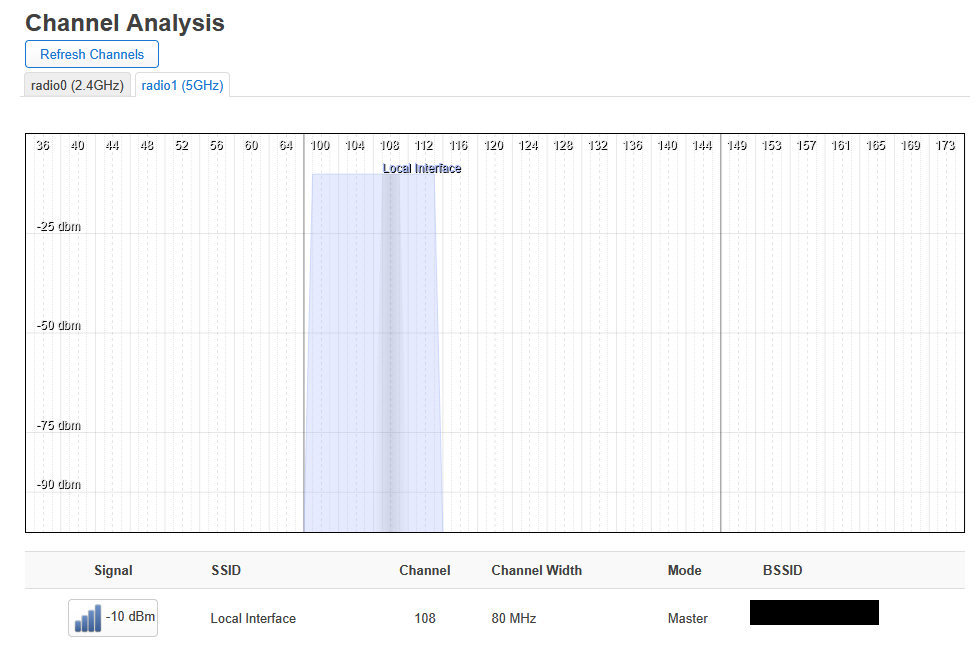

If I run 5 Ghz. I only get my interface channel.. nothing else.

Interface 5 Ghz.

root@DAP2610:~# iw phy1-ap0 scan
command failed: Resource busy (-16)
root@DAP2610:~#

Interface 2.4 Ghz.

root@DAP2610:~# iw phy0-ap0 scan | grep -i primary
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 6
                 * primary channel: 7
                 * primary channel: 8
                 * primary channel: 10
                 * primary channel: 10
                 * primary channel: 11
                 * primary channel: 13
                 * primary channel: 4
                 * primary channel: 6
                 * primary channel: 1
                 * primary channel: 1
                 * primary channel: 2
                 * primary channel: 11
root@DAP2610:~#

anon63541380 · February 17, 2026, 2:12pm

Being client (STA) or monitor effectively prevents channel switch.

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button (red circle; this works best in the 'Markdown' composer view in the blue oval):

Remember to redact passwords, VPN keys, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/wireless
iw phy

Klingon · February 17, 2026, 2:16pm

root@DAP2610:~# ubus call system board
{
        "kernel": "6.6.119",
        "hostname": "DAP2610",
        "system": "ARMv7 Processor rev 5 (v7l)",
        "model": "D-Link DAP 2610",
        "board_name": "dlink,dap-2610",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "24.10.5",
                "revision": "r29087-d9c5716d1d",
                "target": "ipq40xx/generic",
                "description": "OpenWrt 24.10.5 r29087-d9c5716d1d",
                "builddate": "1766005702"
        }
}
root@DAP2610:~#

root@DAP2610:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'platform/soc/a000000.wifi'
        option channel 'auto'
        option band '2g'
        option htmode 'HT20'
        option country 'ES'
        option cell_density '0'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'XXXXX'
        option key 'XXXXX'
        option encryption 'psk2'
        option disassoc_low_ack '0'

config wifi-iface 'wifinet2'
        option device 'radio0'
        option mode 'ap'
        option ssid 'WFXXX'
        option key 'XXXXXX'
        option network 'vlan10'
        option encryption 'psk2'
        option disassoc_low_ack '0'

config wifi-device 'radio1'
        option type 'mac80211'
        option path 'platform/soc/a800000.wifi'
        option channel 'auto'
        option band '5g'
        option htmode 'VHT80'
        option country 'ES'
        option cell_density '0'

config wifi-iface 'default_radio1'
        option device 'radio1'
        option network 'lan'
        option mode 'ap'
        option ssid 'WifXXX'
        option key 'XXXXXX'
        option encryption 'psk2'
        option disassoc_low_ack '0'

root@DAP2610:~#

root@DAP2610:~# iw phy
Wiphy phy1
        wiphy index: 1
        max # scan SSIDs: 16
        max scan IEs length: 199 bytes
        max # sched scan SSIDs: 0
        max # match sets: 0
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
                 * P2P-device
        Band 2:
                Capabilities: 0x19ef
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 7935 bytes
                        DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: 8 usec (0x06)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x339959b2):
                        Max MPDU length: 11454
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        SU Beamformer
                        SU Beamformee
                        MU Beamformer
                        MU Beamformee
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                VHT extended NSS: not supported
                Frequencies:
                        * 5180.0 MHz [36] (23.0 dBm)
                        * 5200.0 MHz [40] (23.0 dBm)
                        * 5220.0 MHz [44] (23.0 dBm)
                        * 5240.0 MHz [48] (23.0 dBm)
                        * 5260.0 MHz [52] (20.0 dBm) (radar detection)
                        * 5280.0 MHz [56] (20.0 dBm) (radar detection)
                        * 5300.0 MHz [60] (20.0 dBm) (radar detection)
                        * 5320.0 MHz [64] (20.0 dBm) (radar detection)
                        * 5500.0 MHz [100] (26.0 dBm) (radar detection)
                        * 5520.0 MHz [104] (26.0 dBm) (radar detection)
                        * 5540.0 MHz [108] (26.0 dBm) (radar detection)
                        * 5560.0 MHz [112] (26.0 dBm) (radar detection)
                        * 5580.0 MHz [116] (26.0 dBm) (radar detection)
                        * 5600.0 MHz [120] (26.0 dBm) (radar detection)
                        * 5620.0 MHz [124] (26.0 dBm) (radar detection)
                        * 5640.0 MHz [128] (26.0 dBm) (radar detection)
                        * 5660.0 MHz [132] (26.0 dBm) (radar detection)
                        * 5680.0 MHz [136] (26.0 dBm) (radar detection)
                        * 5700.0 MHz [140] (26.0 dBm) (radar detection)
                        * 5720.0 MHz [144] (13.0 dBm) (radar detection)
                        * 5745.0 MHz [149] (13.0 dBm)
                        * 5765.0 MHz [153] (13.0 dBm)
                        * 5785.0 MHz [157] (13.0 dBm)
                        * 5805.0 MHz [161] (13.0 dBm)
                        * 5825.0 MHz [165] (13.0 dBm)
                        * 5845.0 MHz [169] (13.0 dBm)
                        * 5865.0 MHz [173] (13.0 dBm)
        valid interface combinations:
                 * #{ managed } <= 16, #{ AP, mesh point } <= 16, #{ IBSS } <= 1,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: -1
        max scan plan iterations: 0
        Maximum associated stations in AP mode: 32
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
                * [ POWERED_ADDR_CHANGE ]: can change MAC address while up
Wiphy phy0
        wiphy index: 0
        max # scan SSIDs: 16
        max scan IEs length: 195 bytes
        max # sched scan SSIDs: 0
        max # match sets: 0
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
                 * P2P-device
        Band 1:
                Capabilities: 0x19ef
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 7935 bytes
                        DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: 8 usec (0x06)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x339959b2):
                        Max MPDU length: 11454
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        SU Beamformer
                        SU Beamformee
                        MU Beamformer
                        MU Beamformee
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                VHT extended NSS: not supported
                Frequencies:
                        * 2412.0 MHz [1] (20.0 dBm)
                        * 2417.0 MHz [2] (20.0 dBm)
                        * 2422.0 MHz [3] (20.0 dBm)
                        * 2427.0 MHz [4] (20.0 dBm)
                        * 2432.0 MHz [5] (20.0 dBm)
                        * 2437.0 MHz [6] (20.0 dBm)
                        * 2442.0 MHz [7] (20.0 dBm)
                        * 2447.0 MHz [8] (20.0 dBm)
                        * 2452.0 MHz [9] (20.0 dBm)
                        * 2457.0 MHz [10] (20.0 dBm)
                        * 2462.0 MHz [11] (20.0 dBm)
                        * 2467.0 MHz [12] (20.0 dBm)
                        * 2472.0 MHz [13] (20.0 dBm)
                        * 2484.0 MHz [14] (disabled)
        valid interface combinations:
                 * #{ managed } <= 16, #{ AP, mesh point } <= 16, #{ IBSS } <= 1,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: -1
        max scan plan iterations: 0
        Maximum associated stations in AP mode: 32
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
                * [ POWERED_ADDR_CHANGE ]: can change MAC address while up
root@DAP2610:~#

anon63541380 · February 17, 2026, 2:48pm

Try two scans in the luci-

Status/Channel Analysis
Network/Wireless/scan next to 5ghz radio.

Your setup looks perfectly fine. Wave1 ath10k had fake "background scan" that AP was blinking while you scan, but yours is wave2 and should have no problems.

Can you verify that you have mainline linux driver + firmware (default were -ct)?

opkg update
opkg remove ath10k-firmware-qca4019-ct kmod-ath10k-ct
opkg install ath10k-firmware-qca4019 kmod-ath10k

Jaidee · February 17, 2026, 2:49pm

Yes I raised a topic about this last July. A few others responded with similar…..

https://forum.openwrt.org/t/channel-analysis-on-5ghz-only-local-interface-shown/236645/6

Klingon · February 17, 2026, 2:57pm

@anon63541380 @Jaidee

I have "downgraded" to 23.05.5 (same config - also ct driver), now scan works in 2.4 GHz. and 5 GHz. band.

Something is "buggy" in 24.10.XX (at least for my device)

anon63541380 · February 17, 2026, 3:00pm

If you change the driver and reboot?

Klingon · February 17, 2026, 3:01pm

In 24.10.5, not working, the same at CT driver.

EDIT: In 25.12-rc4... the same as 24.10.5
Usually before posting a problem.... I try to solve by myself changing configs/firmware versions.

Klingon · February 17, 2026, 3:04pm

I'll stay in 23.05.XX, is not a problem in my case.

anon63541380 · February 17, 2026, 3:11pm

Well, depends on the device and wifi chip config - some need one or another driver to work at all, or to set up the mesh etc.

Klingon · February 26, 2026, 3:21pm

New info about (in 24.10.5/23.05.6)

Why is iw reg get showing?

root@DAP2610:~# iw reg get
global
country ES: DFS-ETSI
        (2400 - 2483 @ 40), (N/A, 20), (N/A)
        (5150 - 5250 @ 80), (N/A, 23), (N/A), NO-OUTDOOR, AUTO-BW
        (5250 - 5350 @ 80), (N/A, 20), (0 ms), NO-OUTDOOR, DFS, AUTO-BW
        (5470 - 5725 @ 160), (N/A, 26), (0 ms), DFS
        (5725 - 5875 @ 80), (N/A, 13), (N/A)
        (5945 - 6425 @ 320), (N/A, 23), (N/A), NO-OUTDOOR
        (57000 - 66000 @ 2160), (N/A, 40), (N/A)

phy#1
country US: DFS-FCC
        (902 - 904 @ 2), (N/A, 30), (N/A)
        (904 - 920 @ 16), (N/A, 30), (N/A)
        (920 - 928 @ 8), (N/A, 30), (N/A)
        (2400 - 2472 @ 40), (N/A, 30), (N/A)
        (5150 - 5250 @ 80), (N/A, 23), (N/A), AUTO-BW
        (5250 - 5350 @ 80), (N/A, 24), (0 ms), DFS, AUTO-BW
        (5470 - 5730 @ 160), (N/A, 24), (0 ms), DFS
        (5730 - 5850 @ 80), (N/A, 30), (N/A), AUTO-BW
        (5850 - 5895 @ 40), (N/A, 27), (N/A), NO-OUTDOOR, AUTO-BW, PASSIVE-SCAN
        (5925 - 7125 @ 320), (N/A, 12), (N/A), NO-OUTDOOR, PASSIVE-SCAN
        (57240 - 71000 @ 2160), (N/A, 40), (N/A)

phy#0
country US: DFS-FCC
        (902 - 904 @ 2), (N/A, 30), (N/A)
        (904 - 920 @ 16), (N/A, 30), (N/A)
        (920 - 928 @ 8), (N/A, 30), (N/A)
        (2400 - 2472 @ 40), (N/A, 30), (N/A)
        (5150 - 5250 @ 80), (N/A, 23), (N/A), AUTO-BW
        (5250 - 5350 @ 80), (N/A, 24), (0 ms), DFS, AUTO-BW
        (5470 - 5730 @ 160), (N/A, 24), (0 ms), DFS
        (5730 - 5850 @ 80), (N/A, 30), (N/A), AUTO-BW
        (5850 - 5895 @ 40), (N/A, 27), (N/A), NO-OUTDOOR, AUTO-BW, PASSIVE-SCAN
        (5925 - 7125 @ 320), (N/A, 12), (N/A), NO-OUTDOOR, PASSIVE-SCAN
        (57240 - 71000 @ 2160), (N/A, 40), (N/A)

root@DAP2610:~#

Global in ES, and phy0/1 to US?

My Country is set to ES in both radios, no US in any config file.

Any idea??

Thanks,

anon63541380 · February 26, 2026, 3:46pm

Because of ath10k driver.
Use iw phy to get real channel map

Klingon · February 27, 2026, 6:35am

Then... what is iw reg get command for?

In iw phy command I can't see nothing related to country zone (maybe a need a new pair of glasses )

root@DAP2610:~# iw phy
Wiphy phy1
        wiphy index: 1
        max # scan SSIDs: 16
        max scan IEs length: 199 bytes
        max # sched scan SSIDs: 0
        max # match sets: 0
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
                 * P2P-device
        Band 2:
                Capabilities: 0x19ef
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 7935 bytes
                        DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: 8 usec (0x06)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x339959b2):
                        Max MPDU length: 11454
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        SU Beamformer
                        SU Beamformee
                        MU Beamformer
                        MU Beamformee
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                VHT extended NSS: not supported
                Frequencies:
                        * 5180.0 MHz [36] (23.0 dBm)
                        * 5200.0 MHz [40] (23.0 dBm)
                        * 5220.0 MHz [44] (23.0 dBm)
                        * 5240.0 MHz [48] (23.0 dBm)
                        * 5260.0 MHz [52] (20.0 dBm) (radar detection)
                        * 5280.0 MHz [56] (20.0 dBm) (radar detection)
                        * 5300.0 MHz [60] (20.0 dBm) (radar detection)
                        * 5320.0 MHz [64] (20.0 dBm) (radar detection)
                        * 5500.0 MHz [100] (26.0 dBm) (radar detection)
                        * 5520.0 MHz [104] (26.0 dBm) (radar detection)
                        * 5540.0 MHz [108] (26.0 dBm) (radar detection)
                        * 5560.0 MHz [112] (26.0 dBm) (radar detection)
                        * 5580.0 MHz [116] (26.0 dBm) (radar detection)
                        * 5600.0 MHz [120] (26.0 dBm) (radar detection)
                        * 5620.0 MHz [124] (26.0 dBm) (radar detection)
                        * 5640.0 MHz [128] (26.0 dBm) (radar detection)
                        * 5660.0 MHz [132] (26.0 dBm) (radar detection)
                        * 5680.0 MHz [136] (26.0 dBm) (radar detection)
                        * 5700.0 MHz [140] (26.0 dBm) (radar detection)
                        * 5720.0 MHz [144] (13.0 dBm) (radar detection)
                        * 5745.0 MHz [149] (13.0 dBm)
                        * 5765.0 MHz [153] (13.0 dBm)
                        * 5785.0 MHz [157] (13.0 dBm)
                        * 5805.0 MHz [161] (13.0 dBm)
                        * 5825.0 MHz [165] (13.0 dBm)
                        * 5845.0 MHz [169] (13.0 dBm)
                        * 5865.0 MHz [173] (13.0 dBm)
        valid interface combinations:
                 * #{ managed } <= 16, #{ AP, mesh point } <= 16, #{ IBSS } <= 1,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: -1
        max scan plan iterations: 0
        Maximum associated stations in AP mode: 32
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
                * [ POWERED_ADDR_CHANGE ]: can change MAC address while up
Wiphy phy0
        wiphy index: 0
        max # scan SSIDs: 16
        max scan IEs length: 195 bytes
        max # sched scan SSIDs: 0
        max # match sets: 0
        Retry short limit: 7
        Retry long limit: 4
        Coverage class: 0 (up to 0m)
        Device supports AP-side u-APSD.
        Available Antennas: TX 0x3 RX 0x3
        Configured Antennas: TX 0x3 RX 0x3
        Supported interface modes:
                 * IBSS
                 * managed
                 * AP
                 * AP/VLAN
                 * monitor
                 * mesh point
                 * P2P-client
                 * P2P-GO
                 * P2P-device
        Band 1:
                Capabilities: 0x19ef
                        RX LDPC
                        HT20/HT40
                        SM Power Save disabled
                        RX HT20 SGI
                        RX HT40 SGI
                        TX STBC
                        RX STBC 1-stream
                        Max AMSDU length: 7935 bytes
                        DSSS/CCK HT40
                Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
                Minimum RX AMPDU time spacing: 8 usec (0x06)
                HT TX/RX MCS rate indexes supported: 0-15
                VHT Capabilities (0x339959b2):
                        Max MPDU length: 11454
                        Supported Channel Width: neither 160 nor 80+80
                        RX LDPC
                        short GI (80 MHz)
                        TX STBC
                        SU Beamformer
                        SU Beamformee
                        MU Beamformer
                        MU Beamformee
                        RX antenna pattern consistency
                        TX antenna pattern consistency
                VHT RX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT RX highest supported: 0 Mbps
                VHT TX MCS set:
                        1 streams: MCS 0-9
                        2 streams: MCS 0-9
                        3 streams: not supported
                        4 streams: not supported
                        5 streams: not supported
                        6 streams: not supported
                        7 streams: not supported
                        8 streams: not supported
                VHT TX highest supported: 0 Mbps
                VHT extended NSS: not supported
                Frequencies:
                        * 2412.0 MHz [1] (20.0 dBm)
                        * 2417.0 MHz [2] (20.0 dBm)
                        * 2422.0 MHz [3] (20.0 dBm)
                        * 2427.0 MHz [4] (20.0 dBm)
                        * 2432.0 MHz [5] (20.0 dBm)
                        * 2437.0 MHz [6] (20.0 dBm)
                        * 2442.0 MHz [7] (20.0 dBm)
                        * 2447.0 MHz [8] (20.0 dBm)
                        * 2452.0 MHz [9] (20.0 dBm)
                        * 2457.0 MHz [10] (20.0 dBm)
                        * 2462.0 MHz [11] (20.0 dBm)
                        * 2467.0 MHz [12] (20.0 dBm)
                        * 2472.0 MHz [13] (20.0 dBm)
                        * 2484.0 MHz [14] (disabled)
        valid interface combinations:
                 * #{ managed } <= 16, #{ AP, mesh point } <= 16, #{ IBSS } <= 1,
                   total <= 16, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }

        HT Capability overrides:
                 * MCS: ff ff ff ff ff ff ff ff ff ff
                 * maximum A-MSDU length
                 * supported channel width
                 * short GI for 40 MHz
                 * max A-MPDU length exponent
                 * min MPDU start spacing
        max # scan plans: 1
        max scan plan interval: -1
        max scan plan iterations: 0
        Maximum associated stations in AP mode: 32
        Supported extended features:
                * [ VHT_IBSS ]: VHT-IBSS
                * [ RRM ]: RRM
                * [ SET_SCAN_DWELL ]: scan dwell setting
                * [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
                * [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
                * [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
                * [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
                * [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
                * [ AQL ]: Airtime Queue Limits (AQL)
                * [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
                * [ DEL_IBSS_STA ]: deletion of IBSS station support
                * [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
                * [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
                * [ POWERED_ADDR_CHANGE ]: can change MAC address while up

Klingon · February 27, 2026, 6:44am

Result of scanning:

Around my area, scanning with my laptop/mobile I find many 5 Ghz. SSIDs.
No matter if I put 'auto' in channel selection or a fixed channel, always same result.
